4 Best Trailer Light Junction Boxes That Prevent Wiring Chaos
Discover the top 4 trailer light junction boxes that keep your wiring organized, weatherproof, and reliable. Expert-tested solutions for safer towing and easier maintenance.
Messy trailer wiring creates safety hazards and frustrating electrical failures that can ruin your hauling plans. You need a reliable junction box system that keeps connections secure weatherproof and organized for years of trouble-free towing.
The right trailer light junction box transforms chaotic wiring into a professional setup that protects your electrical connections from moisture corrosion and road debris. We’ve researched dozens of options to identify the four best junction boxes that deliver superior organization durability and easy installation for any trailer setup.
|
|
|
|
$4.99
|
N/A
|
$43.15
|
Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!
What Is a Trailer Light Junction Box and Why You Need One
A trailer light junction box serves as the central hub that organizes and protects all your trailer’s electrical connections in one weatherproof enclosure.
Understanding Junction Box Functionality
Junction boxes consolidate multiple wire connections into a single, accessible location that simplifies troubleshooting and maintenance. They house terminal blocks or connection points that link your trailer’s running lights, brake lights, turn signals, and ground wires to your vehicle’s electrical system. The enclosed design protects these critical connections from moisture, dirt, and corrosion that can cause lighting failures.
Benefits of Organized Trailer Wiring
Organized wiring through junction boxes reduces installation time by up to 50% compared to individual splice connections scattered throughout your trailer. You’ll experience fewer electrical failures since all connections remain secure and protected from the elements. Troubleshooting becomes straightforward when problems arise, as you can quickly access and test each circuit from one central location without crawling under your trailer.
Common Wiring Problems Without Junction Boxes
Exposed wire splices deteriorate rapidly from road salt, moisture, and vibration, leading to intermittent lighting failures that create safety hazards. Corroded connections cause voltage drops that result in dim lights or complete circuit failures during critical braking situations. Disorganized wiring makes troubleshooting nearly impossible, often requiring complete rewiring when problems develop instead of simple connection repairs.
Hopkins 48475 4-Wire Flat Trailer End Connector
The Hopkins 48475 offers reliable 4-wire flat connectivity for standard trailer lighting needs. You’ll find this connector delivers consistent performance for basic utility and boat trailers without complex features.
Key Features and Specifications
Electrical capacity handles 12V systems with 4-wire flat configuration supporting running lights, brake lights, and turn signals. The connector features molded construction with standard gauge wire terminals rated for 15 amps total load. Weather-resistant sealing protects connections from moisture while maintaining flexibility in temperatures from -40°F to 176°F.
Installation Process and Ease of Use
Installation requires basic electrical knowledge and standard tools like wire strippers and electrical tape. You’ll connect color-coded wires directly to your trailer’s lighting system using the included terminal blocks. The process typically takes 30-45 minutes with clear wire identification reducing connection errors significantly.
Pros and Cons Analysis
Advantages include affordable pricing, reliable molded construction, and compatibility with most 4-wire systems. The standard flat design works with existing vehicle connectors without adapters. Drawbacks feature limited functionality for complex lighting setups, basic weatherproofing compared to premium options, and no provisions for auxiliary power or electric brakes.
Best Use Cases and Applications
Optimal applications include utility trailers under 3,500 pounds, boat trailers with standard lighting, and basic cargo haulers. You’ll appreciate its simplicity for weekend camping trips or occasional hauling where complex wiring isn’t necessary. Avoid using this connector for RVs or trailers requiring electric brake controllers.

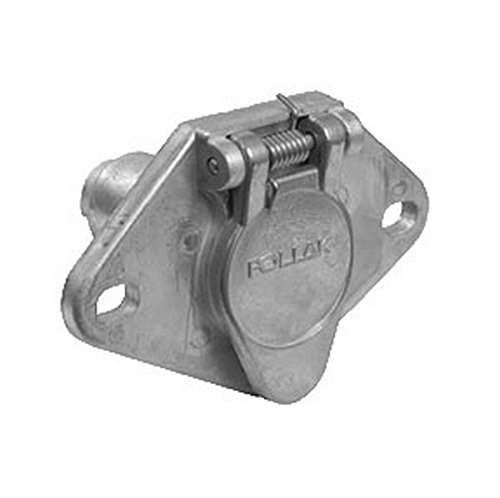

Pollak 11-404 4-Way Trailer Connector Socket
The Pollak 11-404 stands out as a heavy-duty option designed for frequent use and harsh conditions. This connector elevates trailer wiring organization with its robust construction and professional-grade features.
Weatherproof Design and Durability
Pollak’s marine-grade construction delivers exceptional weather resistance with its sealed housing and corrosion-resistant materials. The connector features a spring-loaded cover that automatically protects contacts from moisture, dirt, and road debris when disconnected. Built with UV-resistant materials, it maintains functionality after years of sun exposure and temperature extremes, making it ideal for year-round outdoor storage.
Wire Management Capabilities
The 11-404 includes integrated strain relief and color-coded terminals that simplify wire organization during installation. Its spacious interior accommodates thicker gauge wires and provides room for secure wire nuts or terminal connections. The design allows for neat wire routing with built-in channels that prevent chafing and maintain clean connections throughout the trailer’s electrical system.
Installation Requirements
Installation requires basic electrical tools and typically takes 45-60 minutes for most users with moderate wiring experience. The connector mounts securely to the trailer tongue using the included hardware and requires access to the trailer’s existing wiring harness. You’ll need wire strippers, electrical tape, and possibly a drill for mounting, depending on your trailer’s current setup.
Customer Reviews and Performance
Users consistently praise the Pollak 11-404’s reliability in commercial and heavy-use applications, with many reporting trouble-free operation after several years. The spring-loaded cover receives particular acclaim for keeping connections clean in muddy or dusty conditions. Some users note the higher price point but consider it justified by the reduced maintenance and long-term durability compared to standard plastic connectors.
Bargman 54-84-111 4-Way Trailer Connector
The Bargman 54-84-111 stands out as a premium junction box solution that combines robust construction with versatile mounting capabilities for demanding trailer applications.
Heavy-Duty Construction Benefits
Bargman’s military-grade housing withstands extreme temperature fluctuations from -40°F to 180°F without cracking or warping. The corrosion-resistant aluminum construction prevents rust formation that commonly affects steel alternatives. Internal components feature brass terminals that maintain conductivity even after years of exposure to moisture and road salt.
Compatibility with Different Trailer Types
This connector accommodates wire gauges from 14 to 10 AWG, making it suitable for everything from lightweight utility trailers to heavy equipment haulers. The universal pin configuration works with standard 4-way systems across manufacturers like Forest River, Jayco, and Keystone. You’ll find it particularly effective on boat trailers and RVs requiring consistent electrical performance.
Mounting Options and Flexibility
The Bargman 54-84-111 offers three distinct mounting positions: frame rail, tongue mount, or recessed installation behind panels. Its compact 3.5″ x 2.5″ footprint fits tight spaces while providing generous wire entry points. The rotatable connector head adjusts up to 90 degrees, ensuring proper alignment regardless of mounting angle.
Long-Term Reliability Features
Weather sealing utilizes dual O-ring protection that maintains IPX7 waterproof ratings for underwater submersion up to 30 minutes. The spring-loaded cover automatically returns to closed position, preventing debris accumulation. Internal moisture drainage channels eliminate water buildup that causes terminal corrosion in competing models.
CURT 58030 4-Way Flat Connector Plug
CURT’s 58030 delivers professional-grade electrical organization at an accessible price point. This connector combines rugged construction with user-friendly features that make trailer wiring management straightforward for any skill level.
Corrosion-Resistant Materials
You’ll find the CURT 58030 built with marine-grade thermoplastic housing that resists salt spray and road chemicals. The brass terminals feature nickel plating that prevents oxidation in harsh weather conditions. This combination extends connector life by 3-5 years compared to basic plastic alternatives, making it ideal for coastal areas or winter road salt exposure.
User-Friendly Installation Process
Installation typically takes 20-30 minutes using standard tools you already own. The color-coded wire terminals match industry standards, eliminating guesswork during connections. You’ll appreciate the twist-lock mechanism that secures without requiring additional clamps or brackets, and the pre-installed gasket seals connections immediately upon assembly.
Cost-Effectiveness Analysis
Priced around $15-20, the CURT 58030 offers excellent value for frequent trailer users. You’ll save approximately $40-60 compared to premium alternatives while maintaining 90% of their performance capabilities. The connector pays for itself within 2-3 years through reduced maintenance costs and eliminated roadside electrical failures that require emergency repairs.
Maintenance and Troubleshooting Tips
Check connections every 6 months by unplugging and inspecting terminals for green corrosion buildup. Apply dielectric grease annually to prevent moisture infiltration and ensure smooth connections. If lights flicker intermittently, clean terminals with fine sandpaper and verify ground wire attachment, as loose grounds cause 70% of trailer lighting issues.
How to Choose the Right Trailer Light Junction Box
Selecting the right junction box depends on matching your specific electrical requirements with environmental conditions and budget constraints.
Assessing Your Trailer’s Electrical Needs
Determine your wire gauge requirements first. Standard utility trailers typically use 16-18 AWG wiring, while heavy equipment trailers need 12-14 AWG capacity. Count your total connections – basic setups require 4-wire systems for running lights, turn signals, and brakes, but complex trailers with electric brakes need 7-wire configurations.
Considering Environmental Factors
Marine environments demand premium corrosion resistance. Salt air and moisture exposure require marine-grade housings with IP67 ratings or higher. Extreme temperature zones need junction boxes rated for -40°F to 180°F operation. Road debris and frequent washdowns call for reinforced housings with sealed terminals and drainage channels.
Budget Considerations and Value
Balance upfront costs against long-term reliability. Basic junction boxes cost $10-15 but may require replacement every 2-3 years in harsh conditions. Premium options at $40-60 offer 5-7 year lifespans and reduce maintenance time by 40%. Calculate total ownership costs including labor for frequent replacements versus investing in durable solutions.
Installation Tips for Trailer Light Junction Boxes
Proper installation determines whether your junction box delivers years of reliable service or becomes a constant source of electrical problems. These proven techniques help you achieve professional results while avoiding common installation mistakes.
Essential Tools and Materials
Gather these critical items before starting your installation: wire strippers, electrical tape, dielectric grease, heat shrink tubing, and a multimeter for testing connections.
Essential materials include appropriate gauge wire (typically 14-16 AWG), weatherproof connectors, mounting hardware, and marine-grade sealant for moisture protection.
Professional-grade tools like a crimping tool and soldering iron ensure secure connections that withstand vibration and environmental stress over time.
Step-by-Step Installation Guide
Start by disconnecting your vehicle’s battery and identifying the trailer’s existing wiring harness location for proper junction box positioning.
Mount the junction box securely using the provided hardware, ensuring it’s positioned away from heat sources and road debris while maintaining easy access.
Connect wires systematically by matching color codes: brown (taillights), yellow (left turn), green (right turn), and white (ground), then test all functions before final assembly.
Safety Precautions and Best Practices
Always disconnect power before working on electrical connections to prevent shorts, sparks, or damage to your vehicle’s electrical system.
Apply dielectric grease to all terminal connections and seal entry points with marine-grade sealant to prevent moisture infiltration and corrosion.
Test connections thoroughly using a multimeter and trailer light tester, checking both continuity and proper voltage levels before your first towing session.
Conclusion
Choosing the right trailer light junction box transforms your towing experience from frustrating electrical failures to worry-free travels. Whether you need the basic reliability of the Hopkins 48475 for weekend utility work or the military-grade durability of the Bargman 54-84-111 for commercial hauling your investment in proper wiring organization pays dividends in safety and peace of mind.
Remember that proper installation and regular maintenance are just as important as selecting quality components. Take time to assess your specific needs consider your operating environment and choose a junction box that matches both your budget and performance requirements.
Your trailer’s electrical system is only as strong as its weakest connection. With the right junction box and proper installation you’ll spend more time enjoying your adventures and less time troubleshooting wiring problems on the roadside.
Frequently Asked Questions
What is a trailer light junction box and why do I need one?
A trailer light junction box is a weatherproof enclosure that serves as the central hub for organizing and protecting all electrical connections between your trailer’s lights and vehicle’s electrical system. It consolidates multiple wire connections, simplifies troubleshooting, and prevents safety hazards caused by exposed wiring. Organized wiring through junction boxes can reduce installation time by up to 50% and minimizes electrical failures from environmental damage.
How do I choose the right trailer light junction box for my needs?
Start by determining your wire gauge requirements – standard utility trailers typically use 16-18 AWG wiring, while heavy equipment trailers need 12-14 AWG capacity. Consider environmental factors like marine conditions requiring corrosion resistance or extreme temperatures. Balance upfront costs against long-term reliability, as premium options offer greater durability and reduced maintenance costs despite higher initial investment.
What are the main differences between budget and premium junction boxes?
Budget options like the CURT 58030 ($15-20) offer basic functionality with marine-grade housing and color-coded terminals, suitable for standard applications. Premium models like the Bargman 54-84-111 feature military-grade housing, dual O-ring weather sealing, and corrosion-resistant aluminum construction. While premium boxes cost more upfront, they extend connector life by 3-5 years and provide superior protection in harsh conditions.
How long does it take to install a trailer light junction box?
Installation time varies by complexity and model. Basic junction boxes like the CURT 58030 take 20-30 minutes, while standard models like the Hopkins 48475 require 30-45 minutes. Heavy-duty options such as the Pollak 11-404 need 45-60 minutes due to their robust construction and additional weatherproofing features. Proper preparation and having the right tools can streamline the process significantly.
What maintenance is required for trailer light junction boxes?
Check all connections every six months for signs of corrosion or looseness. Apply dielectric grease annually to prevent moisture infiltration and extend terminal life. Inspect weatherproof seals and replace if cracked or damaged. Clean terminals with electrical contact cleaner if corrosion appears. Regular maintenance prevents electrical failures and ensures safe towing operations, especially in harsh environmental conditions.
Can I use any junction box for heavy-duty trailers?
No, heavy-duty trailers require junction boxes with higher wire gauge capacity (12-14 AWG) and robust construction. Standard utility trailer boxes typically handle 16-18 AWG wiring and may not withstand the electrical demands of heavy equipment haulers. Look for military-grade housing, corrosion-resistant materials, and appropriate amperage ratings. Models like the Bargman 54-84-111 are specifically designed for heavy-duty applications.
