7 Best Sprayer Nozzle Charts for Selecting Correct Tips That Save Money

Efficiency in the field begins long before the pump is turned on or the tractor leaves the barn. Choosing the wrong nozzle tip leads to uneven coverage, expensive chemical waste, and potential crop damage from over-application. Mastering these seven essential nozzle charts ensures that every drop of liquid hits its target with the intended droplet size and volume.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

TeeJet Broadcast Spray Nozzle Selection Guide

TeeJet remains the industry leader for a reason, offering a selection guide that serves as the foundation for most modern spraying operations. Their charts are meticulously organized by nozzle type, ranging from the standard Extended Range (XR) flat fans to the sophisticated AIXR Air Induction tips. For a hobby farmer looking for a reliable, “do-it-all” starting point, the TeeJet catalog provides the clearest path to understanding how pressure affects flow rates.

The beauty of the TeeJet guide lies in its color-coded ISO standards, which allow for quick identification of tip sizes at a glance. By cross-referencing your desired speed in miles per hour with your target gallons per acre, the chart reveals exactly which color-coded tip is required. This eliminates the guesswork that often leads to under-applying fertilizer or over-applying expensive herbicides.

This guide is the definitive choice for those who value tradition and widespread availability. If the local farm supply store is the primary source for parts, these are likely the tips on the shelf. Choosing TeeJet means choosing a system where replacement parts and compatibility are never an issue, making it the perfect standard for a well-maintained small acreage.

Hypro SprayTip Application Calibration Chart

Hypro specializes in tips that prioritize drift management and precision, making their calibration charts essential for those spraying near sensitive boundaries or garden plots. Their charts often feature a distinct focus on the Guardian and Ultra Lo-Drift series, which are designed to produce larger, more stable droplets. This focus helps operators maintain control even when the wind starts to pick up mid-morning.

The Hypro chart is particularly useful because it breaks down droplet size categories—from Very Fine to Ultra Coarse—directly alongside flow rate data. Understanding this relationship is crucial for hobby farmers who may be switching between a contact herbicide that needs fine coverage and a systemic fungicide that requires larger droplets. It provides a visual representation of how changing your PSI will shift your spray pattern’s effectiveness.

For the farmer who prioritizes precision and environmental stewardship, the Hypro chart is an indispensable tool. It is the right choice for anyone operating in areas where chemical drift onto a neighbor’s property or a sensitive water source is a constant concern. Use this chart to dial in a setup that balances effective coverage with responsible application.

Greenleaf TurboDrop Nozzle Sizing Reference

Greenleaf is famous for the TurboDrop, a two-piece nozzle system that utilizes venturi air induction to create air-filled droplets. Their sizing reference charts are unique because they account for the two-stage pressure drop within the nozzle itself. This complexity requires a specific chart that doesn’t always align with standard one-piece tips, making the official Greenleaf reference a must-have for these specialized components.

These charts are excellent for high-pressure applications where traditional tips would create too much mist. The TurboDrop reference allows you to find a sweet spot where you can maintain high pressure for better penetration into thick foliage without losing half your product to the wind. It specifically highlights the exit tip size versus the venture orifice size, ensuring the internal physics of the nozzle work correctly.

If your spraying schedule is often dictated by difficult weather or dense canopy crops, Greenleaf is the solution. This chart is for the operator who wants the most advanced air-induction technology available and is willing to spend a moment longer on the math to get superior results. It turns a standard sprayer into a high-performance machine capable of professional-grade accuracy.

Wilger ComboJet Tip Selection Reference Chart

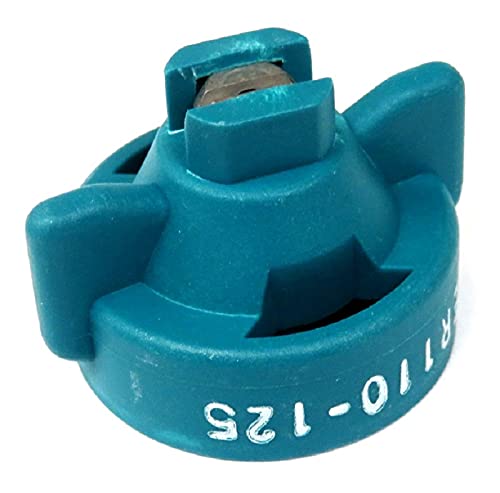

Wilger has revolutionized the way many small-scale farmers think about tip maintenance with their ComboJet system, which integrates the tip and cap into a single unit. Their selection chart focuses heavily on the “all-in-one” convenience, showcasing how their various series (like the ER, SR, and MR) perform under different pulse-width modulation (PWM) settings. Even if you aren’t using PWM technology, the chart provides a clear look at how to achieve consistent coverage across a wide range of speeds.

The ComboJet chart is particularly praised for its “Droplet Complexity” icons, which help users visualize the spray quality without getting bogged down in raw data. It categorizes tips by their ability to handle different chemical types, such as pre-emergence versus post-emergence applications. This level of guidance is incredibly helpful for a part-time farmer who might only spray a few times a year and needs a quick refresher.

This system is perfect for the farmer who values speed and simplicity during the setup process. Because the tips snap in and out without tools or loose gaskets, the chart acts as a quick-change menu for the field. If you hate fumbling with tiny parts in the mud, the Wilger chart and their corresponding tips are the smartest investment for your equipment.

Albuz Ceramic Nozzle Flow Rate Reference Table

When it comes to longevity, Albuz is the gold standard because they utilize pink ceramic orifices rather than plastic or stainless steel. Their flow rate reference tables are vital because ceramic does not wear down at the same rate as other materials, meaning the data on the chart remains accurate for hundreds of more acres. While a plastic tip might go out of spec after one season, an Albuz tip tracked via their chart will stay true to its flow rate for years.

The Albuz table is straightforward and focuses on the ISO color-coding system, but it adds specific technical details regarding wear resistance and chemical compatibility. It is particularly useful when applying abrasive chemicals like wettable powders or liquid fertilizers that act like sandpaper on cheaper nozzles. The chart provides the confidence that the 20 PSI you set today will result in the same output next season.

Choose Albuz if you are a “buy it once” type of farmer who wants to eliminate the need for frequent tip replacements. This reference table is for the meticulous operator who wants to calibrate their sprayer once and know that the numbers will hold steady. It is the best choice for high-use applications where durability is the primary concern.

Lechler Agricultural Spray Nozzle Pocket Guide

The Lechler guide is a masterpiece of European engineering and organization, condensed into a format that is easy to keep in a tractor cab or a shop drawer. Their charts are exceptionally detailed, often providing information on “Vertical Coverage” and “Horizontal Distribution” that other manufacturers gloss over. This makes the Lechler guide particularly useful for specialty crops or targeted orchard spraying where the angle of the spray is just as important as the volume.

Lechler’s focus on the IDK and ID series air-induction nozzles is reflected in their charts’ clear pressure ranges. They highlight the “Optimum Pressure Range” for each tip, which prevents users from running a nozzle too high or too low for its intended design. This guidance helps prevent the common mistake of pushing a low-pressure nozzle into a high-pressure range, which destroys the spray pattern.

This guide is the ideal companion for the technical-minded hobby farmer who wants to understand the “why” behind their spray pattern. It is right for you if you have a varied landscape with different crop heights and need a nozzle that can adapt to different boom heights. Lechler provides the data necessary to ensure that every square inch of the field receives an identical dose.

Delavan AgSpray Nozzle Color Coding Standard

Delavan offers a no-nonsense approach to nozzle selection that is deeply rooted in the standard ISO color-code system. Their charts are often the easiest to read for those who are just starting out or who are retrofitting an older, basic sprayer. By focusing on the most common nozzle angles—typically 80 and 110 degrees—Delavan simplifies the selection process down to the essentials of flow and speed.

The Delavan chart is a great resource for identifying budget-friendly replacement tips that still meet strict performance standards. It provides a clear cross-reference for their ColorBrite series, making it simple to find a match for existing equipment without needing a degree in fluid dynamics. The simplicity of their layout reduces the risk of misreading a table and selecting the wrong gallon-per-minute (GPM) output.

For the hobby farmer on a budget or someone managing a simple pasture setup, Delavan is the go-to choice. Their charts provide exactly what is needed without unnecessary fluff, making them perfect for quick calibrations on a Saturday morning. If reliability and value are your top priorities, this is the chart you should keep taped to the side of your chemical cabinet.

How to Read a Sprayer Nozzle Chart Correctly

Reading a nozzle chart requires a systematic approach to ensure you are looking at the right variables for your specific setup. Start by identifying your target Gallons Per Acre (GPA), which is usually found on the label of the chemical you are applying. Once you have that number, find the column for the speed at which you intend to drive—usually between 3 and 6 mph for most small-scale tractors or ATVs.

Follow that speed column down until you find the GPA number that matches your target, then look across that row to find the required PSI (pressure) and the corresponding nozzle color. Always double-check the nozzle spacing at the top of the chart, as most charts assume 20-inch spacing between tips. If your boom has 15-inch or 30-inch spacing, the GPA numbers on the chart will not be accurate for your machine and will require a conversion factor.

It is also vital to note the droplet size icons often located near the PSI numbers. A nozzle might give you the correct GPA at 60 PSI, but it may also produce a “Fine” mist that will drift away in a light breeze. Look for a configuration that gives you your desired volume at a pressure that maintains a “Medium” or “Coarse” droplet for the best balance of coverage and safety.

Calculating Gallons Per Acre for Your Sprayer

While charts provide a starting point, calculating your actual Gallons Per Acre (GPA) in the field is the only way to account for pump wear and speedometer inaccuracies. The standard formula is: (GPM x 5940) / (MPH x W). In this equation, GPM is the gallons per minute coming out of a single nozzle, MPH is your ground speed, and W is the width between your nozzles in inches.

To find your GPM, run your sprayer at a set pressure and catch the output of one nozzle in a measuring pitcher for exactly one minute. Convert those ounces to gallons (ounces divided by 128) to get your GPM. For speed, mark out 100 feet and time how many seconds it takes to drive it at your spraying RPM; the formula (distance in feet x 0.68) / seconds will give you a very accurate MPH.

Plugging these real-world numbers into the formula ensures you aren’t relying on a “best-case scenario” from a printed chart. This step is often skipped by hobbyists, but it is the difference between a successful weed kill and a wasted afternoon. Precise calculation saves money by ensuring you buy only the chemical you need and apply it exactly as directed.

Testing Your Sprayer Nozzles for Worn Tips

Nozzles are wear items that slowly degrade over time, especially when using abrasive fertilizers or hard water. To test for wear, perform a “bucket test” by measuring the output of every nozzle on the boom simultaneously at a fixed pressure. If any single nozzle is outputting 10% more or less than the manufacturer’s rated flow on the chart, that tip is worn out and must be replaced.

Uneven output across the boom leads to “streaking” in the field, where some areas are over-applied and others are missed entirely. Never attempt to clean a clogged tip with a wire or a needle, as this will permanently damage the orifice and ruin the spray pattern. Use a soft-bristled nozzle brush or compressed air to clear obstructions, and if the pattern remains distorted, discard the tip immediately.

Establishing a routine to check your tips at the beginning of every season prevents costly mistakes before they happen. Replacing a full set of plastic tips costs a fraction of what a single tank of wasted chemical costs. Keep a few spare nozzles of the same color and type in the tractor toolbox so you can make a quick swap in the field without losing your calibration.

Proper nozzle selection and maintenance represent the highest return on investment for any small-scale spraying operation. By utilizing these charts and following a strict calibration routine, you ensure that your farm remains productive, your costs stay low, and your environmental impact is minimized. Successful spraying is not about the size of the equipment, but the precision of the application.
