6 Best Nozzle Tips for Spray Drift Control

You’ve been watching the weather for days, waiting for a calm morning to spray your pasture, but the wind just won’t quit. The weeds aren’t waiting, and neither is the spray window for your fungicide. This is a classic dilemma for anyone managing more than a garden plot: how do you get the job done right when conditions are less than perfect?

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Why Your Sprayer Nozzle Choice Matters in Wind

The single biggest factor in spray drift is droplet size. Think of it like throwing a handful of dust versus a handful of gravel into the wind. The dust goes everywhere, but the gravel falls right where you want it.

Standard flat-fan nozzles produce a wide range of droplet sizes, including a large number of very fine, fog-like particles. These "fines" are the ones that get carried away by the slightest breeze, ending up on your neighbor’s prize-winning tomatoes or in a nearby ditch. That’s wasted money and a potential environmental headache.

Drift-reduction nozzles work by minimizing those tiny, drift-prone droplets. They are engineered to produce a coarser, more uniform spray pattern. The droplets are heavier and have more momentum, allowing them to cut through the wind and hit their target. It’s not about eliminating wind, it’s about making your spray resilient to it.

TeeJet AIXR Air Induction for Superior Control

When you need a great all-arounder, the TeeJet AIXR is a fantastic choice. It’s an air-induction nozzle, which means it has a tiny hole that draws air into the nozzle body. This air mixes with the spray solution, creating larger, air-filled droplets that are heavy enough to resist drift but still "pop" on impact for good coverage.

The AIXR provides a great balance. It offers significantly better drift control than a standard flat fan without producing the super-coarse droplets of more extreme designs. This makes it versatile enough for both herbicides and fungicides in many situations.

If you could only have one drift-reduction tip on your sprayer, the AIXR would be a strong contender. It’s a reliable workhorse for managing moderate wind conditions without sacrificing too much coverage.

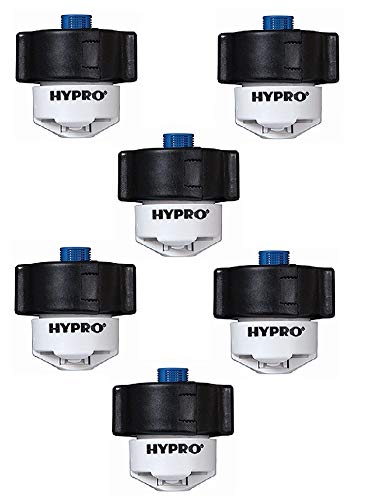

Hypro GuardianAIR for Coverage and Control

The Hypro GuardianAIR takes a slightly different approach to the problem. It’s also an air-induction nozzle, but it’s designed to provide superior coverage, especially on vertical targets or dense canopies. It produces a unique spray pattern that is slightly angled forward and backward from the nozzle.

This dual-angle pattern helps the spray hit the front, top, and back of the plant. For contact products like insecticides or fungicides that need to coat the entire plant, this can make a real difference in effectiveness. You get the drift control of an air-induction design and improved canopy penetration.

The tradeoff is that they can be a bit more expensive than a standard AIXR. But if you’re spraying anything where complete coverage is non-negotiable, like fighting blight on your potatoes or dealing with aphids in a thick alfalfa stand, the GuardianAIR is worth a serious look.

TeeJet TTI: Maximum Drift Control Nozzle

Sometimes, you just need to get a systemic herbicide down in windy conditions, and drift is your absolute number one concern. This is where the TeeJet TTI (Turbo TeeJet Induction) shines. It is designed for one thing: maximum drift control.

The TTI produces an extremely coarse to ultra-coarse droplet pattern. These are big, heavy droplets that fall exactly where you point them, even in a stiff breeze. This makes them perfect for applying products like glyphosate or 2,4-D, where the chemical just needs to get on the plant and doesn’t require fine-mist coverage to work.

However, this is not a nozzle for contact products. Trying to use a TTI for a contact fungicide or insecticide would be a mistake, as the huge droplets would just roll off the leaves, providing poor coverage. Think of the TTI as a specialized tool for those tough, windy days when you’re applying a burndown or pasture herbicide.

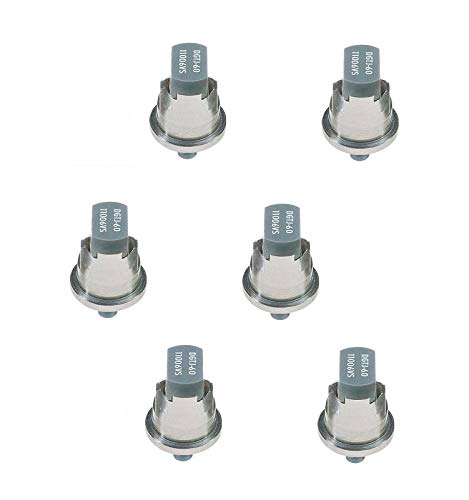

TeeJet DG Drift Guard: A Time-Tested Classic

Before air induction nozzles became common, the TeeJet DG (Drift Guard) was the go-to for reducing drift. It’s a simpler design that uses a pre-orifice to meter the flow, which helps reduce the formation of fine droplets at the final exit orifice. It doesn’t use air, but it still provides a noticeable improvement over standard flat fans.

The DG is a reliable, cost-effective option. It offers good drift reduction without the higher price tag of some air-induction models. It’s a proven design that has been trusted by farmers for decades for a reason—it works.

While it may not offer the extreme drift control of a TTI or the coverage of a GuardianAIR, the DG is a significant step up from basic nozzles. It’s an excellent budget-friendly choice for someone looking to improve their spray application without breaking the bank.

Greenleaf TurboDrop XL: Venturi-Style Tip

The Greenleaf TurboDrop XL (TDXL) is another excellent air-induction nozzle that uses a venturi design to create its air-filled droplets. What sets it apart is its incredibly wide operating pressure range, typically from 20 to 120 PSI.

This wide range gives you tremendous flexibility. You can run it at lower pressures for maximum drift control when applying herbicides, or crank the pressure up to get finer droplets (while still maintaining good drift control) for better coverage with fungicides. This versatility means you might not have to change nozzles as often.

The TurboDrop is known for producing a very consistent and uniform pattern across its pressure range. It’s a premium nozzle, but its performance and flexibility make it a favorite for those who want one tip that can handle a variety of jobs effectively.

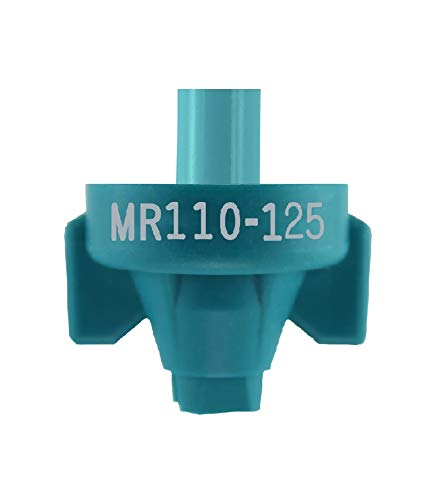

Wilger MR110: Versatility for PWM Systems

You might see the Wilger MR110 mentioned in the context of high-tech Pulse Width Modulation (PWM) sprayers, but don’t let that scare you off. This nozzle is an outstanding performer on conventional spray systems, too. Its key feature is a massive operating pressure range, even wider than the TurboDrop.

This makes the MR110 incredibly forgiving. If your ground speed varies a bit while going up and down hills, the nozzle maintains a consistent droplet size and pattern, which isn’t true for all tips. This means more consistent application across your entire field.

Think of this as a "buy it once" option. It provides top-tier drift control and performance on your current sprayer, but it’s also ready for the future if you ever upgrade to a more advanced rate controller. It’s a versatile, professional-grade tool.

Beyond the Nozzle: Pressure and Boom Height

Even the best nozzle in the world won’t help you if you ignore the other two critical factors: pressure and boom height. These are just as important as your nozzle choice, and they don’t cost a thing to adjust.

First, watch your pressure. Higher pressure creates smaller droplets. Many drift-reduction nozzles are designed to work best in the 30-60 PSI range. Cranking your pressure up to 90 PSI to "blast it on" will defeat the purpose of the nozzle and create more driftable fines. Always operate within the manufacturer’s recommended pressure range for your specific tip.

Second, keep your boom low. The less time a droplet spends falling through the air, the less time the wind has to blow it off course. The ideal height is just high enough to get a 100% overlap between nozzles (where the edge of one spray pattern meets the center of the next). For 110-degree nozzles on 20-inch spacing, this is often around 20 inches above the target canopy. A higher boom is a major cause of drift, period.

Choosing the right nozzle is a huge step toward responsible and effective spraying. But remember, it’s a piece of a system. By matching a quality drift-reduction nozzle with the correct pressure and a low boom height, you take control of your application, ensuring your product hits the target, does its job, and stays right where it belongs.

Frequently Asked Questions (FAQs)

What is an air induction nozzle for spray drift control?

An air induction nozzle uses an internal venturi to draw air into the fluid stream, producing larger, air-filled droplets that resist wind drift. These nozzles typically produce Coarse to Ultra Coarse droplets, which significantly cut down on fines under 105 microns. When the air-filled bubbles hit the leaf surface, they shatter to provide better surface coverage than standard solid droplets. Growers frequently choose models like the TeeJet AIXR or Greenleaf AirMix for systemic herbicide applications in breezy conditions.

What droplet size is best for spray drift control?

Droplet sizes classified as Coarse (236 to 340 microns) to Very Coarse (341 to 403 microns) provide the best balance between drift reduction and leaf coverage. Droplets smaller than 150 microns are prone to airborne drift and rapid evaporation before reaching the target. Extremely coarse droplets prevent drift even better, but they can bounce off narrow leaves or reduce coverage for contact fungicides. Check your pesticide label’s ASABE S572 droplet spectrum requirement before selecting your final tip size.

How do I calibrate nozzle tips for spray drift control on a field sprayer?

Calibrate drift control nozzles by measuring the fluid output of each tip in ounces for one minute at your operating pressure using a graduated catch cup. Compare the measured volume against the manufacturer flow chart to verify output within a five percent margin. Replace any nozzle that deviates by more than ten percent from the target rating. After confirming tip flow, calculate ground speed and field gallons per acre to ensure the system operates within the tip’s recommended drift-reduction pressure window.

How do I clean clogged spray drift control nozzles without damaging the orifice?

Clean clogged drift control nozzles by soaking the tips in warm, soapy water and scrubbing them with a soft nylon nozzle brush. Never use metal wire, pocket knives, or welding tip cleaners, because scratching the precision metering orifice alters spray pattern and droplet size. If deposits remain after scrubbing, soak the plastic or ceramic tips in a tank-cleaning solvent or white vinegar for fifteen minutes. Blow compressed air through the nozzle tip from the outside facing inward to dislodge stubborn debris.

Are air induction nozzles better than extended range flat fan nozzles for drift control?

Flat fan air induction nozzles control spray drift significantly better than extended range flat fan nozzles by reducing drift-prone fine droplets by up to ninety percent. Extended range nozzles operate from 15 to 60 PSI but still produce small fines in winds over eight miles per hour. Air induction tips maintain larger droplets even at higher pressures up to 90 PSI. Choose air induction for systemic herbicides, and reserve extended range tips for contact products requiring denser coverage.

How much do drift reduction nozzle tips cost per nozzle?

Drift reduction nozzle tips typically cost between six dollars and fifteen dollars per tip for polymer models, while ceramic versions cost twenty to forty dollars each. Polymer tips, such as standard poly air-induction models, are economical for annual row-crop spraying on moderate acreages. Ceramic tips carry a higher initial investment but last three to five times longer when applying abrasive chemicals like wettable powders. A complete 90-foot boom set with 54 nozzle bodies generally costs between $350 and $1,200 depending on the tip material.

Why is my drift control nozzle leaving streaks across the crop canopy?

Streaking occurs when the spray boom is set too low, the operating pressure is insufficient, or droplet sizes are too coarse to achieve necessary pattern overlap. Drift reduction nozzles often require at least fifty percent spray pattern overlap between adjacent tips. If your boom height drops below 20 to 24 inches for 110-degree nozzles, fan edges fail to blend properly. Raise the boom slightly, increase pressure within the nozzle’s certified drift-reduction range, or switch to a dual-fan drift tip to improve canopy penetration.

Are drift reduction spray nozzles legally required when applying dicamba herbicides?

Federal pesticide labels legally mandate specific drift reduction spray nozzles producing Very Coarse to Ultra Coarse droplets when applying over-the-top dicamba formulations. Environmental Protection Agency labels for products like XtendiMax and Engenia require applicators to use designated nozzle models, such as the TeeJet TTI11004, at approved pressure ranges. Using an unapproved tip violates federal law under the Federal Insecticide, Fungicide, and Rodenticide Act. Always verify current EPA product bulletin lists before filling the sprayer, as certified nozzle models are subject to annual regulatory updates.
