6 Best Drop Rod Latches For Large Gates That Prevent Gate Sag
Secure large gates from sagging with a drop rod latch. We review the 6 best options for providing crucial ground support and preventing costly hinge damage.
There’s nothing more frustrating than a big gate that drags the ground. You have to lift, shove, and wrestle it open and shut, and every year it gets worse. That familiar scrape of metal on gravel is the sound of a gate slowly destroying itself and its hinges. The good news is that the problem usually isn’t the gate itself, but how it’s being supported when closed.
Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!
Why a Drop Rod is Key to Preventing Gate Sag
A large gate, especially one over 10 or 12 feet, is a massive lever. All its weight constantly pulls down and away from the hinge post. Over time, this force will make the gate sag, pull the posts out of plumb, and wear out the hinges.
A drop rod—also called a drop pin or cane bolt—solves this problem elegantly. When you close the gate and drop the pin into the ground, you create a second support point at the far end. The rod, not the hinges, now carries the gate’s weight.
Think of it as a temporary gate post that you engage every time you close the gate. This single action takes all the stress off your hinges and posts, keeping everything aligned and operating smoothly for years. It’s the single most important piece of hardware for ensuring the longevity of a large gate.
SpeeCo Heavy-Duty Drop Pin for Farm Gates
If you’re looking for the classic, no-frills solution for a standard tube gate, this is it. The SpeeCo drop pin is a workhorse. It’s just a thick, galvanized steel rod held by a couple of simple brackets that you bolt or clamp onto your gate’s vertical tubes.
There’s nothing fancy here, and that’s the point. It’s brutally effective and built to withstand abuse from livestock or equipment. Installation is straightforward, though you may need to drill a couple of holes through your gate’s tubing. It’s designed for function over form.
The main tradeoff is a lack of features. It isn’t lockable, and the simple handle can be a bit clunky. But for a pasture or field gate where reliability and strength are the only things that matter, this is the go-to choice. It’s cheap, widely available, and it just works.
Tarter Gate Cane Bolt: A Simple, Tough Solution
Tarter is another huge name in farm equipment, and their cane bolt is a direct competitor to the SpeeCo model. It’s built on the same principle: a heavy-duty galvanized rod and simple, strong brackets. You’ll find these at nearly any farm supply store.
The design is often tailored to fit perfectly with Tarter’s own line of tube gates, making installation incredibly simple if you have one. However, its universal design means it will clamp onto most round-tube farm gates without any issue. It’s another example of a product that prioritizes durability for a farm environment.
Like other basic drop pins, it’s not designed for security. Its purpose is purely structural—to hold the gate level and prevent sag. For a simple, tough, and easy-to-find solution, the Tarter cane bolt is an excellent and reliable option that won’t let you down.
D&D Lokk-Bolt: A Key-Lockable Security Option
Sometimes you need more than just structural support. For a main driveway gate or an entrance to a secure area, the D&D Lokk-Bolt provides an ingenious two-in-one solution. It functions as a robust drop bolt to prevent sag, but it also includes an integrated, key-lockable mechanism.
This design eliminates the need for a separate, clunky chain and padlock. You get the sag prevention your large gate needs, plus real security, all in one clean package. The bolt can be locked in both the down and up positions, which is a clever feature to prevent it from being tampered with.
The convenience comes at a higher price, and there are more moving parts compared to a simple steel pin. However, for a gate that needs to be both perfectly aligned and secure, the investment is well worth it. It’s a smart upgrade for any high-traffic or security-sensitive entrance.
National Hardware Cane Bolt for Wood & Metal Gates
Not all gates are made of round steel tubes. For wooden privacy gates or ornamental metal driveway gates, you need a different style of hardware. The National Hardware cane bolt is the kind of versatile option you’ll find in a good hardware store, designed for mounting on flat surfaces.
These bolts are often powder-coated black for a more finished appearance that complements decorative gates. The mounting brackets are simple plates with screw holes, making them easy to attach to a wooden 2×4 frame or a flat steel bar. They provide the same crucial sag prevention but with aesthetics in mind.
While perfectly suitable for most residential-style gates, they may not have the sheer heft of a dedicated agricultural drop pin. Be sure to choose a model with a thick, solid steel rod (at least 5/8" diameter) for any gate over 8 feet wide. It’s the perfect blend of function and form for gates around the home and main yard.

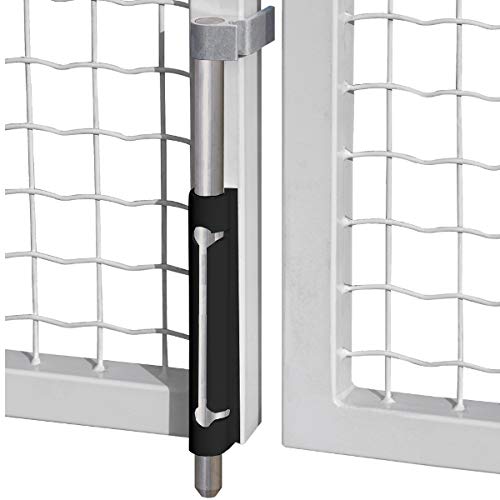

Locinox VSF Drop Bolt: The Premium Weld-On Choice
For a truly permanent, high-end gate installation, the Locinox VSF is in a class of its own. This isn’t a bolt-on solution; it’s a professional-grade, weld-on drop bolt designed for custom steel or aluminum gates. It represents a "buy it once, cry once" philosophy.
The construction is exceptional, often featuring hot-dip galvanizing for maximum corrosion resistance and internal components that ensure incredibly smooth operation. Everything about it is overbuilt for longevity. This is the type of hardware you choose when you are building a main entrance gate that you never want to think about again.
The need for welding makes it less accessible for a quick DIY project. But if you’re already hiring a fabricator or are comfortable welding yourself, the Locinox provides an unmatched level of quality and durability. It’s overkill for a pasture fence, but it’s the right choice for a legacy gate.
The Weld-On Drop Rod Kit for Custom Gate Builds
If you’re building your own gate from scratch, a weld-on drop rod kit offers maximum flexibility. These kits are not a complete product but rather a set of components—typically a few steel guide loops and a handle bracket. You supply your own steel rod.
The beauty of this approach is complete customization. You can choose the exact diameter and length of rod you need for your specific gate. Have a massive 20-foot gate on uneven ground? You can use a 1-inch solid steel rod that’s five feet long if you want. You weld the guide loops exactly where you need them for perfect alignment and ergonomics.
This is the path for the serious DIYer with a welder. It’s the most cost-effective way to get a truly heavy-duty, custom-fit solution for a non-standard gate. You get to build it precisely for your needs, ensuring it’s strong enough for whatever you throw at it.
Choosing Your Latch: Material and Length Guide
When selecting a drop rod, two factors matter most: the material it’s made from and the length of the rod.
First, consider the material.
- Galvanized Steel: This is the standard for farm use. The zinc coating provides excellent, long-lasting protection against rust and corrosion. It’s the best all-around choice for durability.
- Powder-Coated or Painted Steel: This offers good rust protection and a more finished look, making it ideal for ornamental or wooden gates. The downside is that scratches or chips in the coating can become entry points for rust.
- Plain Steel: While the cheapest option, it will rust quickly unless you keep it painted. It’s fine for a DIY weld-on kit where you plan to paint the entire gate anyway.
Second, get the length right. The rod needs to be long enough to operate comfortably without excessive bending over. More importantly, it must be long enough to sink at least 4-6 inches into the ground for a secure hold. If you have very soft soil or a deep frost line, a longer rod that can go deeper is even better. A longer rod also gives you more leverage, making it easier to drive into firm ground. Don’t skimp on length; it’s key to the rod’s effectiveness.
Ultimately, a drop rod is one of the wisest investments you can make for any large gate on your property. It’s not just a latch; it’s a fundamental piece of structural support that saves you from years of headaches. By taking the weight off your hinges, you ensure your gate will swing freely and easily for its entire life.
