6 Best Pigtail Connectors For Poultry House Lighting That Prevent Common Issues
Choosing the right pigtail connector is key for poultry house lighting. Discover 6 top models that prevent shorts, corrosion, and moisture damage.
You’ve spent hours running wire for your new coop lighting, only to have a light flicker out a few months later. Chasing down a bad connection in a dusty, cramped coop is a frustrating chore nobody has time for. The problem often isn’t the wire or the light itself, but the cheap, flimsy connector linking them together.
Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!
Why Coop Lighting Connectors Matter for Safety
The environment inside a chicken coop is uniquely hostile to electrical connections. You’re dealing with a constant combination of fine dust from feed and bedding, moisture from waterers and respiration, and corrosive ammonia from manure. This trifecta is a recipe for failure in standard, unsealed electrical connectors.
A poor connection doesn’t just mean a light goes out; it means resistance builds up. Resistance creates heat, and heat near dry bedding is a serious fire hazard. A quality, sealed connector isn’t a luxury—it’s the most critical safety component in your entire lighting system. It prevents the gradual corrosion that leads to flickering, failure, and dangerous overheating.
Think of it as cheap insurance. Spending a few extra dollars on the right pigtail connector saves you the headache of future repairs and provides genuine peace of mind. It’s the difference between a system you can trust for years and one that becomes a constant, nagging worry.
Deutsch DT Series: The Ultimate Sealed Connector
When you absolutely cannot afford a failure, the Deutsch DT series is the answer. These are the gold standard for sealed connectors, common in heavy equipment and automotive applications where vibration, dust, and water are constant threats. They are, without a doubt, overkill for some situations, but perfect for the main power feed into your coop.
What sets them apart is the robust design. Each pin is individually sealed with a silicone grommet, and a master silicone seal protects the entire connection interface when mated. The thermoplastic housing is tough, and the locking mechanism gives a firm, positive click, so you know it’s secure. You won’t be pulling this apart by accident.
The main tradeoff is the upfront investment. Deutsch connectors require a specific crimping tool for a proper, factory-grade connection. While you can get by with a lesser tool, it defeats the purpose of buying such a high-quality connector. This is the "buy once, cry once" option for critical connections you want to set and forget.
MUYI Weather Pack: Easy, Secure Crimp-On Style
Weather Pack style connectors, like those from MUYI, hit the sweet spot between performance and accessibility. They offer excellent environmental sealing that’s more than adequate for any coop, but they’re generally less expensive and use more common crimping tools than their Deutsch counterparts. They are a fantastic workhorse for connecting individual lights in a string.
The sealing mechanism is simple and effective. Each wire has a small silicone seal that gets pushed into the connector body, creating a tight barrier against moisture and dust. When the two halves of the connector are pushed together, a larger seal at the front completes the weatherproofing. They are a bit bulkier than other options, but their reliability is worth the space.
You’ll know you have a good connection by the distinct "click" when the locking tabs engage. This tactile feedback is reassuring, especially when you’re working in an awkward position. For most hobby farmers, a Weather Pack system provides 90% of the benefit of a premium connector at a fraction of the cost and complexity.
T-Tap Wire Connectors: Quick and Solderless Fix
Sometimes you just need to add a light to an existing run without cutting and splicing the main wire. This is where T-Tap connectors come in. They allow you to "bite" into an insulated wire to create a new connection point, which is incredibly convenient for quick additions or temporary setups.
However, this convenience comes with significant tradeoffs. T-Taps are not weatherproof. The point where the metal tab pierces the wire’s insulation is an open invitation for moisture and ammonia to begin corroding the copper. Over time, this connection will almost certainly fail in a damp coop environment. They are best used inside a sealed junction box or for temporary lighting, like a brooder heat lamp you only use for a few weeks a year.
Think of T-Taps as a calculated risk. They solve an immediate problem with minimal effort. But they are not a permanent, reliable solution for the core lighting that your flock depends on, especially for supplemental light in the winter months.
Nilight 2-Pin Quick Disconnect SAE Connector
The SAE connector is all about convenience. You’ve probably seen these simple, two-pin plugs on battery tenders or solar panels. Their primary advantage is the ability to connect and disconnect a circuit quickly and easily without any tools. This makes them ideal for any light that you need to move regularly.
Consider a light you bring into the coop for cleaning or a supplemental light you only use during the darkest winter months. An SAE pigtail allows you to unplug it, take it out, and store it without fuss. It simplifies maintenance and makes your system more flexible.
While many SAE connectors are advertised as "weather-resistant," they are not truly waterproof. The friction-fit design doesn’t typically include the silicone seals found in higher-end connectors. They are fine for use in a dry, protected area of the coop but shouldn’t be exposed directly to moisture or used where they might get splashed from a waterer.

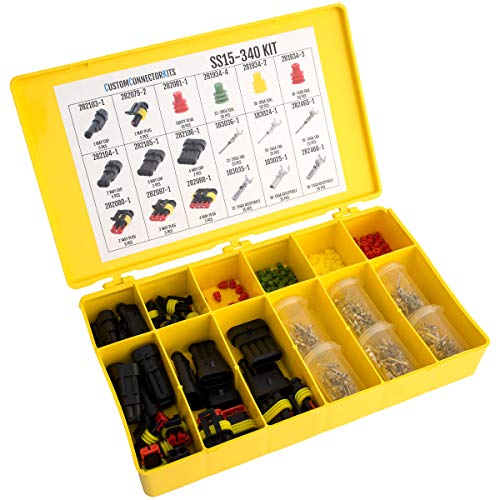

AMP Superseal: Superior Moisture & Dust Defense
AMP Superseal connectors are another top-tier option that competes directly with Deutsch. As the name implies, their strength is creating an exceptionally tight seal against the elements. They are particularly effective against the fine, powdery dust that is unavoidable in a poultry house and can work its way into lesser connectors.
The design features pre-installed wire seals and a housing that locks together with a satisfyingly secure feel. They are rated for high levels of moisture and dust ingress (IP67), meaning they can handle pretty much anything a coop environment can throw at them. They provide a professional-grade connection that ensures long-term reliability for your lighting system.
Choosing between an AMP Superseal and a Deutsch DT often comes down to availability and personal preference. Both are excellent choices for critical connections. The Superseal series can sometimes be found at a slightly lower price point, making it a compelling choice for farmers who demand high performance without the premium brand name cost.
Wirefy Heat Shrink Butt Connectors for DIY Pigtails
Sometimes, the best connector is the one you make yourself. Heat shrink butt connectors are a fantastic way to create permanent, waterproof splices. If you need to repair a wire or create a custom-length pigtail, this is the most reliable DIY method. It’s far superior to the old twist-and-tape method.
These connectors are essentially a metal crimp tube covered by a special heat shrink tubing. The inside of the tubing is lined with a heat-activated adhesive. After you crimp the wires, you gently heat the connector with a heat gun. The tubing shrinks for a tight fit, and the adhesive melts, flowing into every crevice to create a completely waterproof and strain-resistant seal.
This is the definitive way to fix a chewed wire or permanently join two lengths together. While it’s not a "quick disconnect," it creates a splice that is as strong and weather-resistant as an uncut wire. Having a kit of these on hand is essential for any farm toolkit.
Choosing Your Connector: Sealing, Gauge, and Amps
Picking the right connector isn’t about finding the single "best" one, but the right one for the job. You can boil the decision down to three key factors. Getting these right ensures a safe and reliable system.
First is sealing. How exposed will the connection be? A connector for an outdoor run light needs a top-tier seal (Deutsch, AMP Superseal). One inside the coop can use a good seal (Weather Pack). A connection inside a sealed junction box might not need a seal at all.
Second is wire gauge (AWG). Every connector is rated for a specific range of wire sizes. Using a 14 AWG wire with a connector designed for 20 AWG wire will result in a failed connection. Always match your connector to the wire you’re using.
Finally, consider the amperage (amps). Modern LED lights draw very little current, so this is less of a concern than with old incandescent bulbs. Still, you should check the amp rating of the connector, especially if you’re running a long string of lights on a single circuit. It’s a simple check that prevents overloading and ensures safety.
Ultimately, your coop’s lighting is only as reliable as its weakest connection. By choosing a pigtail connector that matches your coop’s environment and the specific job at hand, you’re not just buying a part. You’re investing in safety, reliability, and one less thing to fix on a busy weekend.
