6 Vineyard Post Installation Parts That Endure for Decades

You’ve watched your young grapevines grow for a year or two, and now it’s time to give them a permanent home. The temptation to grab the cheapest posts and wire from the local big-box store is strong, especially when the budget is tight. But a trellis isn’t just a temporary support; it’s the permanent skeleton of your vineyard, and a failure in ten years will cost you far more in labor and lost fruit than doing it right the first time.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Trellis Foundations: A Buy-It-For-Life Approach

Building a vineyard trellis is a classic "buy once, cry once" scenario. The structure must endure decades of tension, immense crop loads, wind, ice, and relentless sun. A system that sags, snaps, or rusts through after a few seasons isn’t a bargain; it’s a recurring, labor-intensive disaster waiting to happen.

Think of the trellis not as an expense, but as a foundational investment. The real cost of a cheap system isn’t the material price, but the back-breaking work of tearing out a failed trellis entangled with mature vines. By selecting components designed for longevity from the start, you free yourself up to focus on what matters: growing exceptional grapes. This isn’t about over-engineering, but about intelligently matching materials to the forces they will face for the next 30 years.

Each component in a trellis system relies on the others. Strong end posts are useless if their anchors fail. High-tensile wire can’t do its job if it rusts or the tensioners slip. We’re going to look at a system of parts that work together to create a structure that you can build with confidence and then, for the most part, forget about.

Galvanized C-Channel Steel for End Post Strength

The end posts are the bookends of your vineyard row, and they bear almost all of the system’s tension. This is the absolute last place you want to compromise on strength. While a hefty treated wood post can work, galvanized C-channel steel offers superior, predictable strength for its size and will not rot at the ground line.

The "C-channel" shape is engineered for rigidity. Unlike a T-post, which can flex along its weaker axis, the C-channel’s form provides immense resistance to bending in the direction of the wire’s pull. This means your posts will remain straight and true year after year, even as you tighten wires to support a heavy fruit load.

Most importantly, look for hot-dip galvanized steel. This process coats the steel inside and out with a thick layer of zinc, protecting it from rust for decades. A painted post, by contrast, will begin to rust the moment it gets a scratch from a tool or rock during installation. The end post assembly is the heart of your trellis; give it the unbreakable strength of galvanized steel.

Rolled-Edge Steel Posts for Mid-Trellis Support

Between your robust end posts, you need line posts to support the wires and manage the vine canopy. Rolled-edge galvanized steel posts are an excellent choice here. They are strong, lightweight, and far easier to install than their wooden counterparts, especially if you’re driving them by hand or in rocky soil.

The key feature to look for is the "rolled edge." Cheaper, sharp-edged stamped steel posts create friction points that will chafe your trellis wire every time the wind blows. Over years, this sawing action can wear through the wire’s galvanized coating, inviting rust, or even cut the wire itself. The smooth, rounded profile of a rolled-edge post eliminates this problem entirely.

These posts are designed to work as part of a system. They have pre-punched tabs or holes that are perfectly spaced for catch wires, making it simple to position your canopy for optimal sun exposure and air circulation. This small design detail saves countless hours of measuring and drilling, and it ensures your wires won’t be damaged by the very posts meant to support them.

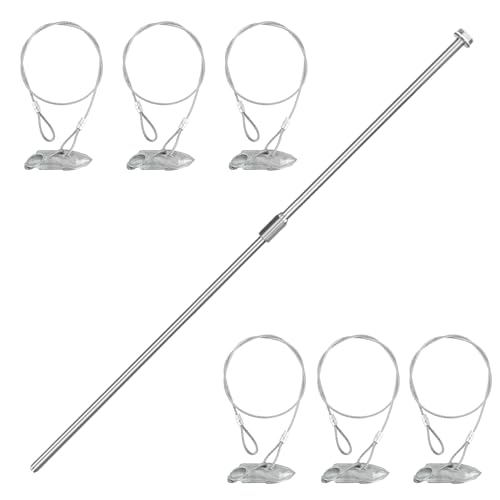

Duckbill Earth Anchors for Rock-Solid Stability

An end post is only as strong as its anchor. Over time, a post that is simply set in concrete or packed earth can slowly pull forward under tension, especially in wet or soft soil. This causes the entire trellis to sag. A Duckbill Earth Anchor prevents this with incredible holding power and minimal soil disturbance.

The Duckbill is a simple, brilliant piece of engineering. It’s a metal anchor shaped like a duck’s bill, attached to a steel cable, that you drive into the ground with a steel rod. Once it’s deep enough, you remove the drive rod and pull up on the cable. This pull rotates the anchor horizontally into undisturbed soil, like a toggle bolt in a wall, locking it firmly in place.

Compared to burying a "deadman"—a log or concrete block—a Duckbill is faster, easier, and often more effective. It requires no digging, just a heavy hammer to drive the rod. This creates a secure anchor point that provides immediate, powerful resistance, ensuring your end posts stay exactly where you put them, for good.

Class 3 Galvanized 12.5-Gauge High-Tensile Wire

Not all wire is the same, and the wire you choose is just as critical as your posts. Using cheap, soft fence wire is one of the most common and costly mistakes. It will stretch under load, sag constantly, and rust through in a handful of years, likely breaking mid-season when the vines are at their heaviest.

The gold standard for vineyard trellising is 12.5-gauge, high-tensile, Class 3 galvanized wire. Let’s break that down:

• 12.5-Gauge: This is the ideal thickness—strong enough for heavy loads but still manageable to work with.
• High-Tensile: This is crucial. This wire has very little stretch, meaning once you tension it, it stays tight. It’s designed to handle the strain of a mature vineyard.
• Class 3 Galvanized: This refers to the thickness of the protective zinc coating. Class 3 has roughly 2.5 times more zinc than the common Class 1 wire, giving it a lifespan measured in decades, not years.

Investing in this specific type of wire means you’ll spend your time managing vines, not re-tensioning a sagging trellis every spring. It’s the circulatory system of your trellis, and its integrity is non-negotiable for a long-lasting structure.

Gripple Wire Tensioners for Lasting Adjustments

Once you have your high-tensile wire, you need an effective way to tighten it and make minor adjustments over time. The old methods of wrapping, tying, and using come-alongs are cumbersome and can damage the wire. The modern solution is a simple, reusable device like a Gripple wire tensioner.

A Gripple is a small metal housing with an internal ceramic locking mechanism. You simply feed the wire through in one direction; the rollers grab it and won’t let it slip back out. To tension the wire, you just pull the free end with a special tool (or even just pliers for a short run) until it’s drum-tight. It’s fast, secure, and requires no complex knots.

The real beauty of this system is its long-term serviceability. If a wire ever needs a slight adjustment after a harsh winter or a particularly heavy crop, you don’t have to undo anything. You just grab the tensioning tool and give it a few clicks to bring it back to perfect tension. This turns a frustrating annual chore into a simple, two-minute check-up.

Fenox Wire Care Clips to Protect Canes and Wires

The point where your trellis wire passes through a metal line post is a site of constant, subtle friction. Wind, temperature changes, and the shifting weight of the vines cause the wire to move back and forth. Over years, the metal-on-metal contact can scrape away the wire’s galvanized coating, creating a weak spot for rust to take hold.

Fenox clips (and similar products) are a simple, inexpensive solution to this problem. These small, durable plastic clips snap into the holes or slots on your steel posts. The trellis wire then rests inside the clip, completely insulated from the sharp steel edges of the post.

This small component provides two critical benefits. First, it protects the wire’s galvanization, ensuring its full lifespan. Second, it creates a smoother surface for your canes to rest against, reducing the chance of chafing or girdling damage to the vine itself. It’s a tiny piece of plastic that acts as a huge insurance policy for both your wire and your plants.

Assembling Your System for Generational Growth

Each of these components is impressive on its own, but their true value is realized when they are used together as a complete system. The Duckbill anchor supports the C-channel post, which holds the tension on the Class 3 wire, which is protected by the Fenox clips and adjusted by the Gripples. Removing any one of these quality pieces compromises the integrity of the whole structure.

When you look at the cost, remember to factor in your own time and the value of your future harvests. The premium you pay for these "buy-it-for-life" parts is minuscule compared to the cost and labor of replacing a failed system tangled with mature, fruit-bearing vines. The goal is to build a trellis that fades into the background, a silent and reliable partner that does its job perfectly so you can do yours.

By choosing your components with longevity in mind, you are not just building a trellis. You are laying the foundation for decades of growth and productivity. You are making a choice to invest your future time in pruning, training, and harvesting, not in repairing and rebuilding.

A well-designed trellis becomes invisible infrastructure. It allows the beauty of the vines and the quality of the grapes to take center stage, season after season, for a generation to come.
