6 Pipe Elbow Connectors For Hydroponics That Prevent Common Leaks

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Why Slip-Fit Elbows Outperform Threaded Types

Let’s be direct: for the permanent plumbing in a hydroponic system, slip-fit (or solvent-weld) elbows are superior to threaded ones. Threaded fittings rely on compressing threads together, usually with the help of Teflon tape. This creates multiple points of failure. It’s incredibly easy to cross-thread them, over-tighten and crack the plastic, or under-tighten and create a slow, persistent leak.

A slip-fit joint, on the other hand, isn’t a mechanical connection; it’s a chemical one. When you use PVC primer and cement, you are literally melting the surfaces of the pipe and the fitting together, fusing them into a single, seamless piece of plastic. Once cured, this joint is as strong as the pipe itself.

The main tradeoff is permanence. You can’t simply unscrew a slip-fit elbow if you want to change your design. You have to cut the pipe. But for the core structure of a nutrient film technique (NFT) or deep water culture (DWC) system, that permanence is exactly what you want. It’s about building a solid foundation you never have to second-guess.

Charlotte Pipe Sch 40: The Industry Standard

When you walk into any hardware store, the gray PVC fittings you see are most likely Charlotte Pipe. This isn’t a bad thing. Charlotte Pipe’s Schedule 40 PVC is the reliable, affordable, and widely available industry standard. It’s the benchmark for a reason.

"Schedule 40" refers to the wall thickness of the pipe and fittings. For a low-pressure hydroponic system, it’s more than strong enough to handle anything your pump can throw at it. More importantly, these fittings are NSF/ANSI 61 certified, meaning they are safe for contact with potable water. If it’s safe for your drinking water, it’s safe for the water you’re feeding your plants.

Don’t overthink this choice. For 90% of hobby-scale hydroponic projects, standard Charlotte Pipe elbows will do the job perfectly. Their consistency and quality control mean you get a dependable fit every time, which is crucial for achieving a strong solvent weld.

Spears P101 Series for High-Pressure Systems

While most hydroponic systems are low-pressure, some scenarios call for something more robust. Maybe you’re running a vertical system with a significant head height, or an aquaponics setup with a powerful pump moving solids. In these cases, stepping up to a brand like Spears is a smart move.

Spears fittings, like their P101 series elbows, are known for exceptional manufacturing tolerances. The sockets are precisely machined, ensuring a snug, perfect fit before you even apply cement. This tight tolerance reduces the chance of user error and helps create an exceptionally strong bond, capable of handling much higher pressures without fail.

Think of it as cheap insurance. If your system relies on a single, powerful pump to feed multiple towers or racks, a failure at a key elbow could be catastrophic. Spending a little extra on a premium fitting from a manufacturer like Spears provides peace of mind and guards against the higher dynamic stresses in a more demanding system.

FORMUFIT Furniture Grade for Easy Assembly

Don’t let the "furniture grade" name fool you; these fittings have some real advantages for hydroponics. FORMUFIT elbows are designed for aesthetics and ease of use, but those features translate directly into better performance for our purposes. They have a glossy, UV-resistant finish and lack the barcodes and printing found on standard plumbing PVC.

Functionally, two things stand out. First, these elbows often have deeper sockets than their plumbing-grade counterparts. This increased surface area allows for a stronger solvent weld, creating a more robust joint. Second, they have a smooth, tapered bore, which can improve water flow and reduce the risk of debris or roots getting snagged inside the fitting.

The UV resistance is a significant bonus for any system exposed to sunlight, whether in a greenhouse or near a window. Standard PVC can become brittle and yellow over time with sun exposure, but furniture-grade PVC is formulated to withstand it. This makes it an excellent choice for the visible, long-term framework of your setup.

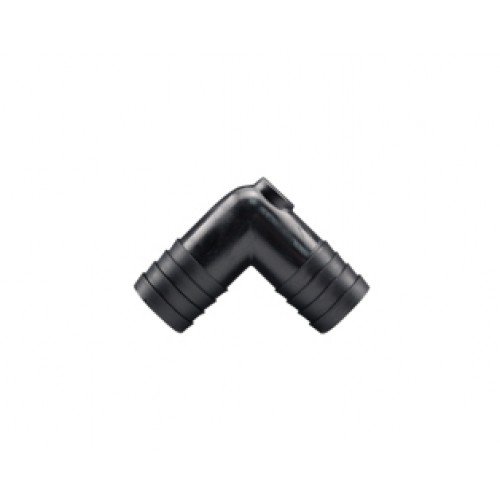

Hydro-Flow Barbed Elbows for Flexible Tubing

So far, we’ve focused on rigid PVC pipe, but nearly every system uses flexible tubing somewhere, usually to connect pumps to manifolds or for drip irrigation lines. For these connections, a barbed elbow is the tool for the job. These fittings have a series of sharp ridges that grip the inside of the flexible tube.

The key to a leak-proof seal with a barbed fitting is twofold: match the barb size exactly to the inner diameter of your tubing, and always use a clamp. Pushing a 1/2" tube onto a 1/2" barb creates a tight initial fit, but it’s the hose clamp that provides the long-term security. Without a clamp, temperature changes and constant pressure can cause the tubing to stretch and loosen, creating a drip.

This is non-negotiable. A simple stainless steel gear clamp or a plastic cinch clamp costs very little but completely eliminates the risk of a tube popping off the barb. For low-pressure drip lines, a simple plastic snap clamp might suffice, but for any connection coming directly off a pump, use a proper screw clamp.

LASCO Insert Fittings for Polyethylene Pipe

If you’re using semi-rigid polyethylene (poly) pipe for a main supply line, especially in a larger or outdoor system, you’ll need insert fittings instead of barbs. Poly pipe is much stiffer than the vinyl tubing used for drip lines, and a standard barb won’t be able to grip it effectively. LASCO is a common, reliable brand for these types of fittings.

Insert elbows are more robust than barbed elbows and are designed to be hammered into the tough poly pipe. The fit is extremely tight and requires some force to assemble. Just like with barbed fittings, a leak-proof seal is entirely dependent on external pressure from a clamp.

Because of the rigidity of the pipe, you must use a high-quality stainless steel gear clamp or a specialized cinch clamp. The fitting alone provides the shape, but the clamp provides the seal. This is the standard for underground irrigation and main water lines for a reason—it’s incredibly durable and reliable when assembled correctly.

Sealing Joints with PVC Primer and Cement

Having the best elbow in the world won’t matter if you don’t join it correctly. The process for solvent-welding PVC is simple but must be followed precisely. It is a two-step chemical process, and skipping a step guarantees failure.

First is the primer. The purple stuff. Primer is not optional. It’s a solvent that cleans any grease or residue off the plastic and, more importantly, softens the PVC on a molecular level. Apply a liberal coat to the outside of the pipe and the inside of the elbow’s socket. You’re preparing the surfaces to be fused.

Immediately follow with PVC cement, again applying to both the pipe and the inside of the fitting. Push the pipe into the elbow with a quarter-turn twist. This twisting motion ensures the cement is spread evenly and eliminates any air pockets. Hold the joint firmly in place for 30 seconds as the initial chemical weld takes hold. Don’t skimp on this—the pressure inside the joint can try to push the pipe back out if you let go too soon.

Final Checks: Curing Times and Pressure Tests

Patience is the final ingredient for a leak-proof system. That joint you just cemented feels solid after a minute, but it is far from its full strength. The solvents in the cement need time to fully evaporate and allow the PVC to re-harden into a single piece.

As a rule of thumb, wait at least two hours before handling the assembly and a full 24 hours before introducing water pressure. Curing time is affected by temperature and humidity—it takes longer in cold, damp conditions. Rushing this step is a primary cause of joint failure.

Before you add your expensive nutrient solution, conduct a pressure test with plain water. Assemble your entire system, fill the reservoir, and turn on the pump. Let it run for at least an hour, and carefully inspect every single joint you made. Use a dry paper towel to wipe around each fitting; it will reveal even the tiniest bead of moisture. It is infinitely easier to find and fix a leak now than after your plants are in place.

Ultimately, building a robust hydroponic system is about eliminating variables. By choosing the right type of elbow for the job—and using the proper technique to install it—you’re removing a major potential point of failure. This lets you stop worrying about your plumbing and get back to what matters: growing healthy, productive plants.
