Mapping Your Fence Line to Avoid Future Problems

Before you even think about digging a hole, you need to walk the line. Grab a handful of marking flags and trace the exact path your fence will take. This simple act forces you to see the project in the real world, not just as a line on a piece of paper. You’ll immediately spot problems like that low, swampy spot that stays wet until June or the ancient oak with roots that will laugh at your post-hole digger.

This is also the non-negotiable time to confirm your property lines. A friendly chat with a neighbor now is infinitely better than a legal dispute later. Call 811 or your local utility locating service before any digging begins. Hitting a buried power or water line will turn your weekend project into a costly disaster. Think about your future needs, too. Where will the gates go for easy access with a wheelbarrow or a small tractor? Plan for a 12-foot gate even if you only have a lawnmower now; you’ll thank yourself later.

Setting Corner Posts in Concrete for Solid Anchors

Your corner posts are the anchors for the entire system. They bear hundreds, sometimes thousands, of pounds of tension. If a corner post moves, the whole fence sags. This is not the place to cut corners. For a standard 4-foot woven wire fence, your corner post hole should be at least 36 to 42 inches deep.

The shape of the hole matters as much as the depth. Make the bottom of the hole wider than the top, a shape often called "belling." This creates a concrete footing that’s physically locked into the ground, making it much harder to pull out or lean. A good rule of thumb is to have at least one-third of the total post length in the ground, but for corners, deeper is always better.

When you mix your concrete, don’t just dump it in and walk away. Tamp it down around the post to eliminate air pockets. After the hole is full, slope the top of the concrete away from the post like a small volcano. This "crown" ensures that rainwater sheds away from the metal, dramatically reducing the risk of rust right at the ground line, which is the most common point of failure.

Driving T-Posts for Straight, Evenly Spaced Lines

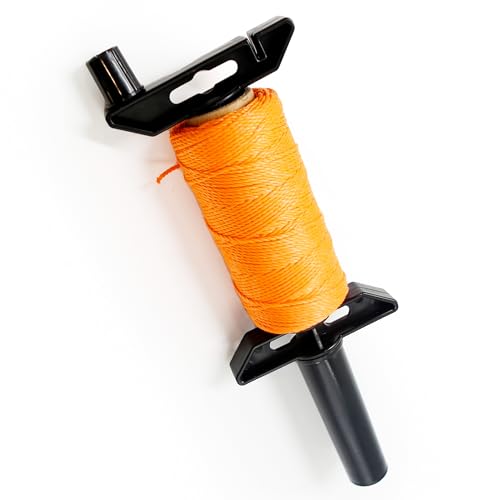

T-posts are the backbone of your fence, but a wavy line of them is a weak one. The absolute key to a straight fence is a taut string line stretched between your solidly set corner posts. Set your string low to the ground, so it guides the base of the post. Don’t eyeball it. Your eye will lie to you over a 100-foot run.

The distance between your T-posts is a classic tradeoff between cost and strength.

• 8-10 feet apart: This is ideal for containing animals that like to test fences, like goats or cattle. It costs more in posts but prevents the wire from developing a dangerous sag.
• 12-15 feet apart: This is often fine for a simple perimeter or garden fence meant to keep deer out. It’s more economical but less robust.

Forget using a sledgehammer to drive T-posts. A manual T-post driver—a heavy, hollow pipe with handles—is the right tool for the job. It’s safer, more efficient, and drives the post straight down. Drive each post until the anchor plate (the flat triangle near the bottom) is fully buried a couple of inches below the soil surface. Use a small level to check for plumb as you go, especially on the first few strikes.

Building H-Braces to Counteract Wire Tension

A single corner post in concrete, no matter how deep, will eventually lean inward from the force of stretched wire. An H-brace assembly is what prevents this. It creates a rigid structure that distributes the tension across the ground instead of putting it all on one post. You need one at every corner, end, and for any straight run longer than a couple hundred feet.

An H-brace consists of your corner post, a second "brace post" set in the ground about 8-10 feet away in the direction of the fence line, and a horizontal pipe or wood post connecting them near the top. This forms the "H." The magic, however, is in the diagonal brace wire. This wire runs from the top of the brace post down to the bottom of the corner post, forming a triangle.

Once the structure is built, you tighten this diagonal wire. You can use a simple twitch stick or an inline tensioner. As you tighten, the wire pulls the bottom of the corner post and the top of the brace post together, locking the entire assembly into an immovable unit. This H-brace must be rock-solid before you attach and stretch the main fence wire. If it moves during brace tensioning, it will definitely fail under the load of the fence.

Using Gravel Footings to Prevent Frost Heave

In climates with cold winters, the ground itself becomes your enemy. Frost heave is the process where water in the soil freezes, expands, and slowly pushes your posts right out of the ground. You’ll come out one spring to find your once-tight fence line looking like a row of crooked teeth.

The solution is simple: drainage. Before setting your corner or brace posts, pour 4-6 inches of coarse gravel into the bottom of the hole. This creates a pocket where water can collect and drain away from the base of the post and concrete. Without saturated soil directly touching the footing, ice has nothing to grip onto.

This is one of those extra steps that feels tedious but pays for itself tenfold. It’s especially critical in heavy clay soils, which hold a lot of moisture and are notorious for heaving. The cost of a bag of gravel is nothing compared to the labor of digging out and resetting a failed corner post with the fence wire still attached.

Installing Posts on Slopes and Uneven Terrain

Fencing on a hill introduces new challenges. Your first instinct might be to set every post perfectly vertical with a level, but this can look awkward and even be less stable. Instead, try to set the post perpendicular to the slope of the hill. It will lean slightly downhill relative to the horizon, but it will be properly aligned with the forces acting on it.

For dips and gullies, you can’t just stretch the fence tight from one high point to the next. This creates a huge gap at the bottom that animals will easily slip under. You’ll need to set an extra post in the bottom of the dip to anchor the fence down to the ground. In some cases, you may even need to embed the bottom of the post in a small concrete footing to counteract the upward pull of the tensioned wire.

When measuring your post spacing on a slope, run your tape measure along the ground itself. Don’t measure the horizontal distance. If you space your posts every 10 feet horizontally on a steep hill, the actual distance along the ground will be longer, and your pre-cut fence panels or rolls of wire won’t fit correctly. Follow the contour of the land.

Adapting Post Depth for Different Soil Conditions

The old "one-third in the ground" guideline is a great starting point, but soil is never standard. You have to read the ground you’re working with and adjust. A post that’s rock solid in clay might be wobbly in sand if set to the same depth.

Your soil type dictates your strategy. In loose, sandy, or loamy soil, you have to go deeper to get enough friction to hold the post. Here, you should aim for closer to 40% of the post to be in the ground. For heavy, dense clay, you have a bit more holding power, but you must be more vigilant about frost heave. Rocky soil is the most frustrating. You might hit a boulder a foot down. Your only options are to move the hole, try to break the rock with a heavy-duty digging bar, or set a shallower post and use a much wider concrete footing to compensate for the lack of depth.

Final Tensioning and Post Maintenance Checks

The moment of truth comes when you apply the final tension to your fence wire. This is when all your careful work on the corner posts and H-braces pays off. Use a fence stretcher and apply tension slowly and evenly. Keep a close eye on your corner assemblies. You want to see the wire get tight, but you should see zero movement—no leaning, twisting, or lifting—in your brace structures. If you do, stop and reinforce them before proceeding.

A fence is a dynamic structure, not a static one. Walk your fence lines every spring and fall. Look for T-posts that have been loosened by animals or frost heave and tamp the dirt firmly around their base. Check the tension on your H-brace wires; they can sometimes stretch over time. A quick twist to retighten a brace wire in the fall can prevent a corner from failing during a heavy snow load in the winter.

Ultimately, the posts are the skeleton of your fence. Whether you’re keeping animals in or pests out, the time you invest in setting them correctly is the best guarantee of a long-lasting, low-maintenance barrier that lets you sleep at night. Get the posts right, and the rest of the job becomes much, much easier.
