You’ve spent hours with a shovel and a wheelbarrow trying to level that spot for the new chicken coop, and your back is paying the price. Or maybe that gravel driveway has developed potholes deep enough to swallow a small dog. A box scraper with scarifiers is one of the most transformative implements you can own for a small property, turning back-breaking labor into a satisfying afternoon task.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Matching Tractor Horsepower to Scraper Width

The most common mistake is buying a box blade that’s too wide for your tractor. It’s an easy trap to fall into; bigger seems better, right? But a box blade that overmatches your tractor’s horsepower and weight won’t dig in properly. It will just skate over the surface, or your tires will spin, digging ruts instead of grading your land.

As a rule of thumb, you want about 5 horsepower per foot of box blade width for general use. For a 4-foot blade, you need at least 20 HP. For a 6-foot blade, you’re looking at 30 HP minimum, and frankly, you’ll be happier with 40. This isn’t just about engine power; it’s about the tractor’s overall weight and traction. A lightweight tractor with 35 HP will still struggle with a heavy 6-foot blade full of dirt, especially on a slope.

Always aim to have the box blade be at least as wide as your rear tires. This ensures you grade over your own tracks on each pass, creating a smooth, finished surface. The goal is to match the implement to the tractor for a balanced, effective system. An undersized blade is inefficient, but an oversized blade is useless.

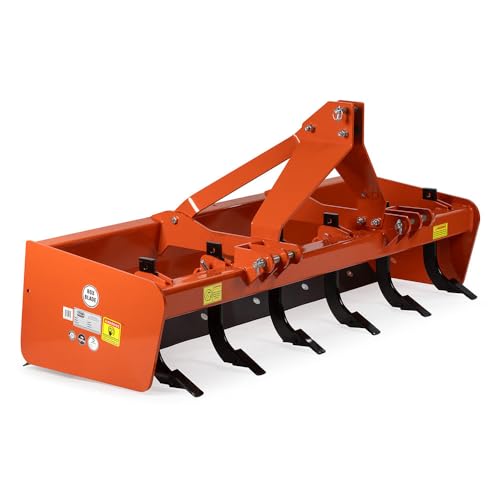

Titan 4′ Box Blade: For Sub-Compact Tractors

This is the starting point and the right choice for sub-compact tractors, typically those under 25 HP. If you’re running a Kubota BX, a John Deere 1-Series, or a similar machine, the 4-foot model is your best friend. It’s light enough for your tractor’s three-point hitch to lift easily, and narrow enough that your engine won’t bog down when the box is full.

Don’t underestimate what you can accomplish with this size. It’s perfect for maintaining a gravel driveway, leveling garden plots, or grading a small pad for a shed. The scarifiers are fully capable of ripping up packed gravel or sod in preparation for grading. You’ll make more passes than with a larger blade, but you’ll be moving dirt effectively, not just spinning your wheels.

The key limitation here is scale. It’s not the tool for carving a new half-mile road or terracing a large hillside. But for the typical tasks on a property of one to five acres, the 4-foot box blade turns a sub-compact tractor into a legitimate earth-moving machine.

Titan 5′ Box Blade: The All-Around Farm Workhorse

For most hobby farmers with a compact tractor in the 25-45 HP range, the 5-foot box blade is the absolute sweet spot. It offers a significant jump in efficiency over the 4-foot model without demanding the power and weight required by a 6-foot version. This is the size that can handle nearly any task you throw at it on a small farm.

Think about cleaning out a small barn, regrading the path to your back pasture, or creating drainage swales to manage rainwater. The 5-foot width covers your tire tracks on most compact tractors and can carry a substantial amount of material. Its balance of size and weight makes it maneuverable enough for tight spaces but hefty enough to do serious work.

This is the implement that pays for itself over and over. You’ll find uses for it you never anticipated. Need to spread a pile of compost across the garden? The box blade can do it. Need to back-drag and smooth the arena for your horses? It excels at that. If you have a classic compact utility tractor, this is almost certainly your starting point.

Titan 6′ Box Blade: Maximum Width for a Cat 1 Hitch

The 6-foot box blade represents the practical upper limit for most tractors equipped with a standard Category 1 three-point hitch. To run this effectively, you should have a tractor with at least 40 HP and a good amount of physical weight. Trying to pull this with a lighter 35 HP tractor will be a frustrating experience, especially in tough soil.

The primary advantage is simple: efficiency. Each pass covers 20% more ground than a 5-foot blade. When you’re grading a 300-yard driveway or a large food plot, that time savings adds up quickly. The increased capacity also means you can move more material with each pass, which is ideal for bigger jobs like building up a pad for an outbuilding.

However, the extra width and weight come with tradeoffs. It’s less nimble around obstacles like trees and fence posts. And when you drop those scarifiers into hard, compacted ground, it will test the limits of your tractor’s traction and power. This is a fantastic tool, but only if you have the machine to handle it.

Titan 6′ HD Box Blade: For Tough, Compacted Soil

At first glance, the heavy-duty (HD) version looks similar to the standard 6-foot model, but the difference is in the steel. The HD model is built with a thicker, heavier frame and a reinforced moldboard. This added mass is not just for durability; it’s a critical performance feature.

Weight is your friend when it comes to breaking hard ground. A lighter box blade will tend to bounce and skip across heavily compacted or rocky soil, even with the scarifiers down. The extra couple hundred pounds of an HD model forces those shanks to bite in and stay put, ripping up stubborn ground instead of just scratching the surface.

You should consider the HD model if your property has:

• High clay content soil that bakes hard in the summer
• Old, compacted farm lanes or pastures you want to rework
• Rocky or gravelly soil that punishes lighter implements

The investment in an HD model is about getting the job done right the first time. If you know your soil is tough, skipping the standard model and going straight to the HD will save you a world of frustration.

Titan Hydraulic Scarifier Box Blade: Adjust on the Go

For those who use their box blade frequently for varied tasks, the hydraulic scarifier option is a game-changer. Instead of stopping the tractor, getting off, and manually pulling pins to raise or lower the scarifier shanks, you can adjust them with a simple lever from your seat. This feature requires your tractor to have a rear hydraulic remote, but the efficiency gain is massive.

Imagine you’re re-grading a long driveway. The first section is hard-packed and needs the scarifiers down deep to break it up. The next section is looser gravel that just needs leveling, so you want the scarifiers up. With a manual setup, you’re constantly stopping. With hydraulics, you make the adjustment in seconds without ever losing momentum.

This isn’t a necessary feature for everyone. If you only use your box blade a few times a year for the same task, manual adjustment is perfectly fine. But if you’re doing extensive landscaping, building trails, or managing varied terrain, the ability to fine-tune the aggressiveness of the blade on the fly transforms the tool from a simple implement into a precise grading instrument.

Titan 7′ HD Box Blade: For High HP Compact Tractors

Stepping up to the 7-foot HD box blade means you are operating at the top end of the compact tractor world. This implement is a serious piece of equipment, and it requires a serious tractor to match—think 50 HP at a minimum, and more realistically, something in the 60-75 HP range with a robust Category 1 or even a Category 2 hitch.

This is not the tool for tight quarters or delicate work. This is for bulk material moving on a larger scale. Use cases include leveling a site for a small barn, maintaining long access roads, or preparing multi-acre food plots. The sheer width and weight allow you to move a tremendous amount of earth quickly, dramatically reducing your seat time on big projects.

Before considering this size, be honest about your tractor’s capabilities. It’s not just about horsepower; your tractor needs the hydraulic capacity to lift it and the sheer mass to keep traction when the box is full and the scarifiers are digging deep. For the right machine, it’s a productivity multiplier. For the wrong one, it’s an anchor.

Understanding Scarifier Shanks and Cutting Edges

A box blade has two primary functions, and they are performed by two different parts. Understanding them is key to using the tool effectively. The scarifier shanks are the adjustable, claw-like teeth. Their only job is to rip, tear, and break up hard, compacted ground. You lower them when you need to loosen up a hardpan driveway or break through sod.

The cutting edges are the hardened steel blades on the front and back of the box itself. The front edge scrapes and cuts the loosened material, which then tumbles into the box. The rear edge is used for back-dragging, which is the technique for creating a smooth, finished surface. Once the heavy work is done, you raise the scarifiers completely out of the way and use just the cutting edges to level and smooth.

Most quality box blades, including Titan’s, have two reversible cutting edges. This means that after hours of use, when one side becomes worn, you can unbolt the blade, flip it over, and have a fresh, sharp edge to work with. This simple feature effectively doubles the life of your most important wear part, saving you money and time.

Choosing the right box blade isn’t about getting the biggest one you can afford; it’s about creating a balanced system with your tractor. By matching the width and weight to your machine’s power and your property’s needs, you invest in an implement that will serve you well for decades. It will save your back, improve your land, and make your small farm more productive and enjoyable.
