6 Best Heavy Duty Top Links for Heavy Implements

You’ve just wrestled a heavy box blade onto your three-point hitch, but as you climb into the seat, you glance back at that stock top link. It looks thin, the threads are a bit worn, and it just doesn’t inspire confidence for the hours of grading ahead. That small steel bar is the critical connection determining your implement’s angle and performance, and a failure under load isn’t just an inconvenience—it’s a major safety risk. Upgrading to a heavy-duty top link is one of the smartest, most affordable investments you can make for your tractor’s capability and your own peace of mind.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Why Your Tractor Needs a Heavy-Duty Top Link

The top link is the unsung hero of your tractor’s three-point hitch system. While the two lower lift arms handle the weight, the top link bears the immense pushing and pulling forces that control the implement’s pitch and angle of attack. For light-duty tasks like moving a hay spear, the factory-supplied link is often adequate. But when you hook up a ground-engaging implement like a subsoiler, a heavy disc harrow, or a rotary tiller, the stresses multiply exponentially.

A standard-duty link can bend under the compressive force of a box blade digging into hard-packed ground or stretch when a brush hog snags a hidden stump. This not only compromises the quality of your work, leading to uneven grading or poor cutting, but it also puts you in a dangerous situation. A snapped top link can cause the implement to drop suddenly or swing uncontrollably, posing a serious threat to the operator and the equipment.

A heavy-duty top link is built with thicker steel, stronger welds, and more robust threads to withstand these forces without deforming. It provides a solid, reliable connection that translates your tractor’s power into predictable implement performance. This means more precise control, better results, and the confidence to tackle tough jobs without worrying if a critical component is about to become your weakest link.

Key Features of a Quality Tractor Top Link

When you’re ready to upgrade, don’t just grab the first one you see. A few key features separate a truly heavy-duty top link from a standard replacement painted a different color. Paying attention to these details ensures you get a tool that will last and perform when you need it most.

First and foremost is the Category (Cat) rating. Your tractor and implements are rated as Category 1, 2, or 3, which dictates the pin size and hitch geometry. A heavy-duty top link must match your tractor’s category to ensure a proper, secure fit. Using bushings to adapt a larger link to a smaller tractor is possible, but it’s always best to match the native category for maximum strength.

Look closely at the construction and materials. The best heavy-duty links use forged steel ends rather than cast iron, as forging creates a much stronger, more resilient part. The central body or turnbuckle should be made of thick-walled steel with clean, deep threads that won’t strip under pressure. A simple-to-grip T-handle or hex body for adjustment is a huge plus, especially when your hands are cold or greasy. Finally, a reliable locking mechanism, like a sturdy jam nut or a locking collar, is non-negotiable; it prevents the link from vibrating and changing length during operation.

SpeeCo S06037300: Our Top All-Around Pick

For the hobby farmer who needs a straightforward, no-nonsense upgrade from their stock top link, the SpeeCo S06037300 is the go-to choice. It’s built with the understanding that most of us need reliability and strength without unnecessary complexity. This link features forged ball ends for superior strength where it counts most, and the entire body is zinc-plated to resist the rust and corrosion that inevitably seize up lesser links.

The classic turnbuckle design is easy to adjust, providing a wide range of lengths to accommodate various implements, from a post-hole digger that needs to be level to a scraper blade that requires a steep angle. It’s a Category 1 link, making it a perfect fit for the vast majority of compact and small utility tractors used on homesteads and hobby farms. It simply does its job without fanfare.

This is the top link for the farmer who values dependability over everything else. If you’re running implements like a 5-foot brush hog, a subsoiler, or a landscape rake on your compact tractor and want a set-it-and-forget-it solution that you know won’t fail, this SpeeCo link is your answer. It’s an affordable, high-quality upgrade that provides immediate peace of mind.

Titan Attachments Hydraulic Top Link Kit

The Titan Attachments Hydraulic Top Link Kit isn’t just an upgrade in strength; it’s an upgrade in efficiency and control that can fundamentally change how you work. Instead of getting off the tractor to manually crank a turnbuckle, this kit allows you to precisely adjust your implement’s pitch from the driver’s seat using your tractor’s rear hydraulic remotes. This is a game-changer for tasks like grading with a box blade, where constant, subtle adjustments are key to achieving a smooth finish.

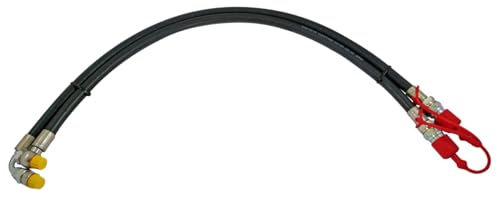

This kit comes with the hydraulic cylinder, hoses, and pioneer couplers, providing everything you need to get set up (assuming your tractor has rear remotes). The hydraulic action is smooth and powerful, capable of making adjustments even when the implement is under load. It also includes a hydraulic check valve, which is a critical feature that prevents the cylinder from drifting and changing length during operation, holding your desired angle securely.

If your time is limited and your tasks demand precision, the Titan hydraulic link is a worthy investment. For anyone who frequently uses a box blade, land plane, or rear blade, the ability to fine-tune the implement’s angle on the fly will save you hours of frustration and produce a far superior result. It turns a tedious, multi-step process into an intuitive, fluid motion.

CountyLine Category 2 Top Link Assembly

For those with larger utility tractors in the 45-100 horsepower range, a Category 1 link simply won’t cut it. The CountyLine Category 2 Top Link, readily available at Tractor Supply stores, is the workhorse solution for heavier equipment. It’s built to handle the increased forces generated by larger tractors and the demanding implements they run, like 7-foot rotary cutters or heavy-duty disc harrows.

This top link is designed for practicality and accessibility. It features a robust, all-steel construction with a durable finish to stand up to the elements. The adjustment handle is typically a simple but effective sliding pin T-handle, which provides good leverage for making changes, even when the threads are dirty. It’s a straightforward, functional design that prioritizes strength over refinement.

This is the right choice for the practical farmer with a Category 2 machine who needs a strong, affordable, and easily sourced replacement. It may not have the premium feel of some other brands, but it’s a proven design that delivers the brute strength required for bigger jobs. When your old Cat 2 link gives out on a Saturday morning, this is the one you can grab and get back to work with confidence.

Agri Supply Forged Steel Heavy Duty Top Link

When your primary concern is absolute, uncompromising strength, the Forged Steel Heavy Duty Top Link from Agri Supply stands out. This link is less about fancy features and more about pure material integrity. By using forged steel for the entire body, not just the ends, it offers exceptional resistance to bending and breaking under the most extreme compressive and tensile loads.

This is the kind of top link you want when you’re hooking up a single-shank subsoiler to bust up hardpan or using a heavy-duty brush grubber to clear fence lines. The design is brutally simple: thick, forged steel with coarse, heavy-duty threads that are less likely to get damaged or stripped. It’s overbuilt by design, giving you a massive safety margin for high-stress, ground-engaging work.

For the farmer whose implements put maximum strain on the hitch, this is your top link. If you prioritize raw durability and view your top link as a critical safety component for pulling, pushing, and prying with heavy implements, the all-forged construction from Agri Supply is the ultimate in mechanical strength. It’s pure, simple, and incredibly tough.

Everything Attachments Severe Duty Top Link

Everything Attachments has built a reputation for over-engineering their products, and their Severe Duty Top Link is a prime example of that philosophy. This is the top link for the farmer who believes in buying the best once and never worrying about it again. Made in the USA with high-quality American steel, every component of this link is designed for maximum longevity and strength.

What sets it apart is the attention to detail. The turnbuckle body is made from extremely thick-walled DOM (Drawn Over Mandrel) tubing, which is stronger and more uniform than standard pipe. The welds are meticulous, and the T-handle is often welded directly to the body, creating a single, unbreakable unit. These are the small things that add up to a product that feels indestructible in your hands and performs that way in the field.

If you run your equipment hard and expect it to last a lifetime, the Everything Attachments Severe Duty Top Link is the only choice. It’s a premium product with a price to match, but its construction quality is unmatched in the mechanical top link market. This is the definition of a "buy it for life" tool for your tractor.

A&I Products Cat 1/2 Adjustable Top Link

On many hobby farms, the shed is filled with a mix of equipment collected over the years. You might have an older Category 1 brush hog but a newer Category 2 box blade, creating a constant hassle of swapping top links or fumbling with adapter bushings. The A&I Products Cat 1/2 Adjustable Top Link solves this problem with elegant simplicity by featuring convertible ends that can accommodate both Category 1 and Category 2 pins.

This versatility doesn’t come at the expense of strength. A&I Products is a major supplier of quality aftermarket parts, and this link is built to handle the demands of either category. The swiveling ball ends are designed with removable bushings, allowing you to quickly switch between the 7/8" pin size for Cat 1 and the 1-1/8" pin size for Cat 2.

This is the ideal top link for the farmer with a mixed fleet of implements. If your tractor sits on the line between Cat 1 and Cat 2, or if you simply value efficiency and want one top link that can handle nearly everything you own, this adjustable model from A&I is the smartest, most practical solution available. It streamlines your hook-up process and reduces clutter.

Mechanical vs. Hydraulic: Which is for You?

Choosing between a traditional mechanical top link and a modern hydraulic one comes down to your primary tasks and your budget. There is no single right answer, but there is a right answer for your farm. Understanding the tradeoffs is key to making the right decision.

A mechanical top link is the essence of simplicity and reliability. It’s strong, has no moving parts to fail other than the threads, requires no external power, and is significantly less expensive. For implements that you typically "set and forget," like a brush hog, post-hole digger, or a rotary tiller, a high-quality mechanical link is all you need. The main drawback is the inconvenience; adjusting it requires getting off the tractor, and making fine-tuned changes under load is nearly impossible.

A hydraulic top link, on the other hand, offers unparalleled control and convenience. The ability to change the implement’s pitch from the seat, while moving, transforms tasks that require dynamic adjustments. Think of tilting a box blade forward to cut and then backward to smooth in one continuous pass. The downsides are significant: they are much more expensive, require a tractor with rear hydraulic remotes, and introduce another potential point of failure (hoses, seals, and fittings).

Your decision should be task-driven. If 80% of your work is mowing or tilling, stick with a top-tier mechanical link and save your money. But if you spend significant time grading driveways, leveling food plots, or doing any task that benefits from active implement control, a hydraulic top link will pay for itself in time saved and quality of work.

Proper Top Link Care and Maintenance Tips

A heavy-duty top link is a simple tool, but a little bit of care will ensure it functions smoothly for years and is always ready when you need it. Neglecting it can lead to seized threads, making adjustments a nightmare, or worse, hiding potential stress fractures until it’s too late. A few simple habits can make all the difference.

The most important maintenance task is to keep the threads clean and lubricated. Before and after each season, use a wire brush to clean any dirt, rust, or debris from the threads. Once clean, apply a good quality grease or anti-seize compound to the threads. This prevents them from galling under pressure and protects against rust, ensuring the turnbuckle spins freely when you need to make an adjustment.

Before each use, perform a quick visual inspection. Look for any signs of bending in the main body or cracks forming near the welds or forged ends. Check that the locking jam nut is present and not stripped, as this is what holds your setting in place. When not in use, it’s best to store the top link indoors or in a toolbox, out of the rain and mud, to prevent excessive corrosion. A little care goes a long way in preserving this critical component.

Your tractor’s top link is far more than just a piece of hardware; it’s the crucial pivot point for the safety and effectiveness of your entire three-point hitch system. Choosing the right one isn’t about finding the heaviest or most expensive option, but about honestly assessing the work you do. By matching the link’s strength, category, and features to your specific implements and tasks, you invest in smoother operation, better results, and a safer farming experience.
