6 Best Conduit Pipe Fittings For Protecting Outdoor Garden Electrical

Powering an irrigation pump or lighting a run for the laying hens requires more than just burying a few wires in the dirt. Proper outdoor electrical infrastructure bridges the gap between a temporary setup and a professional, reliable farm operation. Choosing the right conduit fittings ensures that circuits survive moisture, soil movement, and the inevitable bumps from farm equipment.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

LB Conduit Body: For 90-Degree Wall Exits

The LB conduit body is the backbone of any transition from an interior electrical panel to an exterior run. Its distinct shape allows conductors to pull through a 90-degree bend against a wall without exceeding the bend radius limits of the wire. The removable back cover provides essential access for pulling long wire runs that would otherwise be impossible to navigate.

• Always install these with a rubber gasket and a cover plate to maintain a weather-tight seal.
• Orient the “LB” (L-shaped, back opening) so the cover faces outward for maintenance access.

This fitting is mandatory for anyone running rigid conduit from a barn wall to an outdoor circuit. It eliminates the frustration of trying to force stiff, heavy-gauge wire through tight, inaccessible corners. Invest in high-quality cast aluminum or PVC versions, as cheap, thin-walled alternatives often crack under temperature shifts.

Weatherproof Box: Best for Splicing Wires

A weatherproof junction box serves as the primary hub for splitting power lines or transitioning between conduit types. These boxes feature threaded hubs that screw directly into conduit, creating a solid, waterproof environment for wire nuts and connectors. When mounted securely to a post or siding, they keep sensitive wire connections away from mud and pests.

Use these boxes whenever a run needs to terminate or branch off to a secondary location, such as a garden shed. The internal volume allows for ample space to fold wires, preventing the cramped conditions that lead to short circuits. Selecting a box with enough threaded ports is critical for multi-directional wiring needs.

Never settle for standard interior boxes in an outdoor setting, as they fail under even moderate humidity. A dedicated weatherproof box with a mounting lug system is the only reliable way to ensure long-term circuit stability. It is the gold standard for protecting splices in high-moisture environments.

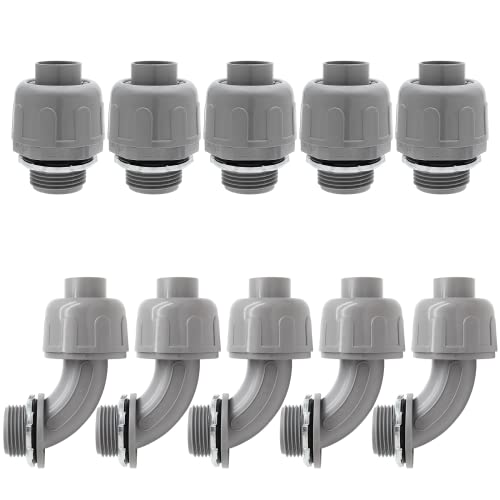

Liquid-Tight Connector: Seals Flexible Conduit

Liquid-tight flexible conduit—often called “flex”—is the perfect solution for vibrating equipment like a sump pump or a livestock waterer. However, the conduit itself is useless without the proper liquid-tight connector. These fittings feature a compression nut and a sealing ring that grips the outer jacket of the conduit, effectively creating a barrier against water intrusion.

• Ensure the connector is sized exactly to the diameter of the flex conduit.
• Tighten the compression nut firmly, but avoid overtightening, which can strip the threads or distort the seal.

This fitting is recommended specifically for high-movement zones where rigid conduit would eventually break or loosen. If the pump sits in a vibration-heavy area, this connector is the insurance policy for the electrical connection. It is highly effective, durable, and essential for any application involving motorized equipment.

EMT Compression Coupling: Securely Joins Runs

When running Electrical Metallic Tubing (EMT) across a long stretch of fencing, individual ten-foot lengths must be joined. Compression couplings use a nut and internal sleeve to lock onto the conduit, providing a stronger, more weather-resistant bond than standard set-screw fittings. This creates a continuous, rigid pathway that resists bowing and mechanical damage.

These couplings are the preferred choice for exposed runs that might see accidental impact from farm equipment. They offer superior structural integrity, keeping the conduit line straight and aligned over time. While they cost slightly more than standard fittings, the labor savings in avoiding future repairs make them a smart investment.

For anyone committed to building a permanent electrical grid, compression couplings are superior to set-screw types. They maintain ground continuity across the entire length of the pipe, which is a critical safety factor. Prioritize these for any external runs where structural strength is a priority.

SE Cable Connector: For Heavy-Duty Power In

Service Entrance (SE) cable connectors are designed to secure the thick, heavy-duty power lines that feed a subpanel. These fittings clamp onto the armored cable and thread into the cabinet or box, providing a strain-relief mechanism that prevents the weight of the cable from pulling on the wire terminals. They are heavy, rugged, and built to withstand the torque of a large-diameter service cable.

Using the wrong fitting for a large power run is a common mistake that leads to damaged wire insulation and dangerous electrical arcs. These connectors are specifically engineered to handle the strain of heavy-gauge aluminum or copper conductors. They belong in every scenario involving main-feeder lines to barns or greenhouses.

For reliability, choose a connector with a high-quality rubber sealing gland. This keeps water from tracking down the cable jacket and entering the electrical enclosure. It is the only responsible way to bring high-amperage power into an outdoor structure.

In-Use Weatherproof Cover: Protects Outlets

An “in-use” cover—often called a bubble cover—is an essential fitting for any outdoor receptacle. Unlike simple flat lids that only work when nothing is plugged in, these enclosures allow the outlet to remain plugged into a heavy cord while the cover is fully closed. This protects the plug and the receptacle from rain, dust, and debris.

• Verify that the cover is rated for the specific orientation of the box (vertical or horizontal).
• Check that the locking mechanism is sturdy enough to withstand wind and curious animals.

For a farm setup, these are non-negotiable. They allow for the safe use of garden tools, heaters, or lighting during inclement weather. A quality in-use cover ensures the electrical outlet remains functional regardless of the season.

Choosing Conduit: PVC vs. Metal for Your Farm

Choosing between PVC and metal conduit depends entirely on the location and exposure of the run. PVC is an excellent, cost-effective choice for underground runs or areas with high salt or chemical exposure, as it will never rust. It is easy to work with but requires proper glue-weld techniques to ensure the joints remain sealed.

Metal conduit, such as EMT or rigid steel, offers superior protection against physical damage and fire. It acts as a shield against rodent chewing and the occasional strike from a shovel. However, metal requires threading or specialized coupling systems and can eventually succumb to rust if the galvanized coating is scratched.

• Use PVC for direct burial where moisture is the primary concern.
• Use metal conduit for all above-ground runs attached to building exteriors.

Mixing materials is perfectly acceptable if each section is treated according to its environment. Always consider the potential for “accidental” contact with machinery when deciding on the wall thickness of the conduit. A bit of foresight during installation saves hours of digging or troubleshooting later.

How to Properly Bury Your Electrical Conduit

Burying conduit involves more than just digging a trench and dropping the pipe in. Local electrical codes dictate specific burial depths based on the voltage and the type of conduit used. Typically, rigid metal requires less depth than PVC, but regardless of material, the trench floor must be free of large, sharp rocks that could stress the pipe over time.

Always lay a protective warning tape in the soil about six inches above the conduit. This simple step alerts anyone digging in the future to the presence of electrical lines, potentially preventing a dangerous accident. Before backfilling, ensure all joints are inspected for integrity to guarantee that water will not enter the system during heavy rains.

When backfilling, use fine soil or sand to bed the conduit, packing it down before covering it with the native earth. This provides a stable foundation and prevents shifting that could pull apart joints at the entry points of boxes. Consistent, thoughtful burial ensures the infrastructure remains buried for decades without incident.

Grounding Outdoor Circuits for Maximum Safety

Outdoor electrical circuits require a robust grounding system to protect against power surges and fault currents. A grounding rod driven into the earth near the outdoor subpanel provides a path of least resistance for stray current. All conduit fittings must be properly bonded to this grounding system to ensure the entire structure remains at the same electrical potential.

Avoid the common misconception that a circuit is safe just because it is turned on and functional. Without a solid ground, a short circuit in a damp environment could energize the entire conduit system or the exterior of a metal box. Using grounding bushings at junction points adds an extra layer of protection, especially in long, multi-section runs.

Consult local regulations for the required size and placement of grounding electrodes. Safety on a farm depends on the integrity of the ground, particularly when tools are used in moist soil or near metal feeders. A properly grounded system is the hallmark of a professional-grade installation.

Essential Tools for Outdoor Conduit Projects

Executing a clean conduit project requires a small but specialized kit of tools. A quality conduit bender is essential for metal pipe, allowing for smooth curves that won’t kink the material. For PVC, a simple handsaw or ratcheting cutter works, though you will need a chamfer tool to smooth the cut ends before gluing them into fittings.

A multi-bit screwdriver, a sturdy pair of channel-lock pliers, and a set of nut drivers will handle most assembly tasks. Having a small torpedo level is also helpful for ensuring that conduit runs look uniform and professional along the side of a barn. Clean threads and secure connections are the primary goals, and the right tool prevents damaged hardware.

• Conduit bender (for metal).
• Deburring tool (for smoothing cut edges).
• Ratcheting cutter (for PVC).
• Level and tape measure.

Investing in these tools makes the difference between a DIY project that leaks and one that lasts. Keep the kit organized in a dedicated toolbox so that maintenance and future expansions are always within reach. Good tools lead to faster installations and fewer leaks in the long run.

Proper conduit installation is the difference between a farm that hums with productivity and one plagued by constant electrical gremlins. By selecting the right fittings and adhering to foundational safety practices, you build an electrical system that withstands the harsh realities of agricultural life. Choose your components with care, prioritize longevity, and the farm will stay powered through every season.
