6 Best Deutsch Connectors For Heavy Duty Field Equipment Maintenance

Equipment downtime during the height of the harvest or planting season is the fastest way to turn a manageable chore into a genuine headache. Relying on cheap, store-bought electrical connectors often results in intermittent signal failures that are notoriously difficult to track down in the field. Upgrading to industrial-grade Deutsch connectors creates a permanent, weatherproof seal that ensures every spark and signal reaches its destination, rain or shine.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Deutsch DT Series: The All-Around Workhorse

The DT Series serves as the gold standard for general-purpose tractor and implement lighting. Featuring a rugged thermoplastic housing and silicone seals, these connectors are practically impervious to the moisture and mud typical of life on a hobby farm. They are the go-to choice for turn signals, headlights, and basic implement controllers.

Versatility defines the DT line, as it handles a wide variety of wire gauges with ease. Because they are so common, replacement pins and wedges are available at almost any agricultural supply shop, making field repairs straightforward. If the project involves standard 12-volt accessories, look no further than this series.

These connectors should be the default choice for 90% of wiring tasks on the property. Avoid over-engineering a simple lighting repair by choosing a more specialized series; the DT series provides the perfect balance of cost and performance. Stick with this line for all standard electrical maintenance.

Deutsch DTP Series: For High-Amperage Needs

Standard connectors melt or fail when tasked with high-current draws like heavy-duty LED work lights or electric spray pumps. The DTP Series is engineered specifically for these situations, offering larger contacts that handle higher amperage without overheating. They maintain the same weather-resistant integrity as the DT series but with the necessary internal guts to handle higher power demands.

When running power to a motorized implement or a high-intensity lighting bar, the DTP series prevents the voltage drops that kill components prematurely. The housing remains compact, yet the internal construction is beefed up to ensure longevity under heavy electrical loads. It is a specialized tool, but it is the correct tool for power-intensive jobs.

Only utilize the DTP series when the amperage demands exceed standard ratings. If the equipment setup involves high-draw pumps or power-hungry lighting arrays, do not settle for standard DT connectors. This is the heavy-duty insurance policy for electrical systems that draw significant current.

Deutsch DTM Series: Perfect For Sensor Wiring

Modern implements rely on delicate sensors for monitoring depth, speed, or flow rates, and these components demand precise electrical connections. The DTM Series uses smaller contacts that are designed for low-amperage, high-precision signals. Using oversized connectors on these circuits often leads to connection corrosion and signal noise, which the DTM series effectively eliminates.

By providing a secure, vibration-resistant connection, the DTM series protects sensitive electronics from the rattling of a tractor over uneven pastures. The seals remain tight even in high-humidity environments, keeping the signal clean from start to finish. They are compact, making them ideal for tucking away into tight sensor housings or wiring harnesses.

For any task involving small-gauge wire and critical data transmission, the DTM is the only logical choice. Do not use larger connectors for sensor wiring, as the lack of pin-to-socket tension can cause intermittent faults. Invest in these for data-sensitive applications to keep equipment diagnostic tools reporting accurately.

Deutsch HD30 Series: Ultimate Durability Pick

When the wiring harness resides on the exterior of a piece of equipment, constantly exposed to road salt, flying debris, and intense heat, the HD30 Series becomes the necessary upgrade. Featuring a heavy-duty aluminum shell, these connectors are built to withstand physical abuse that would shatter standard plastic housings. They are essentially the armored plating of the electrical world.

The HD30 series is common in industrial and heavy-off-road applications, offering a degree of mechanical protection that is unmatched by other series. They seal tightly, locking out the elements even when submerged in slush or mud during winter chores. While they are more expensive and heavier than plastic alternatives, the cost is justified for mission-critical exterior connections.

Use the HD30 series only where the connection is exposed to high impact or extreme environmental stress. For wiring hidden away under the hood or inside a cab, this series is likely overkill. Select these for the tough, exterior harness junctions that see the most wear and tear.

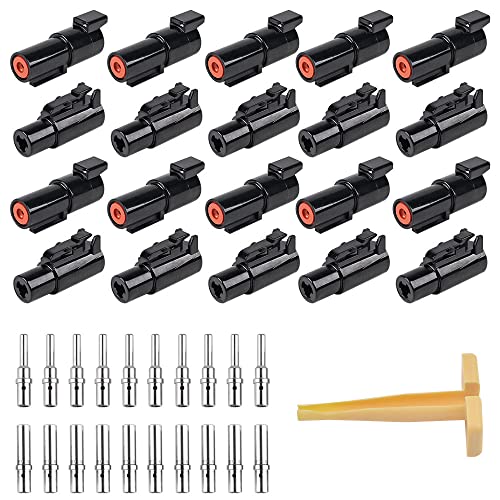

Deutsch DTHD Series: Best for Single-Wire Power

Powering a winch, a heavy-duty salt spreader, or an auxiliary battery connection often involves a single, thick-gauge power cable. The DTHD series is built specifically for these high-power, single-circuit applications. They offer the same environmental sealing as their multi-pin counterparts but in a streamlined, single-pole configuration.

These connectors simplify high-power installations by keeping the gauge size consistent and the connection points isolated. The rugged housing ensures that the main power feed remains secure, preventing accidental shorts or power losses. It is an essential component for simplifying the heavy-duty wiring at the battery or power distribution block.

If the project requires a robust, weather-tight connection for a single heavy power line, the DTHD is the definitive choice. Avoid the temptation to use generic spade terminals or exposed lugs that will inevitably corrode. Make the DTHD part of the plan for any heavy-duty power-inward installation.

JRready ST5152 Kit: Best All-in-One Solution

The most common failure in a Deutsch connection is not the plug itself, but the improper crimping of the pin to the wire. The JRready ST5152 kit provides the professional-grade crimpers and release tools necessary to achieve a factory-quality seal. Trying to use generic pliers or improper tools will result in pulled wires and poor contact, nullifying the benefits of buying high-quality connectors.

This kit contains the specialized “four-indent” crimper, which is essential for ensuring that the metal pin wraps tightly around the conductor. It also includes the specific extraction tools required to remove pins without damaging the fragile silicone seals or the housing plastic. It is a comprehensive investment that pays for itself after the first few successful repairs.

For any hobby farmer who intends to move away from quick-fix electrical tape repairs, this kit is non-negotiable. Do not attempt to install Deutsch connectors without a proper crimping set. The JRready kit provides everything needed to ensure that every repair is finished with professional results.

How to Pick Your Deutsch Connector Series

Choosing the right connector requires a quick evaluation of the circuit’s needs, specifically current, environmental exposure, and space limitations. Start by identifying the amperage requirement; this usually dictates whether to look at DTM for small signals, DT for standard lights, or DTP/DTHD for power circuits. Over-specifying to a larger connector is usually acceptable, but under-specifying for amperage will lead to catastrophic failure.

Consider the location of the connector on the equipment. If it is buried deep within a dashboard or inside an enclosed cabin, standard plastic DT housings are sufficient and cost-effective. For connections located near wheels, under the chassis, or on the back of an implement, prioritize the heavy-duty HD30 series to protect against debris.

Finally, match the terminal size to the wire gauge being used. A common error involves trying to force a thick cable into a pin designed for thin wire, which prevents the moisture seal from closing correctly. Always check the wire gauge rating of the specific contact before purchasing the mating connector.

Proper Crimping: The Key to a Reliable Repair

A reliable connection begins with stripping the insulation to the exact length specified for the terminal. If the wire is stripped too far, exposed copper invites corrosion; too short, and the crimp will not catch the wire insulation, leading to early vibration failure. Always ensure the wire is clean and free of oxidation before starting the process.

Use the four-indent crimper to create a uniform, gas-tight bond between the pin and the copper strands. A proper crimp should look uniform around the entire circumference of the terminal. If the tool feels like it is deforming the metal excessively or not gripping at all, stop and recalibrate the tool settings to match the wire gauge.

Once the crimp is complete, perform a firm pull test to ensure the pin is locked onto the wire. If the pin pulls off, discard it and start over; a loose connection will only cause frustration later. Reliability in the field is built on these small, mechanical details performed correctly the first time.

How to Install and De-Pin a Deutsch Connector

Installing a connector is straightforward once the pins are crimped: push the pin into the back of the housing until a distinct “click” is felt. Always verify that the pin is fully seated by giving it a slight tug from the back. Once all pins are inserted, slide the wedge lock into place to ensure the contacts stay securely within their designated positions.

De-pinning—the art of removing a terminal without destroying the housing—requires the correct removal tool and a steady hand. First, remove the wedge lock from the housing using the removal tool or a small flat-blade screwdriver. Then, use the extraction tool to depress the internal locking fingers and gently pull the wire out from the back.

Never use force to remove a terminal. If the pin does not slide out easily, re-insert the extraction tool to ensure the locking fingers are fully retracted. Mastering this removal technique allows for the recycling of connectors when equipment is repurposed, saving significant money on parts over the long term.

Essential Tools for Deutsch Connector Repairs

A professional electrical repair station on the farm requires only a few core tools to handle any Deutsch system. The four-indent crimper is the centerpiece, as it provides the most consistent mechanical bond for wire-to-pin connections. Complement this with a set of dedicated terminal extraction tools, which are far safer and more effective than improvised picks or paperclips.

Keep a high-quality wire stripper nearby to ensure clean cuts without nicking the copper strands. Nicks act as stress risers, which eventually snap under the vibration of field work. If working with higher-gauge power lines, a heavy-duty cable cutter is also necessary to keep the wire ends clean and flat.

Lastly, maintain a small organizer filled with various pin sizes and wedge locks. Having common sizes on hand prevents the urge to use inferior “emergency” repairs that only create more work later. An organized supply of quality terminals and the right tools make electrical troubleshooting a routine task rather than a major ordeal.

Proper electrical maintenance is the silent partner of successful field operations. By standardizing on professional-grade Deutsch connectors, common field failures become a thing of the past. Invest in the right tools and components today to ensure the equipment remains ready to perform when the season demands it most.
