6 Best Coupling Alignments For Custom Irrigation Pump Systems

An irrigation pump failure during the heat of July can turn a thriving vegetable patch into a dust bowl in a matter of days. Keeping water flowing relies on the invisible connection between the motor and the pump, where the coupling works tirelessly to transfer power. Choosing the right mechanism ensures that equipment lasts for seasons, not just weeks.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Jaw Coupling: The Versatile All-Rounder Pick

The jaw coupling acts as the workhorse for many hobby farm irrigation systems, utilizing a flexible elastomer “spider” insert between two metal hubs. This design is exceptionally forgiving when it comes to minor shaft misalignments, absorbing the vibrations that often plague small, motor-driven pumps. It acts as a mechanical fuse, protecting the motor if the pump suddenly seizes due to debris.

Expect a long service life with minimal maintenance beyond occasional visual checks of the rubber insert for signs of cracking. It operates quietly and requires no lubrication, making it ideal for pumps located near animal housing or high-traffic areas. Because of its simplicity, it is often the most cost-effective choice for standard centrifugal pumps used in garden irrigation.

Choose this for standard 1 to 5 horsepower setups where maintenance accessibility is limited. It provides the best balance of longevity and simplicity for those who want to set the system up and forget about it until winterization. If the current setup is a basic motor-and-pump pairing, this is the default recommendation.

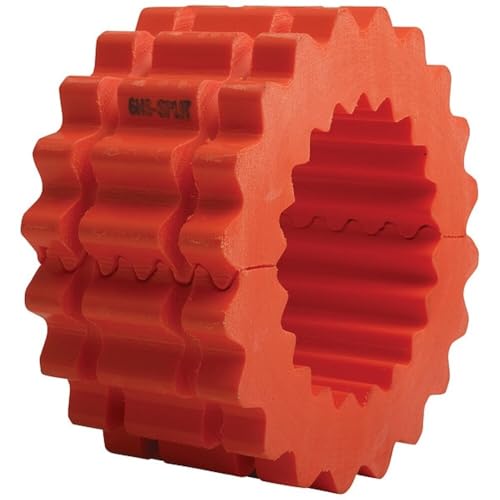

Sleeve Coupling: Easiest for Quick DIY Setups

Sleeve couplings represent the simplest form of power transmission, consisting of a rubber or plastic sleeve that slides over the ends of the two shafts. Installation involves nothing more than sliding the sleeve into position and securing it with hose clamps or set screws. This makes it an excellent choice for temporary setups or emergency repairs when specialized tools are unavailable.

These couplings excel in light-duty applications where torque demands are low. They offer a degree of dampening that helps smooth out the startup torque of smaller electric motors. However, they are not designed for high-horsepower or high-speed operations and will eventually degrade if exposed to constant, intense torque or outdoor UV light.

This option is perfect for small hobby setups, such as rain barrel transfer pumps or low-pressure drip irrigation lines. If the pump system is built from repurposed parts or requires frequent modifications, the sleeve coupling provides unmatched ease of assembly. It is not suitable for heavy-duty well pumps or commercial-grade irrigation systems.

Grid Coupling: Best for Heavy-Duty Performance

For pumps that run for hours every day to manage large orchard plots or livestock watering troughs, the grid coupling provides the necessary ruggedness. Its metal grid design bridges the gap between the shafts, providing a high degree of shock absorption against surges in water pressure. It is built to withstand significant torque, making it a reliable choice for larger engine-driven systems.

Unlike basic rubber inserts, the metal grid is designed to handle high loads while maintaining a degree of flexibility. This protects the internal bearings of both the pump and the motor from excessive wear caused by constant pressure fluctuations. It is a more complex piece of engineering, meaning it requires regular greasing to keep the grid flexible.

Choose this if the pump is rated for high horsepower and faces regular “water hammer” effects or rapid startup sequences. It is the premier choice for the farmer who prioritizes mechanical longevity over initial simplicity. For heavy-duty irrigation setups, the extra cost and maintenance of a grid coupling are well-justified investments.

Rigid Flange Coupling: For Perfect Alignments

Rigid flange couplings are heavy, bolted plates that lock the motor and pump shafts together in a perfectly straight line. Because they have zero flexibility, they transfer every bit of torque directly from the motor to the pump. This configuration is only suitable when the motor and pump are mounted on a perfectly level, steel baseplate that prevents any movement or twisting.

The advantage of this rigidity is the elimination of vibration caused by shaft displacement. However, it demands precise laser or dial-indicator alignment to ensure the shafts are perfectly concentric. Even the slightest deviation will lead to premature failure of the shaft seals and bearings, resulting in leaks and costly downtime.

Use this only for permanent, high-precision pumping installations where the base is welded or bolted into concrete. It is generally overkill for most hobby farming applications and often causes more trouble than it solves for the average DIY project. Unless the equipment is professionally installed on a rock-solid foundation, look elsewhere.

Gear Coupling: Top Choice for High-Torque Pumps

Gear couplings use internal teeth to mesh with external gears on the shafts, allowing for massive power transfer in a compact space. They are the gold standard for high-torque applications, such as heavy-duty irrigation systems that push water over long distances or uphill. The design is robust, handling heavy loads while allowing for a small amount of thermal expansion in the shafting.

While they are highly durable, they are also demanding regarding maintenance. They must be filled with the correct type of grease and periodically serviced to prevent the teeth from grinding. They are also significantly more expensive than jaw or sleeve couplings, placing them firmly in the “specialized equipment” category.

This is the right choice for the serious hobby farmer managing significant acreage with a multi-stage pump system. It is not intended for light or medium-duty irrigation tasks. If the pump requires serious power to keep the crops alive, the gear coupling provides the reliability needed to prevent total irrigation failure.

U-Joint Coupling: Solves Awkward Angle Issues

Sometimes, the pump and motor simply cannot be aligned perfectly due to space constraints or the geometry of the mounting location. The U-joint (universal joint) coupling allows for the transmission of power even when the shafts are set at an offset angle. This is the only practical solution when working with PTO-driven pumps or awkwardly placed hydraulic motors.

These couplings are mechanically complex and can introduce vibrations if the angle is too extreme. They require frequent lubrication, especially when operating in dusty or muddy field conditions. They should be shielded to protect them from dirt ingress, which will quickly destroy the needle bearings within the joint.

Use a U-joint only when structural alignment is physically impossible to achieve. It is a problem-solver for custom configurations where the motor is mounted slightly off-axis from the pump intake. If there is room to align the shafts properly, always choose a standard coupling over a U-joint.

Choosing a Coupling for Your Pump’s Horsepower

Matching the coupling to the motor’s power is the most critical step in avoiding mechanical failure. A coupling that is too small for the horsepower rating will experience “torsional wind-up” and snap under the torque load. Always consult the manufacturer’s service factor charts; these account for the strain of daily starts and stops rather than just raw, steady-state horsepower.

Consider the startup characteristics of the motor, as some pumps require a significant initial kick to get water moving. A motor that draws high current upon startup creates a shock load that can instantly shatter a weak coupling. It is always better to slightly oversize the coupling than to push a lower-rated unit to its maximum limit.

Evaluate the environment as well, as outdoor temperatures and debris affect the lifespan of rubber or plastic components. A coupling rated for 5 horsepower in a clean, indoor shop might fail within months when exposed to the heat and grit of a pump station near a field. Always err on the side of durability when the system is critical to crop survival.

Why Proper Pump Alignment Is So Important

Pump alignment refers to the exact centering of the motor shaft with the pump input shaft. When these two are misaligned, the energy meant to pump water is instead funneled into the bearings as friction and heat. This leads to accelerated wear, seal leaks, and eventually, the failure of the pump’s internal impeller assembly.

Even “flexible” couplings have limits to how much misalignment they can handle. Treating them as a cure for poor mounting practices is a common and expensive mistake. Properly aligned pumps run smoother, quieter, and consume less electricity, which adds up to significant savings over the course of a long growing season.

Think of alignment as the foundation of the entire irrigation system. If the foundation is crooked, no amount of high-end parts will keep the system running reliably. Spending an extra hour during the installation phase to ensure shafts are concentric saves days of frustration and repair bills later.

A Simple Straightedge Method for Alignment

For most hobby farming applications, a high-quality, perfectly straight steel ruler provides sufficient accuracy for aligning shafts. Place the edge of the ruler across the outer diameter of the coupling hubs at 90-degree intervals. If the ruler lays flat against both hubs without gaps, the shafts are parallel and properly aligned in that plane.

Repeat this process horizontally and vertically to ensure the shafts are centered from both perspectives. If there is a visible gap, use shims—thin metal sheets—under the motor or pump mounts to raise or shift them until the alignment is true. Never use paper or cardboard for shims, as these compress over time and will cause the alignment to drift.

Check the gap between the faces of the two hubs as well, using a feeler gauge to ensure the spacing is uniform all the way around. The goal is to reach a state where the shafts move freely by hand without binding. Once this is achieved, tighten all mounting bolts and verify the alignment one last time, as tightening can sometimes cause the assembly to shift.

Signs of Misalignment: What to Look and Listen For

The first sign of a misaligned pump is often an unusual, high-pitched whine or a rhythmic thumping noise coming from the coupling area. If the pump is bolted to a concrete pad, feel for excessive vibration by placing a hand on the motor housing during operation. A properly aligned pump should run with a steady, smooth hum; anything else indicates trouble.

Leaking seals are another frequent, non-obvious indicator of misalignment. When a shaft is forced to spin slightly off-center, it wobbles inside the seal, eventually opening a gap that allows water to spray out. If a seal is replaced and begins leaking again within a few weeks, the issue is almost certainly a misalignment rather than a faulty part.

Keep an eye on the coupling insert itself if a flexible jaw or sleeve is used. If there is black “dust” or shredded rubber building up on the base, the coupling is failing due to excessive movement. Replacing the insert is a temporary fix; until the underlying alignment issue is addressed, the new part will also fail rapidly.

Properly coupling a pump is the difference between a reliable irrigation setup and a constant source of stress. By choosing the right mechanism for the workload and taking the time to ensure the shafts are perfectly aligned, you secure the water supply that sustains your farm throughout the season. Invest the time now, and you will save your back and your budget when the summer heat arrives.
