6 Best Brake Shoe Mounting Hardware For Diy Brake Jobs

There is nothing quite as frustrating as hauling a trailer full of hay or equipment through a muddy field, only to have the brakes drag or lock up due to neglected, rusted springs. Tackling a DIY brake job on an old truck or utility trailer saves hundreds in shop fees, provided the internal hardware is refreshed along with the shoes. Choosing the right mounting kit ensures that the stopping power is consistent and reliable when navigating uneven terrain.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

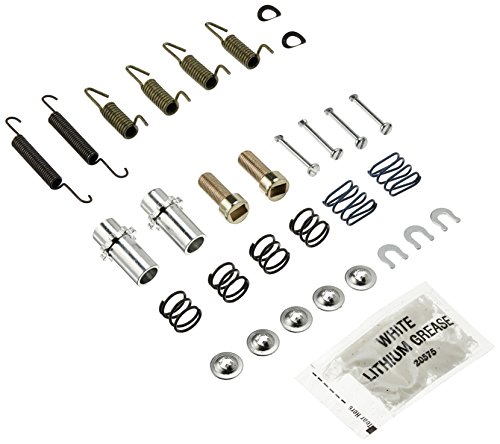

Carlson H7348: Best Overall Hardware Kit

When working on light-duty trucks and utility vehicles, consistency is the goal. The Carlson H7348 stands out because it offers a comprehensive selection of springs, clips, and pins that match the original factory specifications almost perfectly. It avoids the common pitfall of “universal” kits that require minor, annoying modifications during installation.

This kit is designed for the mechanic who wants a trouble-free afternoon in the barn without mid-job trips to the auto parts store. The metal quality holds up well against the moisture and road salt frequently encountered in rural environments. For general-purpose farm vehicles that see regular, moderate use, this is the most reliable choice.

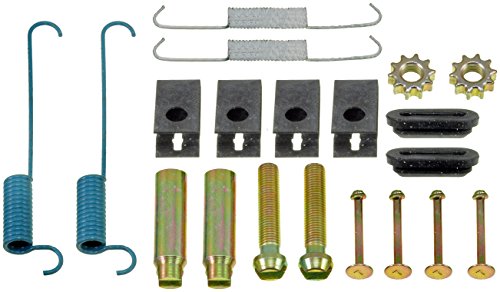

Dorman HW7318: Top Kit for Domestic Trucks

Heavy-duty domestic trucks used for hauling livestock or oversized loads put immense strain on drum brake components. The Dorman HW7318 is built to handle the higher thermal load and vibration that accompanies frequent towing. The components feel robust, providing the necessary tension to keep brake shoes seated correctly over long work cycles.

This kit is recommended for owners of older Ford or Chevy pickups who need parts that mirror the heavy-duty nature of their machines. While these springs are stiffer and slightly more challenging to install, the trade-off is a much more secure brake shoe setup. If the primary objective is durability under heavy load, prioritize this kit.

Raybestos H7303: Pro-Grade Durability Pick

Raybestos has long maintained a reputation for high-quality friction components, and their hardware kits follow that same standard. The H7303 is crafted from high-tensile steel that resists deformation and fatigue better than entry-level alternatives. This is essential for machines that operate in dusty or abrasive conditions where grit often interferes with internal mechanisms.

Professional mechanics often reach for this brand when they need to ensure a job stays done for years rather than months. It is an ideal investment for vintage tractors or farm trucks that are kept in pristine, working condition. If the repair budget allows for a slightly higher price point, the longevity of these components is worth every cent.

Centric 118.62035: Best Value Parts Option

Not every brake job requires top-tier materials, especially on utility trailers that see limited annual mileage. The Centric 118.62035 provides all the necessary hardware at a price point that keeps maintenance costs low for multiple implements. While the finish might not be as corrosion-resistant as premium options, the fitment remains precise.

These kits are a smart selection for the hobby farmer juggling several pieces of aging equipment simultaneously. They provide enough tension and stability for occasional use without inflating the cost of a fleet-wide maintenance cycle. For a trailer used only during harvest season, this value option is highly practical.

ACDelco 18K1785X: GM Original Equipment Choice

When working on a vehicle that stays in the family for decades, original equipment (OE) parts provide peace of mind that aftermarket alternatives cannot always match. The ACDelco 18K1785X is identical to the hardware that came off the assembly line, ensuring perfect fitment without any guesswork. This is the gold standard for restoring a classic GM truck back to its intended performance.

Choosing OE hardware eliminates the risk of slight sizing discrepancies that can lead to uneven brake wear or rattling. While it may cost more, the reduction in installation time and the guarantee of factory compatibility are significant advantages. For a reliable, no-nonsense restoration, go with this kit.

Bendix H7341: Trusted Name for Classic Cars

Classic farm vehicles and older service trucks require hardware that meets older manufacturing standards. Bendix is a legacy name in the braking industry, and their H7341 kit is designed specifically for those older drum brake systems. It provides the right balance of tension for systems that lack modern self-adjusting features.

If there is an older, prized work truck on the property, Bendix components preserve the integrity of the original system. They are engineered to work in harmony with older drum designs that modern “one-size-fits-all” kits often miss. This is the preferred choice for those dedicated to keeping vintage equipment performing at its peak.

How to Pick the Right Brake Hardware Kit

Selecting the correct kit starts with identifying the specific brake drum diameter and shoe width of the vehicle. A mismatch of even a few millimeters can lead to excessive drag, overheating, or a complete failure of the braking system. Always consult the vehicle’s service manual or a digital database using the Vehicle Identification Number (VIN) to verify exact part requirements.

Consider the environment in which the vehicle operates as well. If the vehicle spends time on salty roads or in wet pastures, prioritize kits featuring zinc-coated or powder-coated components to prevent premature rusting. Never assume that hardware from a similar model year will suffice, as manufacturers often change brake specifications mid-production.

Why Replacing Hardware with Shoes is a Must

Many DIYers make the mistake of replacing brake shoes while reusing old, stretched-out springs and clips. Over time, metal springs lose their “memory” and tension, which prevents the shoes from returning to their home position after the brake pedal is released. This leads to premature shoe wear, reduced fuel efficiency, and unnecessary heat buildup in the wheel hub.

Fresh hardware ensures that the return springs pull the shoes back precisely, maintaining the correct clearance within the drum. Failing to replace these components is a false economy that undermines the effectiveness of the new, expensive brake shoes. Treat hardware as a mandatory consumable during every major brake service.

Key Components in a Brake Shoe Hardware Kit

A standard drum brake hardware kit contains more than just the visible springs. Look for the hold-down pins, which secure the shoes against the backing plate, and the star-wheel adjuster assembly, which manages the gap between the shoe and the drum. A quality kit will also include the various tension springs required to keep the assembly synchronized.

If the kit does not include self-adjuster levers or cable hardware, consider purchasing those items separately if they show any signs of wear. Damaged or seized adjusters are the most common cause of “mushy” brake pedals. Checking these small components ensures the entire system functions as a cohesive unit.

Safety Tips for Handling High-Tension Springs

The springs found in drum brakes are under high tension and can be unpredictable during removal and installation. Always wear eye protection when working with these components, as a slipping spring can travel at significant velocity. Utilizing a dedicated brake spring tool is essential for providing enough leverage to seat the springs without damaging the surrounding metal.

Never attempt to pry these springs into place with a standard flathead screwdriver, as the tool is likely to slip and cause injury. Secure the vehicle on proper jack stands before removing the wheels, and ensure the parking brake is fully disengaged to prevent the assembly from binding. Patience and the right tool set will prevent both personal injury and damage to the brake components.

Regular maintenance of a vehicle’s braking system is a critical component of farm safety and operational efficiency. By investing in the correct hardware and replacing it alongside worn brake shoes, one ensures that equipment remains reliable for the long haul. A small amount of attention to detail today prevents the headache of a roadside breakdown tomorrow.
