6 Best High Voltage Coils For Cold Weather Engine Starting

When the mercury dips below freezing, nothing kills productivity faster than a stubborn tractor that refuses to turn over. A weak spark in a cold, fuel-saturated engine is the primary culprit behind those frustrated mornings spent cranking away while the livestock wait for their feed. Investing in a high-voltage ignition coil transforms these temperamental machines, ensuring they fire up on the first or second rotation regardless of the winter chill.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

MSD Blaster 2 Coil: The All-Around Performer

The MSD Blaster 2 is arguably the most recognizable name in ignition upgrades, and for good reason. It offers a significant step up in voltage output compared to standard factory coils, making it a reliable choice for general-purpose farm equipment. The oil-filled metal canister design provides excellent heat dissipation, which is vital for machines that run for extended periods during haying or clearing work.

This coil is best suited for tractors that see regular, moderate duty cycles throughout the year. It bridges the gap between basic replacement parts and high-end racing components without overcomplicating the electrical system. If the goal is a dependable, all-weather starter that fits into existing ignition setups without custom modifications, this is the definitive choice.

Accel SuperCoil: Maximum Voltage for Hard Starts

When an engine suffers from high compression or worn-out components, it demands more energy to force a spark across the gap. The Accel SuperCoil is engineered specifically for these taxing conditions, delivering high-intensity voltage that burns through carbon buildup and fuel-rich mixtures. It provides the aggressive spark needed to wake up an engine that has been sitting in a damp barn for months.

Choosing this coil is a strategic move for older, higher-mileage tractors that traditionally struggle to catch. While it is more expensive than standard replacements, the investment pays off in saved starter motors and reduced battery strain. For any farmer dealing with an engine that requires excessive cranking to fire, the Accel SuperCoil provides the necessary electrical brute force.

Pertronix Flame-Thrower II: For Vintage Engines

Owners of classic tractors often struggle to balance the desire for modern reliability with the need to maintain an authentic, vintage aesthetic. The Pertronix Flame-Thrower II excels here, as it is designed to work seamlessly with electronic ignition conversions without sacrificing the traditional look. It delivers a hotter spark while maintaining the correct resistance levels required by older ignition modules.

This coil is the industry standard for those running Pertronix Ignitor kits in antique powerhouses. It eliminates the compatibility headaches that arise when mixing modern coils with legacy internal components. For a vintage restoration project that needs to pull its weight in the field every winter, the Flame-Thrower II is the most logical and reliable path forward.

Dragon Fire High Energy: Best OEM-Style Upgrade

Sometimes the simplest solution is the best, especially when keeping a budget-friendly tractor running on a tight schedule. Dragon Fire coils offer a “factory-plus” experience, providing improved output over standard equipment while utilizing the same mounting points and electrical connections. These are excellent for farmers who need a quick, bolt-on repair that doesn’t require custom wiring or specialized mounting brackets.

The value here lies in the consistent performance across the entire RPM range. These coils aren’t intended for high-performance builds, but they are perfectly optimized for the daily grind of small-scale agriculture. If a stock coil has failed and a cost-effective, immediate improvement is required, the Dragon Fire is the reliable workhorse of the bunch.

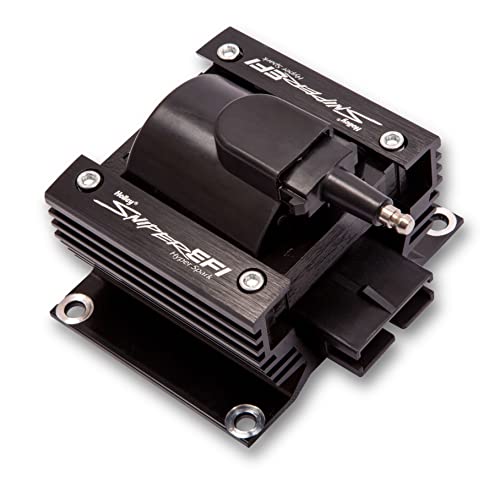

Holley HyperSpark Coil: For EFI Converted Rigs

As more hobby farmers upgrade their older engines with modern Electronic Fuel Injection (EFI) kits, the ignition requirements change accordingly. The Holley HyperSpark system is purpose-built to integrate with these digital management systems, ensuring precise timing and maximum voltage output. It is far more than a simple coil; it is a component of a larger, integrated ignition architecture.

This coil is not for a basic points-style ignition system; it requires the accompanying HyperSpark components to function correctly. However, for a tractor that has undergone an EFI conversion for better fuel efficiency and starting, this is the essential missing piece. If the machine is already sporting a modern fuel management system, this coil is the only logical upgrade for maintaining that precision.

D.U.I. LiveWires Coil: Top Pick for V8 Tractors

Large-displacement tractors or heavy-duty machinery running V8 powerplants require a specialized approach to ignition. D.U.I. (Davis Unified Ignition) provides high-output solutions that can handle the increased load of larger engines under heavy cold-weather operation. These coils are known for their durability and their ability to keep a consistent, massive spark going even under high-load, low-temperature scenarios.

The D.U.I. coil is built for the “big iron” on the farm that handles heavy plowing and ground-engaging tasks. It is robust, vibration-resistant, and designed to survive in the harsh environment under a tractor hood. If the machine is a high-displacement beast that needs to move serious weight in freezing temperatures, this is the heavy-duty solution required.

How to Pick the Right Coil for Your Old Tractor

Choosing the correct coil starts with understanding the ignition system currently installed. Points-style systems have strict requirements regarding primary resistance, and installing a low-resistance coil intended for electronic ignition can melt the ignition switch or burn out the points. Always verify the manufacturer’s resistance requirements before purchasing.

Consider the following before making a final decision: * Voltage Requirements: Does the tractor use a 6-volt or 12-volt system? * Ignition Type: Is it still running mechanical points, or has it been upgraded to electronic ignition? * Mounting Space: Does the new coil fit the existing bracket, or will it require custom hardware? * Resistor Needs: Does the system require an external ballast resistor to protect the coil from overheating?

Installing Your New Coil: Safety and Best Practices

Installation is usually straightforward, but skipping safety steps leads to electrical fires or engine damage. Always disconnect the battery before handling ignition wires, and ensure all connections are clean and tight. Corrosion on old ring terminals creates resistance, which negates the benefits of a high-voltage coil; replacing those crusty terminals is just as important as upgrading the coil itself.

When mounting the new unit, ensure the coil is positioned in a way that avoids excessive heat from the exhaust manifold. If using an oil-filled canister coil, keep it mounted vertically whenever possible to prevent internal overheating and potential leaks. Double-check the wiring polarity—swapping the positive and negative terminals will lead to a weak spark and potential damage to electronic modules.

Beyond the Coil: Other Cold Start Improvements

A high-voltage coil cannot overcome fundamental mechanical neglect. If the battery is weak, the cables are corroded, or the starter is sluggish, the engine will still fail to start regardless of how good the spark is. Focus on the “big three” of cold starting: clean battery terminals, high-quality heavy-gauge battery cables, and the correct viscosity of engine oil for the winter season.

The spark plugs themselves are the final link in the chain. Even the most powerful coil will struggle if the plugs are fouled with carbon or the gap is improperly set. Ensure the plugs are fresh, the gap is within specifications, and the ignition wires are free of cracks or brittle insulation. A holistic approach to the entire ignition and starting system ensures the tractor starts instantly, even when the wind chill is biting.

Coil Resistance Explained: Primary vs. Secondary

Understanding resistance is key to preventing electrical failure. The primary resistance—measured across the small terminals—dictates how much current flows from the battery, while the secondary resistance—measured from the primary terminal to the high-voltage tower—determines the spark’s potential. Too little primary resistance pulls too much current and will destroy points or electronic ignitions in short order.

Always match the coil’s internal resistance to the needs of the ignition system. If the system specifies a 1.5-ohm coil, using a 0.6-ohm racing coil will cause the ignition module to overheat. When in doubt, consult the manufacturer’s documentation for the specific resistance range recommended for the tractor’s setup. Proper matching ensures a strong, consistent spark without jeopardizing the long-term health of the ignition components.

Proper ignition is the difference between a farm that runs like clockwork and one that loses half a day to simple mechanical failure. By selecting the right coil and ensuring the rest of the electrical path is maintained, the stress of cold-weather maintenance becomes a manageable task rather than a seasonal hardship.

Frequently Asked Questions (FAQs)

What is a high voltage ignition coil for cold weather engine starting?

A high voltage ignition coil for cold weather engine starting is an ignition transformer designed to produce between 40,000 and 55,000 volts to ignite dense, cold fuel-air mixtures. Standard factory coils typically yield 20,000 to 30,000 volts, which can struggle when fuel fails to vaporize properly below freezing. The higher voltage ensures a hot, sustained arc across spark plug gaps, directly compensating for lower battery cranking power during freezing conditions.

What does high secondary voltage do during subzero cold weather engine starting?

High secondary voltage forces electrical current across the spark plug gap even when cold cylinder pressures and unvaporized fuel droplets increase electrical resistance. Gasoline atomizes poorly at subzero temperatures, requiring more energy to bridge the gap and ignite. A coil that sustains 45,000 volts cuts cranking duration by several seconds, reducing strain on the starter motor. For example, engines using high-output coils experience fewer unburnt fuel deposits on cold plug tips.

How do I test a high voltage coil for cold weather engine starting on an older truck?

Testing a high voltage coil requires measuring primary and secondary circuit resistance with a digital multimeter set to the ohms scale. Disconnect the coil wiring, place the meter probes across the primary terminals to check for 0.4 to 2.0 ohms, and measure from the primary positive to the high-tension tower for 6,000 to 15,000 ohms. Compare your readings against the manufacturer specifications printed on the coil body. Significant deviation or an open circuit reading indicates internal breakdown that will cause misfires when the temperature drops.

How do I install an aftermarket high voltage coil to improve cold weather engine starting?

Installing an aftermarket high voltage coil involves disconnecting the negative battery cable, labeling the original terminal wires, and securing the new unit to the factory bracket. Connect the positive ignition lead and negative trigger wire to their designated terminals, ensuring tight contact to avoid voltage drops. Verify whether your aftermarket coil requires an external ballast resistor, as running a high-output unit without specified resistance can overheat the module. Finally, inspect the coil-to-distributor wire boot to prevent moisture entry before cold snaps arrive.

Canister-style high voltage coils vs modern coil-on-plug systems: which is better for cold weather engine starting?

Modern coil-on-plug systems perform better for cold weather engine starting than traditional canister-style coils because each cylinder receives dedicated voltage without energy loss through spark plug wires. Coil-on-plug designs sit directly over the spark plug, delivering immediate 30,000 to 50,000-volt discharges with less resistance. Canister coils must push energy through a distributor cap and long plug wires, which can bleed spark voltage during humid, freezing mornings. Older vehicles running distributors, however, benefit significantly by swapping an aging canister coil for a 45,000-volt performance model.

How much does a high voltage coil cost for reliable cold weather engine starting?

Replacement high voltage coils for reliable cold weather starting typically cost between $40 and $120 for an individual canister or single performance coil. Full replacement sets for modern coil-on-plug V6 or V8 engines range from $150 to $400 depending on the vehicle brand. Premium brands like MSD, Accel, or Pertronix cost more upfront but provide heavy-duty epoxy potting that resists thermal shock in sub-zero environments. Budget an extra $15 for silicone dielectric grease to seal connections during assembly.

Why does an engine with a high voltage coil still crank slowly or fail to start in cold weather?

Slow cranking or starting failure despite having a high voltage coil usually points to a weak 12-volt battery, thick engine oil, or degraded spark plug wires. Automotive batteries can lose up to 50 percent of their cranking amperage at 0 degrees Fahrenheit, which starves the ignition module regardless of coil capability. Using heavyweight oil such as 20W-50 increases internal engine drag, making turning the crank harder. Check your battery terminal voltage under load with a voltmeter; readings below 9.6 volts during cranking explain failed cold starts.

Is upgrading to a high voltage ignition coil worth it for daily drivers in extreme cold climates?

Upgrading to a high voltage ignition coil is worth the investment for older or carbureted vehicles operating regularly below freezing temperatures. Carburetors and early fuel injection setups cannot meter cold air-fuel mixtures as accurately as modern direct-injection systems, making a stronger ignition spark essential to prevent flooded cylinders. Modern stock vehicles in good repair see modest gains, but drivers in areas with temperatures below minus 10 degrees Fahrenheit gain faster ignition catches and reduced starter wear.
