6 Best Motor Speed Controllers For Small Scale Processing Equipment

Processing equipment is the backbone of a productive homestead, turning raw harvests into shelf-stable goods with efficiency. When the motor on a grain mill, cider press, or small-scale auger struggles to keep up, the right speed controller becomes the difference between a productive weekend and a frustrating mechanical failure. Selecting the correct drive ensures machinery runs at optimal torque rather than simply stalling under load.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

KBAC-27D Hybrid Drive: Best for Washdown Areas

In environments where food safety is paramount, moisture and dust are the natural enemies of electronic controls. The KBAC-27D stands out because it features a NEMA 4X rated enclosure, specifically designed to withstand direct hose-downs and messy processing areas. This hybrid drive essentially acts as a bridge between the simplicity of a DC controller and the power of an AC variable frequency drive (VFD).

For equipment like vegetable washers or stainless steel processing tables, this is the gold standard. It allows you to dial in precise speeds without worrying about the ambient humidity of a wash-pack station killing the electronics. While it carries a higher price tag than basic hobbyist controllers, the durability in wet conditions is unmatched.

If the workspace involves frequent cleaning or high humidity, look no further. It is a robust investment that eliminates the need for expensive secondary enclosures or delicate mounting locations.

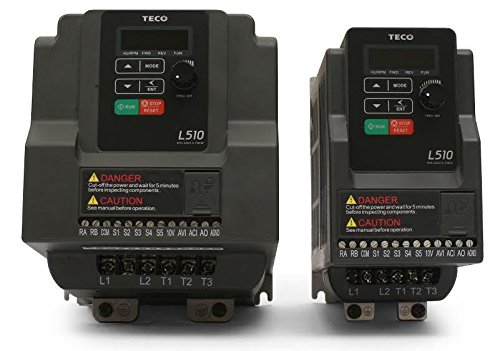

Teco L510 VFD: Most Versatile for AC Motors

The Teco L510 is a compact, high-performance VFD that turns standard three-phase AC motors into highly controllable power plants. It is widely favored for its ability to provide constant torque at lower speeds, which is essential for gear-heavy equipment like meat grinders or small batch mixers. Its internal parameters are deeply customizable, allowing for soft starts that prevent sudden mechanical shocks to aging equipment.

This unit excels when a farmer needs to adapt a motor to a specific task that requires variable output. Whether controlling the throughput of a seed cleaner or the agitation speed of a cream separator, the L510 provides steady, reliable frequency adjustment. It is a true workhorse that balances technical depth with a relatively intuitive interface.

For those comfortable with a bit of initial programming, the L510 is a brilliant choice. It transforms standard, inexpensive industrial motors into precision tools capable of handling varied farm production needs.

AutomationDirect GS20: Top Pick for Features

When equipment requires sophisticated automation—such as integrated timers, external sensor feedback, or advanced motor protection—the GS20 is the go-to solution. It offers a wide array of built-in input and output ports, making it ideal for systems that need to react to load changes automatically. It is arguably the most feature-rich option for a small-scale operation looking to scale up.

The drive includes an easy-to-read keypad and clear status monitoring, which is helpful when troubleshooting during a busy harvest season. Because it supports advanced communications, it can eventually be tied into broader digital control systems if the farm’s technical requirements expand. It isn’t just a motor controller; it is an infrastructure component.

This controller is recommended for the serious hobbyist who demands precision and expandability. If the goal is to build a system that grows in complexity alongside the farm, the GS20 justifies every penny of its cost.

KB KBMG-212D DC Drive: For Heavy-Duty Tasks

The KBMG-212D is a regenerative DC drive, meaning it can both power a motor and handle the energy created when a heavy load slows down. For equipment involving large inertia, such as high-capacity feed mixers or grain augers, this is the safest and most efficient way to manage motor braking. It prevents the surging and uncontrolled stopping that can damage drive belts and internal gears.

Because it is a modular, open-frame design, it requires a protective cabinet, but its performance in continuous-duty applications is legendary. It is designed for longevity and can handle the rough, stop-and-start nature of daily agricultural processing. It feels like a piece of industrial gear that was scaled down for a workshop, rather than a consumer-grade toy.

This is the right choice for heavy-duty, stationary machinery that runs for long periods. Do not consider this for light-duty chores; it is overkill. However, for the serious user managing heavy loads, it is an essential piece of hardware.

DROK 2000W PWM Controller: Best Budget DC Option

For simple, low-cost projects like powering a small fan, a low-draw pump, or a custom-built agitator, a Pulse Width Modulation (PWM) controller like the DROK 2000W is surprisingly effective. It works by rapidly switching the power on and off to control the motor speed, which is an efficient way to manage DC motors without significant heat loss. The unit is compact and incredibly easy to wire into a simple project box.

Be mindful that these are not meant for high-torque startups under heavy load. They are best suited for applications where the load is light and constant. For the price, it is an unbeatable way to add speed control to a basic DIY project without complex programming or high voltage requirements.

This controller is strictly for the hobbyist on a budget. It is not an industrial solution, but for light-duty automation around the workshop or greenhouse, it provides all the functionality needed to get the job done.

RioRand PWM Controller: Easiest for Beginners

The RioRand PWM controller is the entry-level standard for those new to electrical modifications. Its wiring layout is minimal—usually involving just two wires in and two wires out—making it nearly foolproof to install on small 12V or 24V DC motors. It lacks the bells and whistles of the industrial drives mentioned above, but that simplicity is its greatest strength.

It is ideal for building small prototypes or adapting off-the-shelf fans and pumps for custom irrigation or ventilation setups. When the primary requirement is simply “making it go slower,” this unit is the most accessible path forward. The build quality is decent for its price point, provided it is kept in a dry, dust-free environment.

If a project needs to be finished in an hour, choose the RioRand. It is the perfect starting point for learning the basics of motor control. Save the more complex drives for when the technical requirements of the machine actually demand them.

How to Choose: AC Drive vs. DC Controller

Choosing between AC and DC systems usually begins with the motor you already have or the power available in the workspace. AC drives are typically used with induction motors, which are rugged, common in industrial settings, and low-maintenance. DC controllers are better suited for permanent magnet motors, which offer higher torque at low speeds but often require more frequent maintenance, such as brush replacements.

If the goal is long-term reliability for heavy processing, an AC induction motor paired with a VFD is the superior route. DC motors are often cheaper and easier to understand for beginners, but they can be a headache as they age. Factor in the long-term accessibility of replacement parts for both the motor and the controller before committing to a specific architecture.

• AC Induction Motors: Higher durability, less maintenance, but requires VFDs for speed control.
• DC Motors: Higher starting torque, easier to control with simple PWM, but requires more frequent mechanical attention.

Matching a Controller to Your Motor’s Specs

A controller is only as good as its match to the motor’s nameplate data. Never select a controller based on a rough estimate of horsepower; instead, verify the Full Load Amperage (FLA) rating on the motor. The controller must be rated to handle that amperage continuously, or it will overheat and fail prematurely, regardless of its features.

Always check the voltage requirements of both the motor and the power source. An error here isn’t just a blown controller—it is a significant fire risk. Furthermore, consider the duty cycle of the machine. If the motor runs for eight hours straight during a harvest, the controller needs to be de-rated, meaning you should purchase a controller with a higher amperage rating than the motor actually pulls to ensure it runs cool under load.

Critical Safety Tips for Wiring and Setup

Electricity and moisture are a dangerous combination on any farm. Always use properly grounded circuits, and install a dedicated emergency stop button that cuts power completely before the controller. Fuses or circuit breakers should be installed between the power source and the controller to protect against internal shorts.

Never attempt to modify a controller’s internal circuitry while it is powered. Always wait several minutes after disconnecting power for the internal capacitors to discharge, as these can hold a lethal charge even after the unit is unplugged. If you are uncertain about the wiring diagram, consult a qualified electrician; the cost of a professional review is far lower than the cost of an electrical fire or injury.

Why Enclosures Are Not an Optional Accessory

An enclosure is the first line of defense against the harsh realities of farm life. Dust from milled grain or the fine mist of a vegetable cleaner can wreak havoc on printed circuit boards, leading to short circuits and erratic motor behavior. Even if the controller is in a relatively clean area, a NEMA-rated enclosure provides essential protection against accidental contact with live electrical terminals.

Select an enclosure that allows for adequate ventilation or heat dissipation. Sealed units are excellent for dirty environments, but they can cause a controller to overheat if the motor is working hard for extended periods. When mounting, ensure the enclosure is off the floor to prevent damage from water pooling or accidental kicks, and always use strain reliefs on any cables entering the box to prevent wires from pulling loose over time.

Selecting the right controller is about matching technical capability to the specific realities of your homestead operation. Whether opting for a heavy-duty industrial drive or a budget-friendly PWM unit, prioritize durability and safety to ensure your equipment remains a reliable asset for years to come.
