6 Best Electromagnetic Relays For Heavy-Duty Irrigation Valves

Nothing stops a morning routine faster than walking out to find a field of thirsty vegetables and a silent irrigation pump. Heavy-duty valves often demand more power than standard irrigation controllers can provide, leading to burnt-out boards if the load isn’t isolated correctly. Selecting the right electromagnetic relay bridges this gap, ensuring the controller sends the signal while the relay handles the heavy lifting of the pump or high-pressure valves.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Schneider Electric RXM4AB2BD: Best Overall Relay

When reliability is the top priority for a multi-acre hobby plot, the Schneider Electric RXM4AB2BD stands out as the industry standard. It features a robust design capable of handling high-duty cycles without the chatter or contact welding common in cheaper generic alternatives. This relay provides the peace of mind that a scheduled watering cycle will actually trigger, regardless of ambient temperature or humidity fluctuations in a pump house.

The plug-in terminal design allows for rapid replacement if a surge eventually takes its toll. While it sits at a higher price point than basic hobby-grade hardware, the longevity of the contacts makes it the most economical choice over a five-year window. For those managing permanent crops where consistent hydration is non-negotiable, this is the definitive investment.

Omron G2R-1-SND: Most Reliable on a Budget

For the farm setup that needs dependable performance without overspending, the Omron G2R-1-SND is the go-to solution. It includes a built-in LED indicator and a test button, which simplifies troubleshooting significantly when a zone fails to fire. Being able to manually actuate the relay during maintenance is a massive time-saver compared to digging through controller menus.

Its compact footprint is ideal for cramped electrical boxes mounted on fence posts or shed walls. While it may not have the extreme industrial rating of more expensive models, it handles standard irrigation loads with ease. Choose this relay if the goal is to balance professional-grade reliability with the practical budget constraints of a part-time farm.

IDEC RU2S-D24: Easiest Relay for DIY Setups

The IDEC RU2S-D24 is specifically engineered for straightforward installation and long-term durability. It features a non-polarized coil, which means there is no risk of damaging the relay if the positive and negative wires are swapped during the initial setup—a common pitfall for those wiring their own systems. The contact configuration is clean, accessible, and designed to withstand the vibrations of nearby pump equipment.

The build quality feels substantial in the hand, signaling a level of durability that far surpasses mass-market components found in hardware stores. For the hobby farmer who values a quick, foolproof install, this relay eliminates the guesswork. It is the perfect choice for anyone looking to upgrade a basic system with minimal frustration.

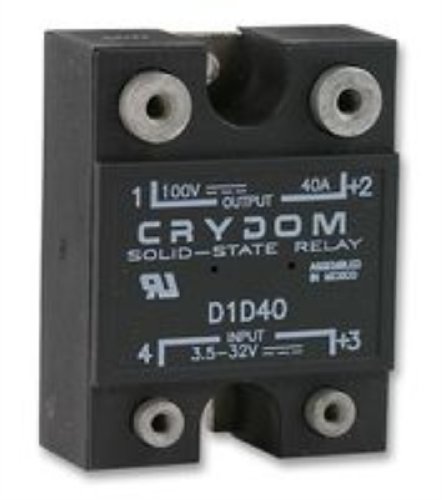

Crydom D1D40: Top Solid State Relay Option

Solid State Relays (SSR) like the Crydom D1D40 represent a significant departure from mechanical electromagnetic relays because they have no moving parts. By utilizing semiconductors to switch the load, they offer near-silent operation and an almost infinite life cycle when properly cooled. Because there are no mechanical contacts to wear out or pit, they are immune to the vibration that often kills traditional relays in pump environments.

However, keep in mind that SSRs require a heat sink for higher amperage draws, as they generate heat during operation. This relay is best suited for tech-savvy farmers who want a “set it and forget it” solution and are willing to handle the slightly more complex installation requirements. If silence and longevity are the primary goals, nothing else competes with the Crydom.

Finder 55.34 Series: Best for Multi-Zone Systems

Managing multiple irrigation zones often leads to a messy cluster of individual relays, but the Finder 55.34 Series offers a versatile, four-pole setup that can consolidate complex wiring. This allows a single relay unit to control multiple valve solenoids simultaneously, keeping the electrical cabinet tidy and organized. The clear housing makes it easy to visually inspect the internal contacts for signs of carbon buildup or overheating.

Its durability is well-documented in agricultural settings where dust and debris are constant variables. The modular nature of the system means that expanding the irrigation network is as simple as adding another socket. For the ambitious gardener managing a variety of crops with different water needs, this is the most scalable option available.

TE Potter & Brumfield T9AS1D12-24: Most Durable

When a relay is exposed to the harsh, unpredictable conditions of a barn or exposed exterior pump shed, the TE Potter & Brumfield T9AS1D12-24 is the toughest contender. This unit is built to withstand higher inrush currents, which is a common failure point for irrigation valves that draw a surge of power upon startup. Its rugged, dust-protected casing prevents the environmental contamination that often leads to premature failure in rural settings.

This is not necessarily the easiest relay to wire, but it is undoubtedly the one most likely to survive a decade of service. If the irrigation setup involves heavy-duty, high-amperage valves or aging solenoid coils, prioritize this unit. It is an industrial-grade workhorse that refuses to quit when the work gets demanding.

How to Match a Relay to Your Irrigation Valve

To successfully match a relay to a valve, one must first determine the voltage of the irrigation controller output, which is typically 24V AC for standard systems. The relay coil must match this control voltage exactly. Furthermore, calculate the total amperage (or VA load) of the solenoids to be powered and ensure the relay contacts are rated for at least 25% higher to handle potential spikes.

Never assume a generic relay can handle the “inrush” current of a large solenoid. Always check the data sheet for the “inductive load” rating, as irrigation valves are inductive, not resistive. Following these simple steps prevents the controller from being fried by a back-EMF surge when the relay switches off.

Safely Wiring Your New Irrigation Pump Relay

Proper wiring always begins with isolating the high-voltage pump circuit from the low-voltage controller circuit. Use a dedicated DIN rail for mounting, as it keeps connections secure and makes maintenance safer. Always install a flyback diode or a snubber across the relay coil terminals if the controller does not have built-in protection; this prevents voltage spikes from traveling backward into the circuit board.

Use high-quality spade connectors with heat-shrink tubing to protect against moisture intrusion. A well-organized, labeled panel is essential for troubleshooting; clear labeling ensures that when a relay eventually fails, the replacement process is a five-minute job rather than an hour of wire-tracing. If in doubt about electrical code requirements in the specific jurisdiction, consult a certified professional before finalizing high-voltage connections.

Troubleshooting Common Irrigation Relay Problems

When a zone stops working, the first step is to listen for a distinct “click” when the controller sends the signal. If the relay clicks but the valve doesn’t turn on, the issue is likely a failure in the output contacts or a loose wire at the valve itself. If there is no click, the fault usually lies within the controller signal or a burnt-out coil inside the relay.

Before replacing the relay, check the solenoid resistance at the valve using a multimeter. A shorted solenoid can draw excessive current and weld the relay contacts shut, creating a “stuck on” condition that causes flooding. When a relay stays stuck on, it is almost always a symptom of a failing valve solenoid rather than the relay itself, so verify both components during the repair.

Protecting Relays from Weather and Power Surges

Irrigation relays are prone to moisture and salt-laden air, both of which accelerate the corrosion of electrical contacts. House all relays in a NEMA 4X-rated enclosure, which provides a watertight seal against rain and pests. Even in a shed, insects are notorious for crawling into open relays and causing shorts, so choose sealed units whenever possible.

Install a surge suppressor at the electrical panel if the irrigation system is located far from the main house. Lightning strikes or grid fluctuations can easily destroy the sensitive coils inside a relay. Proper grounding of the enclosure and the relay base is the final, essential step in protecting the investment against the inevitable electrical challenges of outdoor agricultural operations.

Successful irrigation is the heartbeat of a thriving hobby farm. By choosing the right relay and protecting it properly, you move from constant emergency repairs to a reliable, automated system that supports your crop production all season long.
