6 Best Pilot Lights For Indicating Water Pump Status

Walking out to the barn to find a flooded pump room or, worse, a dry trough because a pump tripped overnight is a rite of passage no hobby farmer enjoys. A simple, reliable pilot light can turn a silent mechanical failure into an immediately obvious signal before the livestock suffer or the basement sustains damage. Getting these small details right is the difference between a minor adjustment and a costly, time-consuming repair project.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Schneider Electric XB5AVB4: Best for Faults

When dealing with a pump that runs intermittently, the most critical signal is often the one that indicates a system trip or motor overload. The Schneider Electric XB5AVB4 is designed specifically for high-visibility warning applications where clarity is non-negotiable. Its robust construction ensures it remains functional in damp, dusty barn environments where lesser components might corrode.

This unit is ideal for hobby farmers who have integrated a thermal overload relay into their pump starter circuit. Because it provides a sharp, unmistakable visual alert, the operator can immediately distinguish between a routine power fluctuation and a genuine mechanical fault.

Invest in this model if the control panel is located in a high-traffic area of the farm shop or pump house. It provides the peace of mind necessary to leave equipment running unattended. It is a premium component that justifies the cost through sheer reliability.

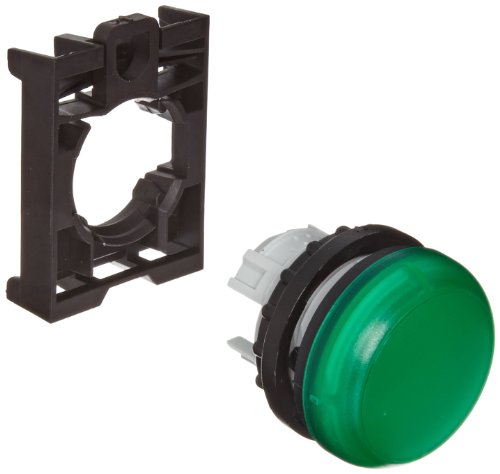

Eaton M22-L-G: Top Pick for “On” Status

Efficiency matters when monitoring a water system that moves hundreds of gallons daily. The Eaton M22-L-G serves as the definitive “pump running” indicator, featuring a vibrant green LED that cuts through dim lighting conditions. Its low-profile design prevents accidental breakage when moving feed bags or tools in tight quarters.

This pilot light is the standard for those seeking a balance between price and industrial-grade toughness. The modular design allows for easy lens replacement if the cover becomes clouded by dirt or chemicals over time. It is straightforward to install and compatible with most standard enclosure knockouts.

Choose this light if the goal is a set-and-forget solution for daily monitoring. It rarely fails, and when it does, the replacement process takes mere minutes. It is the gold standard for simple, green-light operational status.

AD ST-DLM-120G: Best Budget LED Light

Not every pump setup requires an expensive, industrial-rated component to get the job done. The AD ST-DLM-120G offers a practical, wallet-friendly alternative that performs admirably in basic dry-location setups. It provides clear illumination without the overhead of heavy-duty sealing found in more expensive units.

This light works best in enclosed, weather-protected pump rooms where moisture intrusion is not a significant threat. While it lacks the extreme ruggedness of premium brands, it is more than sufficient for standard domestic or small-scale irrigation pumps. It represents a sensible compromise for farmers working within a strict budget.

Use this indicator for non-critical systems where visibility is helpful but not life-or-death. It is an excellent choice for a secondary irrigation pump or a greenhouse water supply line. For the price, it is difficult to find a more dependable visual signal.

A-B 800F-P6G: Most Durable Industrial Pick

When a pump is located in an environment exposed to extreme temperature swings, corrosive cleaning agents, or physical impact, durability becomes the primary requirement. The Allen-Bradley 800F-P6G is built to survive conditions that would destroy standard commercial-grade hardware. Its impact-resistant housing and superior seal ratings make it nearly invincible in agricultural settings.

This unit is specifically for the serious operator who wants to wire a control panel once and never touch it again for a decade. It features a high-intensity light output that remains visible even under direct sunlight or in dusty conditions. It is the choice for outdoor pump enclosures that lack a protective roof or climate control.

Select this pilot light for primary well-pump systems where failure would jeopardize the entire farm’s water supply. While the upfront investment is higher, the long-term savings on replacement parts and downtime are significant. It is a professional-grade solution for those who prioritize reliability above all else.

BACO L21LB10: Ideal for Standby or Warning

Sometimes the need isn’t for an “on” light, but a “standby” or “ready” status indicator. The BACO L21LB10 offers high-quality illumination that is perfect for signaling when a system is powered and waiting for a demand signal. Its design is intuitive, making it easy for anyone on the farm to understand exactly what the pump is doing at a glance.

This light performs exceptionally well when paired with float switches or automated timers. It provides a clear, steady glow that doesn’t overwhelm the user but remains impossible to ignore during a walk-around. The mounting mechanism is secure and resists vibration from nearby pump motors.

If a dual-light setup—one green for running, one amber for standby—is part of the system design, this is the perfect component for the warning signal. It adds a professional touch to any custom pump panel. It is a reliable, versatile choice for complex, automated watering systems.

IDEC HW1L-M111Q4G-A: Brightest 24V AC/DC Light

Low-voltage systems are becoming increasingly popular for their safety and ease of integration with modern pump controllers. The IDEC HW1L-M111Q4G-A stands out as the brightest 24V option available, ensuring the status is visible even in bright daylight. Its high-intensity beam is specifically designed to be seen from a distance.

This model is ideal for farmers using PLC controllers or low-voltage float switches to manage their pump operations. Because it operates on both AC and DC, it offers flexibility if the control scheme changes in the future. The design is sleek, well-engineered, and incredibly long-lasting.

Pick this light if the controller requires a 24V signal and visibility is a concern. It is especially useful in large, open-air equipment areas where the light needs to be spotted from across the yard. This is a high-performance light for a sophisticated, low-voltage control system.

How to Choose the Right Pilot Light Voltage

Choosing the wrong voltage is a common mistake that leads to instant burnout or, at best, a dim, ineffective signal. Always confirm the output voltage of the pump starter or the controller before purchasing a light. Most industrial pumps run on 120V or 240V lines, while automated systems often utilize 24V control circuits.

• 120V/240V: Common for direct-wired applications using standard house current.
• 24V AC/DC: The standard for most modern relay-based control panels and automation sensors.
• Universal Compatibility: Some LED units accept a range of voltages, which provides a safety net against slight fluctuations.

When in doubt, consult the wiring diagram of the pump starter or the relay box. If the pilot light is being wired directly to the pump’s power source, ensure the light is rated for the full line voltage. Installing a 24V light on a 120V circuit will cause an immediate, potentially dangerous failure.

Basic Pilot Light Wiring for Your Pump System

Wiring a pilot light is a fundamental skill that significantly enhances farm safety. In most configurations, the light is wired in parallel with the pump motor. When the starter or contactor closes to supply power to the motor, the circuit to the pilot light completes simultaneously.

For a safety-focused setup, wire the light through an auxiliary contact on the motor starter rather than directly off the main power terminals. This provides a clean signal that the contactor has physically closed. Always use a proper enclosure and conduit to protect connections from moisture and livestock tampering.

Ensure all connections are tightened with a screwdriver rather than relying on quick-connects, which can loosen due to pump vibration. Use color-coded wire if possible to make future maintenance easier. A well-organized, neatly labeled control box is the mark of a well-maintained irrigation system.

Understanding Standard Pilot Light Color Codes

Industry-standard color coding helps anyone familiar with electrical systems understand pump status immediately. While there is no federal mandate, following standard conventions prevents confusion during an emergency. Adopting these colors ensures that anyone helping on the farm knows exactly what is happening.

• Green: Indicates the pump is running normally.
• Red: Signals a stop, a fault, or a danger condition.
• Amber/Yellow: Used for warnings, standby modes, or low-pressure alarms.
• Blue: Typically indicates that the system is energized and in a “ready” state.

Avoid using white unless it is specifically reserved for a general “power on” indicator that isn’t tied to the pump’s actual operation. Consistency is key; keep the same color scheme across every pump house and barn controller. This simple standardizes the visual language of the farm.

Troubleshooting a Faulty Pump Indicator Light

If a pilot light fails to illuminate, do not assume the pump is also broken. Start by checking the bulb or LED module itself, as these are the most common points of failure due to the constant vibration of the motor. Use a multimeter to verify if power is actually reaching the light terminals.

If power is reaching the terminals but the light remains dark, the internal LED or bulb has likely burned out. If no power is detected, trace the wires back to the motor starter or the control relay to check for loose connections or tripped breakers. Often, a simple wire nut or screw terminal that has wiggled loose is the culprit.

Always practice lockout/tagout procedures before touching electrical components. Even small-scale farm equipment can deliver a lethal shock. If the fault persists after checking the light and the wiring, the issue likely resides within the control switch or the pump relay itself.

Investing in high-quality pilot lights ensures that the pulse of the farm’s water system is always visible. By selecting the right component for the specific environmental demands and control voltage, downtime can be drastically reduced. Keep a few spares on hand, maintain clean enclosures, and trust the signals to keep the pump running strong.
