6 Best Conduit Elbows For Navigating Garden Pathway Electrical Routing

Running electricity from a main barn to a distant garden shed or a series of perimeter fence controllers often requires navigating uneven terrain and tricky corners. Garden pathways are rarely straight lines, and the conduit housing the wiring must be both durable and versatile enough to accommodate those turns. Choosing the right elbow for the job prevents wire damage and ensures the longevity of the entire outdoor electrical system.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Encore PVC LB Body: Best for Simple PVC Runs

The Encore PVC LB body serves as a reliable workhorse for standard electrical runs where a simple back-to-top transition is required. Its design allows for easy access to the interior of the conduit, which is essential for pulling wires through long runs between garden zones. The PVC material integrates seamlessly with standard schedule 40 conduit, making it a cost-effective choice for hobby farmers on a budget.

This specific body is ideal for shallow trenching where the conduit needs to rise from the ground into a junction box or a light post. Because it lacks complex geometry, it maintains a clean, professional aesthetic along the edge of a garden path. When the installation involves standard residential-grade cabling, this is the go-to solution for simplicity and speed.

For any project where cost control is prioritized alongside functionality, the Encore LB body remains unmatched. It is not designed for heavy structural strain, so avoid using it in areas prone to vehicle traffic or heavy footfalls. Stick to this model for standard, low-intensity routing tasks.

Carlon Type LR Elbow: For Right-Angle Turns

Navigating a path that turns sharply to the right requires the Carlon Type LR elbow. The side-opening design allows for convenient wire pulling without forcing cables around a tight, blind corner. Its smooth interior walls are specifically engineered to minimize friction, which is vital when pulling thicker gauge wire for power-hungry equipment like water pumps.

Integration with existing PVC systems is straightforward, and the threaded hubs provide a secure, watertight connection when properly cemented. This elbow is particularly useful when building a system that must hug the corner of a raised bed or a greenhouse foundation. It provides the necessary leverage to guide wires smoothly through a 90-degree transition.

If the path design requires multiple turns, the LR configuration keeps the conduit run organized and accessible. It is a highly practical choice for those who want to avoid the frustration of bunched-up wires. Trust this component for any right-handed cornering needs.

Sigma Electric LL Body: Your Left-Turn Expert

The Sigma Electric LL body is the mirrored counterpart to the right-turn elbow, essential for those configurations that sweep toward the left. Many garden layouts are asymmetrical, requiring a variety of directional components to ensure the conduit remains flush against structures or pathways. This unit features a robust construction that stands up well to the moisture levels found in typical soil conditions.

The access cover on the Sigma LL allows for maintenance or troubleshooting without needing to dig up the entire run. If a circuit needs to be tested or expanded in the future, having this point of access is a significant advantage. It is especially useful near garden entry gates or along the sides of perimeter fencing where space is tight.

When mapping out a complex garden layout, keeping a few LL bodies in the supply shed is wise. They provide the flexibility needed to adapt to changing landscape designs. For any left-hand orientation, this component is the industry standard for efficiency and durability.

Southwire Rigid LB Body: Top Pick for Durability

When the electrical conduit must pass through a high-traffic area, such as a tractor path or a heavily used equipment loading zone, the Southwire Rigid LB body is the premium choice. Constructed from high-strength metal, this elbow resists impact and crushing far better than standard PVC alternatives. It provides a permanent, armored solution for sensitive wiring.

Beyond its physical toughness, the metallic construction offers superior protection against pests that might otherwise chew through plastic piping. It is an investment in long-term reliability for critical infrastructure, such as power lines leading to incubation sheds or irrigation controllers. The finish is designed to resist corrosion, even when partially exposed to the elements or damp earth.

For the hobby farmer who values “do it once, do it right,” the Southwire Rigid body is the clear winner. While the upfront cost is higher, the peace of mind regarding structural integrity is worth every penny. This is not for every run, but for the sections that matter most, it is the only logical choice.

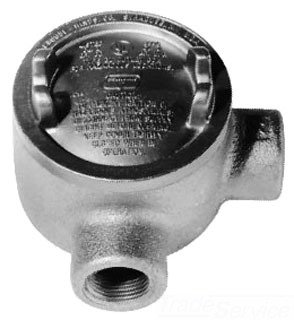

Crouse-Hinds GUAL16: Heavy-Duty Corner Access

The Crouse-Hinds GUAL16 is a heavy-duty explosion-proof style conduit body that offers unparalleled strength for corner navigation. It is specifically designed for environments where vibration or physical impact could compromise standard fittings. For a farm setup involving heavy machinery nearby, this provides an extra layer of mechanical defense.

Its reinforced construction makes it an excellent choice for mounting heavy outdoor lighting fixtures or security cameras directly to the conduit assembly. The accessibility it provides is top-tier, featuring a robust sealing cover that keeps out dirt and moisture. Using this fitting ensures that your electrical pathway is as rugged as the farm equipment it powers.

If the goal is to create an indestructible electrical pathway, the GUAL16 should be on the shortlist. It is overkill for simple runs, but for high-stakes cornering, its performance is unmatched. Invest in this piece if you require industrial-grade reliability in a small-scale setting.

Cantex 90-Degree Sweep: For Easier Wire Pulling

Sometimes a traditional LB or LL body isn’t necessary; instead, a smooth, sweeping turn is exactly what the wire needs to glide through the conduit. The Cantex 90-Degree Sweep provides a gentle, wide-radius bend that is much easier on wires than a sharp junction. It is the preferred method when pulling long, continuous runs of wire where multiple 90-degree breaks would cause too much drag.

Because these sweeps have no access covers, they are completely watertight and offer a lower profile than elbow bodies. They are perfect for long, straight-ish runs that need to negotiate a single corner before reaching their destination. Using a sweep also saves time, as there are no cover screws to tighten or gaskets to inspect.

For the most efficient wire pulls, always choose a sweep over an elbow body whenever the electrical code allows for it. It reduces the likelihood of wire insulation being scraped or damaged during the install. It is a simple, effective, and essential tool for any long-distance underground run.

Choosing an Elbow: LB, LL, LR, or a Sweep?

Selecting the right fitting depends entirely on the orientation of your path and the difficulty of the wire pull. LB (back), LL (left), and LR (right) indicate where the access port faces, which is the primary factor for maintenance access. If you have a choice, always select an access-type body at every 90-degree turn to facilitate future repairs or wire additions.

Sweeps are for pulling ease, while bodies are for access and transition. A well-planned garden electrical project usually employs a mix of both. Use bodies where the path meets a junction box or a post, and use sweeps where the conduit just needs to turn a corner underground.

Always check your local electrical codes before finalizing a design. Some jurisdictions have strict requirements regarding the number of bends allowed between access points. Balancing these rules with your physical landscape design is the hallmark of a successful installation.

PVC vs. Metal Conduit for Garden Pathways

PVC conduit is the standard for most hobby farming applications due to its affordability and ease of installation. It is non-corrosive, naturally waterproof, and perfectly adequate for most garden lighting and irrigation systems. When properly glued, PVC provides a permanent seal that keeps internal wiring dry for years.

Metal conduit, such as galvanized rigid steel, is necessary in areas where the piping is exposed above ground and subject to physical damage. It also provides a measure of shielding against electromagnetic interference for sensitive equipment. However, metal requires more specialized tools for cutting and threading, which can increase project time.

Think of PVC as the solution for underground runs and metal as the solution for exposed, high-traffic surface runs. Mixing the two is common, but ensure you use the correct transition adapters to maintain the integrity of the line. Understanding this tradeoff prevents costly installation errors.

How to Properly Bury Your Outdoor Conduit

Burying conduit effectively requires adherence to depth requirements, which vary by local code but generally range between 18 and 24 inches for residential circuits. Digging a trench deeper than necessary is tedious, but it protects your electrical infrastructure from garden forks, shovels, and potential rototilling. Always clear the trench of rocks before laying the conduit to prevent future crushing.

Once the conduit is laid, it is a best practice to install a warning ribbon in the dirt about six inches above the pipe. This simple, inexpensive step prevents accidental digging into the electrical line in the future. Backfilling should be done in layers, tamping down the soil to ensure the conduit does not shift over time.

Do not rush the burial process. Ensure the conduit is properly glued at every joint and that it enters and exits the ground at the correct depth. A properly buried conduit system is a “set it and forget it” project that powers farm operations for decades.

Tips for Pulling Wire Through Tight Bends

Pulling wire is the most challenging part of electrical installation, especially through tight 90-degree bends. Using high-quality wire lubricant—specifically made for electrical pulling—is the most effective way to reduce friction. Even a small amount of lubricant can turn a difficult pull into a smooth, manageable task.

Always use a nylon or steel fish tape to pull your wires through the conduit. If the run is long or complex, pull a heavy-duty string through first, then use that string to pull the actual wire. This prevents the wire from getting caught or bunched up inside the corners of your elbows.

If the wire refuses to move, do not force it, as you risk stripping the protective insulation. Go back to the elbow, open the cover, and ensure the wire is entering the turn at the correct angle. Patience at the start of the pull saves hours of rework and prevents expensive wire damage.

Selecting the right conduit hardware is the foundation of a reliable farm power system. By choosing the correct fittings and planning for access, you ensure that your garden remains both illuminated and functional for the long haul.
