6 Best Carbon Fiber Mounting Brackets For Diy Irrigation Booms

Building a reliable irrigation boom often feels like a balancing act between structural integrity and the weight limitations of your tractor or utility vehicle. Carbon fiber is the gold standard for reducing that load, but it demands specific mounting hardware that won’t crush or fracture the composite layup. Choosing the right bracket is the difference between a smooth watering cycle and a snapped boom arm mid-field.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

DragonPlate CF Clamp: Best for Versatile Setups

The DragonPlate CF clamp excels for farmers who frequently adjust their boom height or width to accommodate different row crops. Its design prioritizes flexibility without sacrificing the structural integrity of the carbon fiber tubing. Because the clamping pressure is distributed across a wider surface area, the risk of point-loading fractures is significantly minimized.

This clamp is the ideal solution for those running modular systems where sections are swapped or repositioned based on the season. It provides a secure lock that holds up well against the vibrations of a bumpy field, yet it releases quickly when modifications are required. If agility and adaptability are the primary requirements for the irrigation setup, this is the most reliable option on the market.

Clearwater Composites Truss Mount: Strongest Hold

When the irrigation setup involves long, cantilevered booms that experience significant torque, the Clearwater Composites Truss Mount provides the necessary rigidity. These mounts are engineered to integrate directly with truss structures, distributing stress across multiple contact points. They essentially turn a flexible arm into a stiff, professional-grade assembly.

This mount is best suited for heavy-duty applications where the boom might carry multiple nozzles, solenoid valves, or sensors. While it requires a bit more planning to install than a simple clamp, the tradeoff is a nearly indestructible connection. For large-scale hobby farm plots where wind and uneven terrain put serious strain on equipment, this mount is the ultimate choice for peace of mind.

Rock West Adjustable C-Clamp: Easiest to Install

For the hobby farmer who values efficiency and doesn’t want to spend hours assembling complex hardware, the Rock West Adjustable C-Clamp is the logical choice. These clamps feature a straightforward design that allows for rapid attachment to both the boom arm and the mounting frame. The intuitive tensioning mechanism ensures that the bracket stays locked in place even when navigating uneven headlands.

These clamps are specifically recommended for those who build their booms seasonally and need to disassemble them for storage in a barn or shed. The ease of adjustment means the boom can be leveled in minutes rather than hours. If the priority is a quick, functional setup that requires no specialized tools, this is the correct investment.

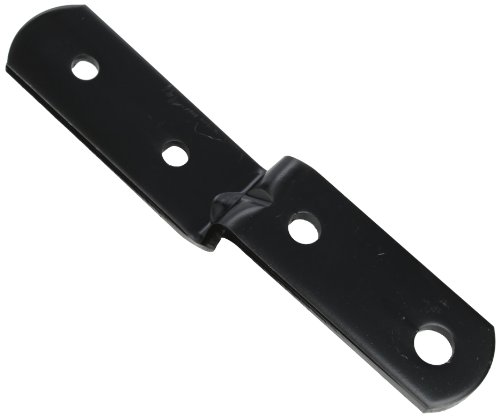

Agri-Fab CarbonLite Bracket: Best for Light Booms

The Agri-Fab CarbonLite bracket is tailored for smaller, lightweight boom assemblies designed for hand-trolleys or small garden tractors. Its lightweight construction prevents the bracket itself from becoming a weight liability on smaller equipment. It provides just enough grip to keep a spray arm stable without the excess bulk found in industrial-grade components.

This bracket is best for micro-farming operations where the weight of the hardware is as critical as the weight of the boom itself. It is not meant for heavy-duty, long-span applications, but it shines in compact, low-pressure irrigation systems. For smaller, more agile setups, this bracket represents the perfect balance between cost and functional performance.

Pro-Carbon Saddle Clamp Kit: Most Secure Option

The Pro-Carbon Saddle Clamp Kit utilizes a wrap-around design that creates a near-perfect friction lock on carbon fiber tubing. By encasing more of the tube’s circumference than a standard bolt-on bracket, it virtually eliminates slippage during operation. This is critical when dealing with the high-frequency vibration common in gas-powered pump irrigation systems.

Farmers who prioritize long-term equipment health will appreciate the secure nature of this kit. It holds firm even when the boom undergoes rhythmic swaying, protecting the composite surface from the abrasive wear caused by loose attachments. For high-traffic areas or long irrigation runs where maintenance must be kept to a minimum, this is the most secure option available.

DIY Composites U-Bolt Mount: Budget-Friendly Pick

The DIY Composites U-Bolt Mount is the go-to for those who are building their irrigation systems on a tight budget without wanting to sacrifice basic functionality. While it is a simpler piece of hardware, it provides a functional, solid attachment point that gets the job done. It is straightforward to source and even easier to replace if a component ever fails.

This mount is perfectly fine for low-stress setups or hobbyists just beginning to experiment with carbon fiber booms. While it lacks the advanced stress-distribution features of more expensive clamps, proper installation—using rubber gaskets to protect the fiber—makes it a highly viable solution. If the goal is a functional boom on a modest budget, this mount is the most practical starting point.

Choosing Your Bracket: Tube Diameter is Everything

• Precise Measurement: Always measure the outer diameter (OD) of the carbon fiber tube with digital calipers before buying a bracket.
• Tolerance: Ensure the clamp is rated for the specific OD of the tube; a bracket that is even a millimeter too loose will slide under load.
• Expansion: Remember that carbon fiber can expand slightly under extreme heat; ensure the bracket allows for minimal thermal variance if you live in high-temperature climates.
• Material Compatibility: Only use clamps specifically designed for composites to avoid crushing the resin matrix.

Bracket Placement for Optimal Boom Stability

Strategic placement of brackets is just as important as the strength of the hardware itself. For long booms, you want to mount brackets near the pivot points to minimize the leverage exerted on the frame. Avoid placing all clamps in a single cluster, as this can create a “stress concentration” area that makes the boom prone to snapping at the edge of the mounting hardware.

Instead, stagger the supports to distribute the load across the length of the tubing. If the boom is prone to sagging, place the primary structural bracket at the point of maximum deflection. Remember that every bracket adds a small amount of weight, so balance the need for stability against the desire to keep the boom as light as possible.

Preventing Corrosion at Metal Contact Points

Even though carbon fiber is inert, it can cause galvanic corrosion when in direct contact with certain metals, especially in humid or wet environments. To mitigate this, always place a thin rubber or silicone gasket between the metal clamp and the carbon fiber tube. This serves two purposes: it prevents corrosion and adds a layer of friction that keeps the bracket from sliding.

Avoid using bare steel clamps, as the constant moisture from irrigation systems will lead to rust that can eventually degrade the finish of the carbon fiber. Stainless steel or aluminum hardware is significantly better for long-term use in agricultural settings. Taking these small preventative measures ensures that the brackets stay secure and the boom remains in top condition for seasons to come.

DIY Boom Safety: Stress-Testing Your Build

Before taking a new boom into the field, perform a dry-run stress test in the workshop. Attach the full assembly, fill the hoses with water to simulate operating weight, and observe how the brackets handle the load. Use a level to ensure the boom isn’t drooping at the tips, which can indicate that a bracket is either loose or under-engineered for the span.

Pay close attention to how the tubing behaves when the boom is shaken gently. If there is audible creaking or visible movement at the clamp sites, stop and tighten or add a support bracket. A failure in the field can damage crops or the vehicle, so ensuring the build is robust during the planning phase is a non-negotiable step in successful farm management.

A well-constructed irrigation boom is a force multiplier for the hobby farm, allowing for efficient water delivery with minimal physical effort. By investing in the right mounting hardware and taking the time to install it with care, the setup will serve reliably throughout the growing season. Choose based on the specific load and climate, and the equipment will ultimately pay for itself in saved time and better crop health.
