6 Best Din Rail Spacers For Heat Dissipation In Control Boxes

When a control box packed with timers, relays, and pump controllers begins to radiate heat, the delicate electronics inside start a slow countdown toward failure. Keeping these components cool isn’t just about prolonging hardware life; it’s about preventing a mid-season irrigation system shutdown during a critical dry spell. Investing in high-quality DIN rail spacers creates the necessary thermal buffer to keep small-scale agricultural operations running without a hitch.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Phoenix Contact ATP-UK: Top All-Round Spacer

The Phoenix Contact ATP-UK stands out as the industry benchmark for general-purpose utility. Its robust construction provides a consistent gap that allows ambient air to circulate freely around individual terminal blocks. This spacer is ideal for the farmer who needs a “set it and forget it” solution that works across a wide variety of standard rail-mounted devices.

Because this model features a universal design, it integrates seamlessly into almost any existing setup without requiring specialized tools or re-wiring. It acts as a reliable thermal barrier, preventing heat transfer between high-load relays and sensitive logic controllers. If the goal is a straightforward, dependable upgrade to a standard control cabinet, this is the first choice to consider.

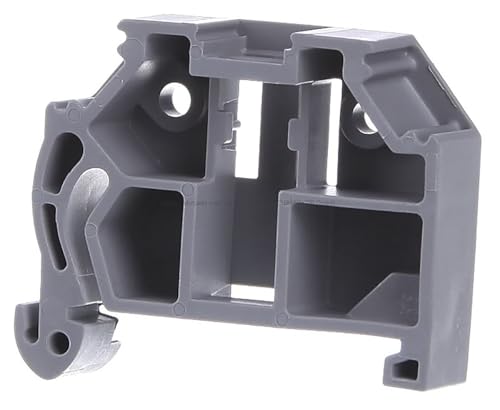

Wago 249-117: Best for Compact Enclosures

Space is often at a premium in small-scale farm sheds, where every square inch of the control panel is accounted for. The Wago 249-117 excels here by offering a slim, precise profile that minimizes the footprint while still providing essential air gaps. It is specifically engineered to maximize density without sacrificing the airflow needed to keep components within their operating temperature range.

This spacer is the perfect fit for setups utilizing Wago’s extensive line of terminal blocks, ensuring a clean, flush installation. While other spacers might be bulky, the 249-117 keeps the interior organized and professional. It is the go-to option for anyone working within a cramped, high-density panel who needs to avoid the dreaded “thermal stacking” effect.

Weidmüller WAD 4: Engineered for Maximum Airflow

When dealing with high-heat components like variable frequency drives or large contactors, standard spacing is often insufficient. The Weidmüller WAD 4 is designed with a specific geometry that promotes superior convective airflow compared to standard flat spacers. It literally forces air to move through the gaps, preventing hot spots from forming behind dense component banks.

This product is built for the demanding, high-load environment of a year-round farm operation. It is worth the slight price premium if the current panel runs consistently hot throughout the summer heat. For anyone managing intensive irrigation or automated climate control, the WAD 4 provides the structural integrity and thermal management required for long-term reliability.

Eaton Z-SW/S: A Simple, Cost-Effective Pick

Not every project requires top-tier engineering for extreme conditions; sometimes, the need is simply to create a little extra breathing room. The Eaton Z-SW/S is a utilitarian spacer that focuses on value and ease of installation. It is a no-nonsense component that fulfills its purpose without driving up the costs of an infrastructure project.

This spacer is ideal for secondary control boxes, such as those governing lighting or basic shed ventilation, where loads are relatively light. While it lacks the complex thermal geometry of more expensive models, it provides a solid mechanical gap that stops components from touching. If the budget is tight and the heat generation is moderate, this is the most practical path forward.

Allen-Bradley 1492-SPM15: The Premium Choice

The Allen-Bradley 1492-SPM15 represents the gold standard for those who refuse to compromise on quality. Precision-molded and built to withstand harsh industrial-grade vibrations, this spacer ensures that components remain perfectly aligned year after year. It is the definitive choice for critical systems where a failure could lead to significant crop or livestock losses.

This is not a budget spacer, but it is an investment in long-term peace of mind. It performs flawlessly in high-vibration environments, such as panels mounted near heavy machinery or automated sorting equipment. Those managing high-value, automated systems will find that the 1492-SPM15 provides the exact engineering tolerances necessary to protect premium electrical components.

ABB BA4 Spacer: A Reliable and Versatile Option

The ABB BA4 is a classic, flexible spacer that bridges the gap between basic utility and high-end performance. It is compatible with a broad range of DIN rail components, making it a favorite for modular builds where parts might be swapped or upgraded over time. Its design is straightforward, effective, and widely available.

Reliability is the hallmark of the BA4, which makes it a safe bet for farmers who appreciate standardization. It provides enough space to stave off thermal fatigue without requiring a complex calculation of the cabinet’s internal air volume. If a reliable, mid-range solution is needed that plays well with various brands, the ABB BA4 is consistently a solid choice.

Why Overheating Control Boxes Is a Major Risk

Heat is the silent enemy of all electronic components, shortening the lifespan of capacitors and triggering premature shutdowns. In a farming environment, these boxes are often exposed to ambient heat, dust, and high humidity, which compounds the internal thermal stress. An overheated controller can result in erratic timing or, worse, a complete system failure during the most intense growing weeks.

Constant high temperatures also degrade the insulation on wiring inside the box, increasing the risk of short circuits. When heat is trapped by components packed too tightly together, the entire system efficiency drops. Proper spacing is the cheapest form of insurance against the high cost of emergency repairs and system downtime.

How to Choose the Right Spacer for Your Setup

The first step in choosing a spacer is evaluating the load of the components inside the box. High-current relays generate significantly more heat than low-voltage sensors and require wider, more efficient spacing. Always check the thermal ratings provided by the component manufacturer, as they often specify the minimum clearance required for warranty compliance.

Consider the physical space available on the DIN rail itself before settling on a specific model. If the rail is already near capacity, a slim spacer like the Wago 249-117 is necessary. If there is extra room, choosing a larger, more airflow-focused design like the Weidmüller WAD 4 will yield better thermal results.

Proper Spacer Placement for Maximum Cooling

Spacers should be placed strategically around components that act as heat sinks or high-wattage sources. It is not enough to simply place them randomly; they should be used to isolate the most thermally active devices from their sensitive neighbors. Placing a spacer every few units helps break up the thermal mass and allows air to circulate through the middle of the rail.

Always orient the control box so that natural airflow moves vertically, allowing heat to rise up and out of the enclosure. Ensure that spacers do not block the air intake vents of the controllers themselves. By creating a clear vertical path for air to travel from the bottom of the rail to the top, you maximize the efficiency of passive cooling.

Other Ways to Keep Your Control Box Cool

Spacers are only one part of a comprehensive thermal management strategy for farm electronics. Adding louvered vents to the bottom and top of the control box encourages the “chimney effect,” where hot air naturally rises out of the enclosure. If the environment is exceptionally dusty, consider installing filtered intake fans to keep the air moving without drawing in grit.

Another effective tactic is to de-rate components, using relays or contactors that are rated for higher currents than what the circuit actually requires. Components running at 50% capacity generate exponentially less heat than those running near their limit. Finally, ensure the control box is mounted in a shaded location away from direct sunlight, which can turn even a well-spaced box into a convection oven.

By implementing these straightforward spacing solutions and keeping the internal climate in mind, you can significantly extend the life of your farm’s control systems. Careful planning today avoids the high cost and frustration of a mid-season hardware failure. Choose the spacer that fits the thermal demands of the job, and keep the farm running smoothly all year long.
