6 Best Brake Springs For Drum Brake Repair Jobs For Trucks

There is nothing quite as discouraging as a heavy load of feed sitting in the back of a truck when the brake pedal suddenly feels spongy or starts dragging on the way to the field. Drum brakes are workhorses that keep farm trucks functional, but they rely entirely on the tension of small, hidden springs to stay safe and responsive. Maintaining these springs ensures the truck stops reliably on steep inclines and slick, muddy terrain, keeping both the cargo and the operator secure.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Dorman HW7293: Best Overall Spring Kit

When a project requires a complete overhaul of the rear drum hardware, this kit serves as the go-to solution. It includes every clip, spring, and pin necessary to restore a drum system to factory-fresh tension without the need to hunt for individual components. The build quality is consistent, meaning the springs resist the fatigue that often causes dragging brakes on older farm rigs.

Because this kit covers a broad range of domestic trucks, it is the most practical choice for those who need to get the job done without overthinking the parts list. Reliability remains the hallmark of this selection, as it eliminates the risk of mixing old, stretched springs with new ones. If the goal is a straightforward, trouble-free repair that lasts, this is the definitive recommendation.

ACDelco 18K1791X: Top Pro-Grade Option

For the farmer who refuses to cut corners on safety-critical systems, ACDelco offers the level of precision that matches original equipment specifications. These springs are heat-treated to maintain their shape over thousands of miles of heavy towing and off-road vibration. The metal finish also shows higher resistance to the salt and grime common in agricultural environments.

While the cost is higher, the investment pays off in the longevity of the brake shoe life and the consistency of pedal feel. Pro-grade springs ensure that the shoes retract fully, preventing premature wear and overheating during long trips into town. Choose this option if the truck is the primary vehicle for hauling livestock or heavy equipment and cannot afford downtime.

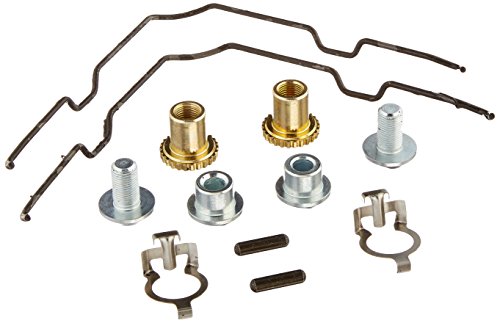

Carlson H7315: Great Value for Rear Drums

Budgeting is a central part of any farming operation, and the Carlson H7315 provides a cost-effective way to refresh the braking system without sacrificing quality. These kits offer a perfect balance of durability and price, making them ideal for older farm trucks that see moderate, seasonal use. They provide the necessary snap-back action required for effective drum braking without the premium markup.

This set is particularly popular for routine maintenance cycles where the goal is to replace the hardware whenever the brake shoes are swapped out. The springs are manufactured to meet industry standards, ensuring the drums stay centered and responsive. When the repair budget is tight but performance cannot be compromised, this is the smartest selection to keep the wheels turning.

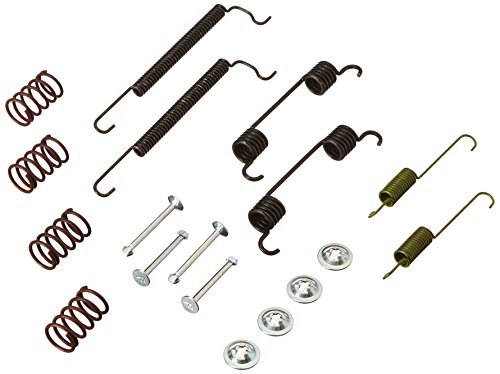

Raybestos H17409: Heavy-Duty Spring Set

Trucks tasked with hauling hay, pulling trailers, or navigating steep terrain put extreme stress on braking components. Raybestos designed this hardware set specifically to handle the thermal demands of heavy-duty work. The coil thickness and metal alloys used in these springs are engineered to resist heat-induced softening, a common issue when brakes work hard under heavy loads.

If the truck spends more time in “work mode” than cruising on paved roads, this is the kit that provides peace of mind. The springs hold their tension under pressure, ensuring that the brake drums remain properly indexed regardless of the load. For those who demand maximum resilience in tough field conditions, Raybestos is the clear winner.

Wagner Z732: Reliable Universal Spring Kit

Sometimes the simplest solution is the best one, especially when dealing with trucks that have been modified or maintained with various aftermarket parts. The Wagner Z732 is known for its wide compatibility and predictable performance, functioning reliably across a variety of older pickup models. It is a no-nonsense kit that includes exactly what is needed for a standard brake job.

The strength of these springs lies in their consistency and ease of installation. Even for those who are not professional mechanics, the fitment is generally intuitive, reducing the frustration often associated with fighting stubborn hardware. Use this kit when the focus is on functional, everyday reliability rather than extreme towing performance.

Bendix H7348: Premium Choice for F-150s

Specific trucks, particularly the F-series pickups common on many farms, often require hardware that adheres to strict geometry to prevent uneven wear. The Bendix H7348 is engineered with these specific tolerances in mind, ensuring the brake shoes ride exactly where the manufacturer intended. This prevents the “chattering” or uneven engagement often experienced with lower-quality, universal-fit springs.

The material quality in Bendix kits is top-tier, featuring specialized coatings that prevent premature corrosion from moisture. For those who depend on their Ford truck for daily chores, this kit ensures the braking system remains smooth and quiet. When only the exact factory specification will suffice for a high-mileage work truck, select this option.

How to Pick the Right Springs for Your Truck

Selecting the correct spring kit begins with checking the vehicle identification number (VIN) and the specific axle weight rating. Many trucks feature different drum sizes or internal hardware layouts based on their tow packages, so assuming a one-size-fits-all approach leads to wasted time. Always verify the drum diameter—typically 10, 11, or 12 inches—before ordering components.

Consider the primary use case of the vehicle when choosing between standard and heavy-duty kits. A light-duty truck used for occasional garden supply runs has different needs than a workhorse used for daily hauling. Higher tension springs are beneficial for heavy towing, but can make the pedal feel overly stiff if the vehicle is primarily driven empty.

• Match the hardware to the drum size, not just the truck model.
• Prioritize heat-treated steel for trucks that perform heavy towing.
• Check for compatibility with existing brake adjusters and wheel cylinders.
• Avoid mixing new hardware kits with old, stretched springs.

Essential Tools for Drum Brake Spring Jobs

Attempting to change brake springs with basic pliers is a recipe for frustration and potential injury. A dedicated brake spring tool, designed to hook and leverage the springs into place, is mandatory for efficient work. These tools allow the user to apply the necessary force to hook the spring onto the anchor pin without the risk of the spring slipping and causing a minor accident.

Furthermore, a high-quality brake spoon is essential for adjusting the star wheel once the drum is back on. Accessing the adjustment slot on the backside of the backing plate can be tight, and a proper spoon provides the reach and leverage needed for a precise fit. Investing in these two specialized tools saves hours of time and ensures the job is done correctly the first time.

Safety First: Tips for Working on Brakes

Working on brake systems requires absolute focus, as the hardware is under significant tension that can cause the springs to “fly” if they slip during installation. Always wear eye protection to guard against debris or a stray spring. Ensure the truck is securely positioned on rated jack stands, never relying solely on a hydraulic floor jack while working underneath or near the wheels.

Brake dust can contain harmful particulates, so avoid using compressed air to clean the drum housing. Use a specialized brake cleaner spray that catches dust and prevents it from becoming airborne. Proper ventilation in the shop or shed is vital to maintain a safe working environment, especially when dealing with the grime and chemical buildup found on older vehicle axles.

When to Replace Springs, Not Just the Shoes

A common mistake in maintenance is assuming that brake shoes are the only components that wear out during a brake job. Springs lose their temper—their ability to return to a specific shape—after years of heating and cooling cycles. If the springs have lost their tension, the brake shoes will not retract fully, leading to drag, increased fuel consumption, and localized overheating of the drums.

Inspect the springs for signs of rust, pitting, or obvious stretching compared to a new set. If a spring shows any deformation or looks “tired” after years of service, it is far more economical to replace the entire hardware kit than to risk the damage that a dragging brake shoe causes to the drum. Treating the spring kit as a wear item, just like the shoes or pads, is the hallmark of a proactive maintenance schedule.

Keeping the brake system in top shape is one of the most effective ways to ensure the farm truck remains a dependable asset rather than a project that stalls progress. By choosing the right spring kits and performing regular maintenance, the braking system will continue to provide the reliable stopping power needed for any season. Proper attention today prevents major mechanical headaches in the middle of a busy harvest or planting window.
