Nothing stops a seasonal planting schedule faster than a blown seal on a tractor’s hydraulic pump or an irrigation pressure washer. When pressure spikes, an O-ring alone often succumbs to extrusion, leaving a puddle on the shed floor instead of working in the field. Investing in the right backup ring today prevents the inevitable mechanical failure that strikes during the busiest harvest hours.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Parker 8400 Series PTFE Ring: Top Overall Pick

The Parker 8400 series represents the gold standard for high-pressure sealing. These virgin PTFE (polytetrafluoroethylene) rings offer a near-perfect balance of chemical resistance and low friction, which is essential for protecting O-rings in hydraulic systems that see daily, heavy-duty cycles.

For the hobby farmer maintaining older, high-pressure equipment, this is the go-to solution. The material resists cold flow, meaning it won’t deform or lose its shape under constant pressure, which is critical for pumps that run for hours at a time during irrigation season.

Opt for the 8400 series when reliability is the priority over budget. It serves as an investment in uptime, ensuring that the primary seal remains intact even when the pump hits its maximum rated pressure.

Trelleborg Zurcon Scarf-Cut Ring: Easiest Install

Maintenance tasks on a farm are rarely done in clean, laboratory conditions. The Trelleborg Zurcon scarf-cut design allows for installation without dismantling complex pump components, saving hours of labor that would otherwise be spent on a complete teardown.

The angled, scarf-cut design acts like a hinge, allowing the ring to be stretched and snapped into place around a shaft or piston. This makes it ideal for quick field repairs where precision tools are not readily available.

Choose this model if minimizing downtime is the absolute priority. While it may not provide the same extreme-pressure sealing as a solid ring, the ease of maintenance often outweighs marginal performance gains in non-industrial settings.

SKF 5126 Series Contoured Ring: Max Durability

When dealing with high-cycle, high-vibration applications like a manure spreader or a heavy-duty hydraulic splitter, the SKF 5126 series stands out. These rings feature a contoured profile that provides extra support to the O-ring’s heel, preventing the “nibbling” that happens when high pressure forces rubber into the gap.

The durability of this material profile is unmatched in demanding environments. It handles extreme shock loads better than flat-cut rings, making it the right choice for machinery that sees frequent stop-and-start action.

If a specific pump consistently blows through standard backup rings, upgrading to the SKF 5126 is the correct move. It is engineered for longevity in systems that vibrate or pulse heavily under load.

Chesterton Polymer Spiral-Wound: High-Temp Star

Farming equipment often runs hot, especially when pumps are worked hard in the summer heat or under heavy hydraulic loads. Chesterton’s spiral-wound polymer rings are designed specifically to maintain their structural integrity at temperatures that would cause standard PTFE to soften and fail.

The spiral design allows for a degree of expansion and contraction that solid rings lack. This makes it the superior choice for equipment prone to thermal cycling—where the pump heats up during heavy use and cools down once the task is finished.

This ring is specifically for the farmer dealing with overheating hydraulic systems. Avoid it for basic, low-temp plumbing, but keep it in the shop for critical, high-temperature pump seals that face constant thermal stress.

Hercules Nitrile BRN Series: Best Value Option

Not every seal repair requires high-end, engineered polymers. For general-purpose hydraulic pumps and fluid lines on smaller implements, the Hercules Nitrile BRN series offers a robust, affordable alternative to PTFE.

Nitrile is inherently more flexible and easier to seat than harder plastic rings. This flexibility provides an excellent seal in applications where the machined surfaces of the pump housing might have slight imperfections or minor pitting from age.

Use this for low-to-medium pressure systems and budget-conscious repairs. It is not the choice for extreme pressures, but for a general-purpose backup ring in a secondary piece of equipment, it provides the most value for the money.

All Seals Solid Split PTFE Ring: Versatile Choice

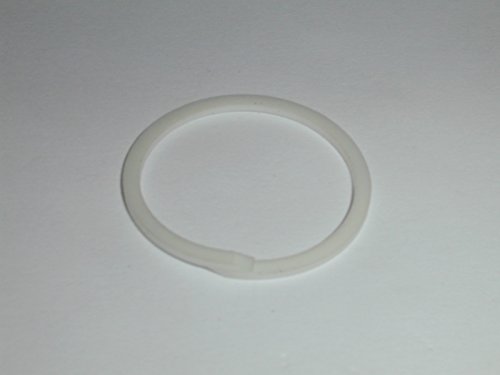

Sometimes the best approach is to find a middle ground that fits a wide range of tasks. All Seals offers a solid split PTFE ring that combines the chemical resistance of hard plastics with the convenience of a split design for easier installation.

This versatile option handles a wide variety of hydraulic fluids and pressures. It is the perfect “workhorse” ring to keep in the spare parts bin because it fits so many different applications across various pieces of equipment.

Buy these in bulk if the goal is to standardize the shop inventory. They aren’t specialized for extreme heat or pressure, but they are reliable enough for 90% of the maintenance tasks encountered on a small-scale farm.

Choosing Your Backup Ring Material and Profile

• PTFE: Best for chemical resistance and low friction, but rigid and harder to install.
• Nitrile (Rubber): Best for sealing against minor housing imperfections and ease of installation in lower-pressure systems.
• Contoured/Spiral: Essential for high-pressure or high-vibration environments where simple flat rings might fail or extrude.

Selecting the right material requires an honest assessment of the operating conditions. A pump running at 3,000 PSI requires a vastly different material than one running at 500 PSI. Always prioritize the rated pressure of the system before considering the ease of installation.

Proper Installation of High-Pressure Backup Rings

Installation errors are the leading cause of premature seal failure. When installing a backup ring, ensure it is positioned on the low-pressure side of the O-ring; if the ring is on the wrong side, it will provide no protection against extrusion.

Use a dull, non-metallic pick to seat the ring into the groove to prevent scratching the pump housing. Once the ring is in, ensure the O-ring is lubricated with the appropriate hydraulic fluid before sliding the components together. This prevents the O-ring from pinching or shearing against the hard edge of the backup ring.

When to Use a Backup Ring with Your O-Ring Seal

A backup ring is necessary whenever the clearance gap between the moving parts is large enough for the O-ring to be forced into it under pressure. As a general rule, if the system pressure exceeds 1,500 PSI, a backup ring should be standard practice.

Also, consider the age of the machinery. If the grooves are worn or the housing has developed slight clearance due to years of friction, adding a backup ring can extend the life of the O-ring significantly. It is a proactive measure that keeps older, otherwise functional equipment from leaking.

Sizing and Measuring for a Perfect Ring Fit

Accurate measurement is non-negotiable in hydraulic repair. Use digital calipers to measure the gland width, the groove diameter, and the rod or bore diameter. A ring that is too loose will fail to provide support, while a ring that is too tight can cause binding or mechanical drag.

When in doubt, consult the manufacturer’s technical manual for the specific pump model. Most repair parts are categorized by the O-ring size they are intended to support, so matching the backup ring to the O-ring dash size is usually the most straightforward path. Always account for the thickness of the backup ring, as it will reduce the space available for the O-ring within the groove.

Maintaining a well-stocked supply of the right backup rings turns a potentially disastrous mid-season breakdown into a manageable thirty-minute repair. By understanding the specific needs of each pump and selecting the proper ring profile, the equipment remains reliable through the toughest working conditions. Keep the shop organized and the seals ready, because preventative maintenance is the true secret to a successful harvest.
