6 Best Digital Multimeter Leads For Testing Garden Solar Arrays

Reliable power is the backbone of any productive hobby farm, especially when an off-grid solar array keeps the irrigation pumps running and the coop lights on. Even the most robust panels can falter under the strain of debris, shifting weather, or loose connections, making regular electrical testing a necessary chore. Armed with the right multimeter leads, diagnosing these issues becomes a task of minutes rather than an afternoon of guesswork.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Fluke TL175 TwistGuard: The Professional Pick

When precision is non-negotiable and the environment is dusty or damp, the Fluke TL175 is the gold standard. These leads feature an adjustable shroud that allows the user to extend or retract the exposed metal tip, providing the safety of a shorter tip in tight panel boxes or full exposure for testing battery terminals.

The build quality withstands the constant friction of being tossed into a toolbox alongside wrenches and wire cutters. The wear-indicator insulation, which shows a contrasting inner color if the cord is compromised, provides peace of mind that a damaged lead won’t cause a short during a high-voltage test.

This is the ideal investment for a serious hobby farmer who maintains a large-scale system and demands tools that last a decade. If the budget allows for a “buy once, cry once” approach, this is the only set of leads needed.

Pomona 5907A Alligator Clips: Hands-Free Use

Testing solar arrays often requires keeping the leads attached while manipulating wires or adjusting charge controller settings. Pomona 5907A alligator clips attach securely to standard probe tips, turning a handheld process into a hands-free operation.

In the field, being able to clip onto a terminal and step back to observe a digital display is a significant safety and convenience advantage. These clips offer a strong bite that won’t slip off when bumped, ensuring accurate readings without the risk of an accidental arc.

These are essential for anyone who frequently troubleshoot circuits alone. Unless the task involves rapid spot-checking, these clips should be a permanent fixture in the testing kit.

Extech TL809 Kit: The Most Versatile Option

Small-scale farms often require a wide range of testing capabilities, from low-voltage gate sensors to higher-voltage solar array strings. The Extech TL809 kit serves as an all-in-one solution, providing probes, clips, and specialized tips that adapt to almost any electrical interface found on a property.

The kit’s modular nature means the user isn’t tethered to a single probe style. Swapping from a sharp needle point to a spring-loaded clip takes seconds, making it perfect for rapid diagnostics on varied equipment ranging from electric fences to solar arrays.

For those who want maximum utility without buying individual components, this kit is the best value. It is the perfect choice for the hobbyist who keeps a mixed collection of gear and wants one reliable set of leads for every project.

Klein Tools 69416: Durable and Field-Ready

Klein Tools understands the reality of farm life, where equipment is subjected to heat, cold, and rough handling. The 69416 leads are designed with heavy-duty construction that resists the typical wear and tear of outdoor maintenance.

These leads feature flexible, double-insulated wire that stays pliable even when the ambient temperature drops in late autumn. The tips are sharp and well-constructed, making them perfect for piercing through corrosion on older solar connector housings that may have been exposed to the elements for seasons.

This is the right choice for the farmer who values ruggedness above all else. If the gear lives in the back of a truck or a dusty barn workshop, the Klein 69416 is built to survive the environment.

AstroAI Piercing Probes: For Tricky Wires

Sometimes, the insulation on an older solar cable obscures the connection point, or a wire is too delicate to disconnect safely. AstroAI piercing probes are designed to puncture insulation cleanly to make contact with the copper core without destroying the wire’s integrity.

These are particularly useful for troubleshooting “invisible” breaks in a long cable run through a field or garden bed. By piercing the outer jacket in a small, easily sealed spot, the user can verify continuity along a line without stripping back inches of protective material.

Use these with caution, as leaving multiple holes in wire insulation can invite moisture ingress over time. These are a specialty tool for specific, tricky situations, not for everyday testing.

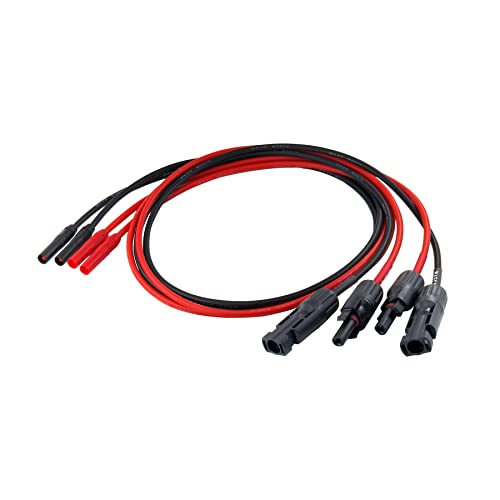

BougeRV MC4 Leads: Direct Solar Connection

Testing a solar panel via its MC4 connectors often proves frustrating when using standard round probes. BougeRV MC4 leads provide a direct, secure connection that snaps directly into the solar panel cabling, eliminating the need to “back-probe” or risk damaging the connectors.

These leads ensure a perfectly stable connection, which is vital for measuring open-circuit voltage or short-circuit current accurately. By mimicking the actual panel connection, they remove the variable of a loose probe tip sliding around in the connector housing.

Every solar-dependent farm should have a pair of these in their kit. If the array uses standard MC4 connectors, purchasing these specific leads is the single most effective way to eliminate frustration and get accurate readings on the first attempt.

How to Choose Leads for Solar Panel Testing

When selecting leads, focus on the electrical rating—specifically, ensure they are rated for the voltage of the array. Most hobby setups use 12V, 24V, or 48V systems, but open-circuit voltages can spike, so 1000V-rated leads are the safest professional standard.

Consider the environment. Silicone insulation is superior to PVC because it remains flexible in cold weather and resists melting if it accidentally touches a hot exhaust or soldering iron.

Match the connector types to the hardware. While adapters exist, having a dedicated set of MC4 leads significantly reduces the time spent fumbling with delicate probe tips against small metal contacts.

Safety First: Testing Solar Arrays Correctly

Solar panels are “live” whenever the sun is shining, regardless of whether a load is connected. Always treat every connection as potentially high-voltage, and wear insulated gloves if working on anything exceeding 50 volts.

Never disconnect an MC4 connector while the array is under load. Breaking a high-current circuit can create an electrical arc that destroys the connector or causes severe burns. Always cover the panels with a tarp or work after sunset to ensure the system is truly “dark” before disconnecting lines.

Use the “one hand in the pocket” rule when dealing with higher voltages to prevent current from passing through the chest if a shock occurs. Safety isn’t about fear; it’s about acknowledging the energy present in a functional system and respecting it.

Testing Voltage & Amps on Your Solar Setup

Voltage testing is straightforward: place the probes on the positive and negative terminals to check if the panel is outputting the expected potential. This helps identify if a single panel in a series string has failed, which would drag down the efficiency of the entire array.

Amperage testing requires a bit more care, as the multimeter must be placed in series with the load. Most standard multimeters have a 10-amp limit; check the array’s maximum power current (Imp) before connecting, as exceeding this limit will blow the internal fuse of the meter.

Use an inductive clamp meter whenever possible for current measurements. Clamping over the wire is safer and eliminates the need to break the circuit, preserving the waterproof integrity of the connections.

Maintaining Your Leads for Accurate Readings

Inspect leads regularly for cracks, exposed wire, or stiffening insulation. If the cord feels brittle or the connection at the jack is loose, replace it immediately to prevent intermittent readings that could lead to poor maintenance decisions.

Keep tips clean by using a small piece of fine-grit sandpaper or an electrical contact cleaner to remove oxidation. Clean leads ensure low resistance, which is critical for accurate measurements in low-current environments common in many smaller hobby solar setups.

Store leads by hanging them on hooks rather than coiling them tightly or stuffing them into a bag. Avoiding sharp bends in the wire prevents internal wire fatigue, ensuring the set remains reliable for the long haul.

Proper maintenance of testing equipment is as critical as maintaining the panels themselves. By keeping reliable leads on hand and following consistent testing protocols, the longevity and efficiency of the farm’s solar infrastructure are significantly improved. Reliable power is never a happy accident; it is the result of methodical oversight and the right tools.
