6 Best Plastic Unions For Easy Plumbing Maintenance

Few things turn a productive Saturday morning into a frustrating repair job faster than a leaking pipe hidden deep within a barn wall. Plumbing is the lifeblood of any farm, moving water to troughs, irrigation lines, and wash stations with constant, quiet efficiency. Investing in high-quality unions now saves hours of frantic digging and pipe-cutting when a seal inevitably fails during the peak growing season.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Spears Sch 80 PVC Union: For High-Pressure Lines

When moving water from a deep well pump or managing a pressurized irrigation manifold, standard thin-walled fittings often crack under the strain. The Spears Schedule 80 PVC union features thicker walls and superior resin quality designed to handle significantly higher PSI ratings than standard residential plumbing. It is the heavy-duty choice for lines that experience constant pressure or frequent water hammer.

The internal construction is engineered for durability, meaning threads won’t strip after a few removals for routine maintenance. If a specific section of the irrigation system is prone to high-pressure surges, do not gamble with lighter components. This union is the right pick for those who value longevity over low upfront costs.

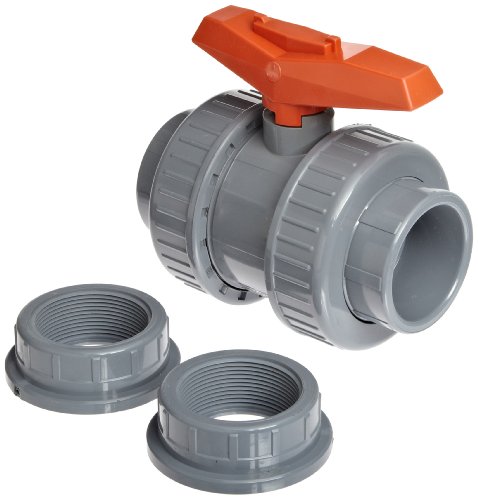

Hayward True Union Ball Valve: Best All-in-One

Efficiency is the currency of the hobby farm, and the Hayward True Union Ball Valve doubles as both a flow control point and a disconnect union. This design eliminates the need for installing a separate valve and union side-by-side, which saves precious space in crowded pump houses or manifold boxes. Because it is a “true union” design, the entire valve body can be removed from the line for cleaning or replacement without disturbing the surrounding piping.

This piece of equipment is ideal for feed lines leading to livestock troughs where mineral buildup often requires periodic valve cleaning. Spending the extra money for this integrated unit simplifies seasonal maintenance significantly. It is the premier choice for anyone looking to reduce the complexity of their water distribution setup.

Charlotte Pipe Sch 40 Union: The Everyday Workhorse

For non-pressurized gravity-fed systems or simple garden hose bypasses, there is no reason to over-engineer the solution. Charlotte Pipe Schedule 40 unions provide a reliable, cost-effective connection that holds up perfectly for standard farm utility tasks. They offer the necessary flexibility to disconnect lines when equipment needs to be moved or reconfigured for different seasonal crops.

These unions are widely available and compatible with almost all standard plumbing components found at local supply stores. They are not intended for high-pressure industrial applications, but for standard water movement, they are the gold standard of practicality. Stick with these for general utility lines to keep the budget focused on more critical infrastructure.

John Guest Union: Easiest for Quick PEX Repairs

PEX tubing has revolutionized small-scale farming plumbing due to its flexibility and resistance to freezing. John Guest push-to-connect unions allow for near-instantaneous repairs without the need for specialized crimping tools or solvent welding. When a line bursts in the middle of a cold snap, having these on hand allows for a repair that takes seconds rather than minutes.

These fittings are perfect for temporary setups, such as seasonal greenhouse irrigation or mobile chicken coop waterers. While they are incredibly convenient, ensure the pipe ends are cut perfectly square and free of burrs to maintain a watertight seal. If speed and ease of installation are the primary goals, these unions are an essential addition to the workshop shelf.

Banjo Poly Union: Top Choice for Ag Chemical Lines

Agricultural chemical lines require specialized materials that resist corrosion from fertilizers, pesticides, and cleaning agents. Banjo polypropylene unions are engineered specifically for this level of chemical resistance, far outperforming standard PVC in aggressive environments. Their rugged design also stands up to the mechanical abuse of being stepped on or bumped by farm equipment.

These are essential for sprayer setups or mixing stations where harsh substances frequently cycle through the plumbing. Never substitute standard plumbing unions in lines carrying concentrated fertilizers, as they will quickly degrade and fail. For any chemical management task, the Banjo poly union is the only choice that provides both safety and reliability.

GF CPVC Union: The Go-To for Hot Water Systems

Hot water is a necessity for cleaning dairy equipment or washing down specialized produce, but it spells disaster for standard PVC. CPVC (Chlorinated Polyvinyl Chloride) is specifically formulated to withstand the higher temperatures that would soften and warp common plumbing materials. The GF (Georg Fischer) CPVC union is the industry benchmark for these heated applications.

It provides a secure, leak-proof seal that remains stable even when temperatures fluctuate regularly. Ensure that the proper CPVC-specific solvent cement is used during installation to maintain the integrity of the system. For any hot water plumbing project, bypass standard materials entirely and use this specialized union to avoid a major leak down the road.

Choosing Your Union: PVC, CPVC, Sch 40, or Sch 80?

Selecting the correct material often comes down to matching the union to the existing pipe rather than just picking the most expensive option. Schedule 40 PVC is the industry standard for irrigation and low-pressure drainage, while Schedule 80 provides the thickness required for high-pressure pump discharge lines. CPVC is exclusively for hot water, and polypropylene is reserved for chemical or harsh environment resistance.

• Pressure: Use Schedule 80 if the line is immediately following a pump.
• Temperature: Use CPVC for any line carrying water above 120 degrees Fahrenheit.
• Chemicals: Opt for polypropylene when dealing with fertilizers or sanitation acids.
• Compatibility: Always check that the union material matches the pipe material to ensure a proper bond.

Mixing materials without understanding the pressure and temperature ratings is a common mistake that leads to premature failure. Evaluate the specific requirements of the line before buying to ensure the system is built to last.

How to Install a Solvent Weld Union That Won’t Leak

A leak-free union is rarely the result of the product itself; it is almost always the result of the installation technique. Begin by deburring the pipe ends with a file; a rough edge creates channels for water to escape under pressure. Apply the primer thoroughly to both the pipe and the union socket, followed by a thin, even coat of solvent cement.

Push the pipe into the fitting with a firm, quarter-turn motion to ensure the glue spreads evenly across the entire surface. Hold the connection in place for at least 30 seconds, as the initial bond is deceptively weak. Do not force the union to bear weight or tension while the cement is still curing, as any movement during this window will create a permanent, microscopic fracture that will eventually weep.

Union O-Ring Maintenance for a Leak-Free System

The O-ring is the true secret to a union’s effectiveness, as it provides the soft, compressible surface that creates a water-tight seal. Over time, these rings can dry out, crack, or compress, leading to slow drips that waste water and drive up utility costs. Inspect every union in the system at least once a year, particularly after the winter season.

If an O-ring feels brittle or looks flattened, replace it immediately; do not attempt to patch it with silicone or tape. A light coating of silicone grease can keep the O-ring supple and make the union easier to unscrew in the future. Small, proactive maintenance on these rings prevents the much larger headache of a line flooding a storage area.

Smart Union Placement for Easier Farm Winterizing

Strategic placement of unions is one of the most effective ways to manage the logistical challenge of freezing temperatures. By installing unions at the high and low points of a system, you create natural drain points that allow gravity to clear lines effectively. This prevents the costly expansion damage that occurs when trapped water freezes inside the pipes.

Keep a map of these union locations marked in the barn or pump house so that winterizing becomes a quick, organized process rather than a guessing game. Use these points to break the system into manageable sections, which also aids in troubleshooting if a blockage occurs. Smart planning during the initial installation pays off every single year when the first frost arrives.

Proper plumbing management is the hallmark of a farm that runs smoothly, regardless of the season. By selecting the right union for the specific job and committing to simple, regular maintenance, the frustration of leaks can be relegated to the past. Invest in quality connections now, and ensure the farm water system remains as dependable as the work itself.
