6 Best Din Rail End Plates For Safety-Conscious Wiring

When a motor controller or irrigation timer shifts on a DIN rail during a seasonal heavy rain, the resulting electrical contact could stop an entire production line or irrigation system in its tracks. DIN rail end plates are the quiet protectors of every agricultural control panel, preventing delicate components from sliding into disaster. Choosing the right hardware for a farm environment means balancing mechanical strength against the realities of dust, vibration, and limited workshop time.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Phoenix Contact CLIPFIX 35: Best All-Purpose Pick

The Phoenix Contact CLIPFIX 35 earns its reputation as the industry standard for a reason. Its tool-free mounting mechanism allows for rapid adjustments when adding or removing relay modules during the off-season. The design offers enough rigidity to keep terminal blocks stationary without requiring a permanent, immovable setup.

This end plate excels in general-purpose panels located in climate-controlled barns or sheds. It provides a reliable barrier against lateral movement while remaining easy enough to manipulate with cold or gloved hands. For the average hobby farmer needing a versatile solution for a variety of rail-mounted components, this is the most reliable starting point.

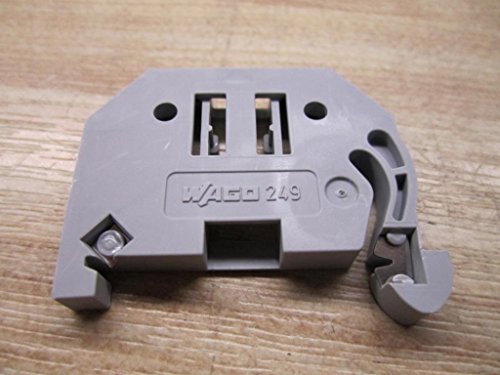

Wago 249-116: Best for Compact Terminal Blocks

Space in a small-scale farm control box is often at a premium, especially when housing multiple zone controllers or lighting timers. The Wago 249-116 is purpose-built to hug the profile of compact terminal blocks, ensuring that every millimeter of rail is utilized efficiently. Its sleek, low-profile design prevents it from interfering with the wiring access of adjacent components.

This choice is ideal for high-density setups where bulky end brackets would obstruct access to pressure-clamp connections. While the footprint is small, the gripping force remains substantial enough to keep dense clusters of terminal blocks from migrating. If the panel is cramped and every inch counts, prioritize this design to maintain order without the clutter.

Weidmüller WEW 35/2: Top Choice for Heavy Vibration

Vibration is the silent enemy of farm equipment, whether it stems from nearby tractor operation, heavy pump cycling, or generator usage. The Weidmüller WEW 35/2 uses a robust, screw-down clamp design that bites into the steel rail with superior force. Unlike spring-loaded alternatives, this unit remains locked in place regardless of constant mechanical resonance.

Because it is constructed for high-impact environments, it is the only sensible choice for panels mounted on portable equipment or machinery that shakes. It sacrifices the convenience of tool-free mounting for the security of a permanent mechanical bond. Rely on this bracket when the equipment environment is prone to mechanical fatigue or frequent jolts.

Allen-Bradley 1492-EAJ35: The Premium Option

When equipment failure is not an option, the Allen-Bradley 1492-EAJ35 serves as the heavy-duty insurance policy for sensitive electronics. The engineering precision here is evident in the tolerance of the clamping mechanism, which fits perfectly on standard 35mm rails. It is built to withstand demanding conditions where heat, vibration, and dust might compromise cheaper hardware.

This is the recommendation for critical infrastructure, such as automated climate control systems for greenhouses or livestock climate sensors. It costs more than standard plastic variants, but the peace of mind offered by its solid construction is worth the investment for vital systems. Choose this when the cost of downtime far exceeds the price of the bracket itself.

TE Connectivity DBL01: The Most Secure Locking End

The TE Connectivity DBL01 focuses on a positive locking mechanism that ensures the end plate cannot be dislodged by accident. Its geometry is designed to prevent “creeping,” a common issue where components migrate along the rail over years of thermal expansion and contraction. The locking action is decisive, providing tactile feedback that confirms the component is properly seated.

This end plate is perfectly suited for installations in environments that are rarely opened, such as outdoor weather-rated junction boxes. Once this unit is tightened down, it acts as a permanent anchor for the entire rail assembly. Opt for this hardware when the installation is “set it and forget it.”

Eaton E/S 35/K/ST/PA: Best Value for Big Projects

When outfitting an entire barn or expanding a workshop, purchasing high-end brackets for every single rail segment can break the budget. The Eaton E/S 35/K/ST/PA offers an excellent balance between cost and build quality, providing a secure hold without the premium price tag. It is a workhorse component that gets the job done without unnecessary bells and whistles.

This is the go-to solution for large-scale wiring projects where standard, reliable protection is needed in bulk. It is sturdy enough for permanent stationary panels yet inexpensive enough to keep a dozen in the supply bin for future expansions. For the value-conscious farmer who needs dependable performance without overspending on brand names, this is the practical choice.

Why an End Plate Is a Critical Safety Component

DIN rails are essentially smooth metal tracks, and without a physical stop at the end, components will naturally vibrate or slide toward the rail’s termination point. If a terminal block slides into an uninsulated rail end, it can cause a short circuit, lead to equipment arcing, or create a fire hazard. End plates provide the mechanical restraint necessary to keep power distribution organized and safe from accidental shifting.

Beyond basic electrical safety, these plates maintain the integrity of wire management. If blocks move, the wiring connected to them experiences tension, which can pull conductors out of their terminals or cause wire breakage over time. Treating end plates as a secondary consideration is a mistake; they are foundational to the longevity of the electrical system.

Choosing Metal vs. Plastic End Plate Materials

The choice between metal and plastic comes down to the thermal and mechanical demands of the panel. Metal end plates offer superior strength and are generally better suited for high-vibration or extreme-temperature environments where plastic might become brittle or deform. They are also non-combustible, which provides a marginal increase in safety in fire-prone agricultural settings.

Plastic end plates, however, are excellent for general-purpose applications due to their non-conductive properties. They eliminate the risk of accidental contact with the metal rail and are often easier to install without the risk of scratching the rail finish. For standard, indoor control panels, high-quality industrial plastic is usually sufficient and cost-effective.

Proper Installation for a Vibration-Proof Setup

Installing an end plate starts with a clean, de-burred DIN rail. If the rail edge is rough or has metal shavings from cutting, the bracket will never seat properly, regardless of how tightly the screw is turned. Ensure the bracket is oriented so the tightening mechanism is accessible for future maintenance, avoiding corners that require a specialized offset screwdriver.

Once positioned, verify that the bracket is square to the rail. If it sits at an angle, the clamping force is uneven, which reduces its ability to resist vibration. Tighten the screws until snug, but avoid over-torquing plastic variants, as this can crack the housing and compromise the entire assembly.

Sizing End Plates to Your Specific DIN Rail Type

While the “35mm” DIN rail (TS 35) is the industry standard for most farm automation, verify the specific profile of the rail before purchasing. Some rails have different depths or mounting hole patterns that can interfere with specific bracket designs. Mismatched components lead to a loose fit, rendering the end plate useless at stopping movement.

Always cross-reference the manufacturer’s documentation for the bracket against the rail specification. If the rail is heavily loaded with deep-profile terminal blocks, ensure the end plate has a corresponding profile height to prevent the components from tipping over the top. Taking an extra minute to measure the rail depth ensures a perfect, secure fit the first time.

Investing in high-quality DIN rail end plates is a simple but essential step in maintaining a reliable and safe farming infrastructure. By selecting the hardware that matches your specific environmental needs, you ensure your equipment stays powered and protected through every season. Consistent maintenance and proper hardware choices turn a vulnerable control box into a dependable farm asset.
