6 Best Pressure Switches For Pneumatic System Automation

Whether it is automating a greenhouse irrigation system or controlling pneumatic actuators on a small-scale feed mill, the pressure switch is the silent brain of the operation. Without a reliable way to monitor air pressure, equipment runs inefficiently or fails when it matters most during the busy harvest season. This guide breaks down the best pneumatic switches to ensure the farm setup stays running smoothly without constant intervention.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

SMC ISE40A-01-R-M: Top Pick for Precision

The SMC ISE40A stands out as the industry standard for high-accuracy pneumatic monitoring in tight spaces. Its standout feature is the dual-display digital readout, which allows for simultaneous monitoring of both current pressure and the setpoint. This transparency is invaluable when calibrating sensors for delicate operations like pneumatic seed planting or automated egg-handling sorters.

Precision comes at a slight premium, but the reliability of the ISE40A effectively eliminates the downtime caused by false triggers or mechanical drift. It features a robust, tamper-resistant locking mechanism that prevents vibrations from the farm shop compressor from throwing off the settings. If the task requires exacting pressure windows to prevent equipment damage, this is the hardware of choice.

Festo SPAU-P10R: Best Smart Switch Option

Connectivity and data oversight are changing how hobby farms manage resources, and the Festo SPAU-P10R sits at the forefront of this shift. It offers IO-Link capabilities, allowing for seamless integration with smart controllers that monitor system health remotely. For a farmer who manages multiple outbuildings, being able to track pressure fluctuations via a digital interface saves hours of physical inspections.

Beyond its connectivity, the SPAU-P10R is remarkably modular, offering a wide array of mounting configurations to fit crowded control panels. It is designed for those who view automation as a way to scale efficiency rather than just a convenience. While the initial setup requires a bit more technical aptitude, the long-term payoff in system visibility is unmatched.

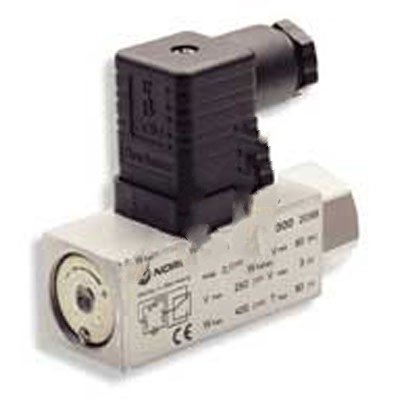

Norgren 18D Electronic: Most Durable Design

In a dusty barn or a damp packing shed, delicate sensors often perish quickly. The Norgren 18D is built specifically to survive these hostile environments. Its housing is encased in a protective shell that resists the corrosive effects of condensation and the inevitable dust buildup that plagues small-scale agriculture.

This switch favors consistency over complex features, focusing on a long service life with minimal maintenance. It is the ideal candidate for a primary compressor line where the switch is subjected to constant cycling and mechanical vibration. If the goal is to install a component and forget about it for the next five years, the Norgren 18D is the logical investment.

Parker PSE100-R01: For Harsh Environments

Environmental resilience is the defining characteristic of the Parker PSE100-R01. It is designed to handle extreme temperature fluctuations, making it a reliable performer in unheated equipment sheds or exposed irrigation pump houses. Its IP-rated casing ensures that moisture and debris stay out of the sensitive internal circuitry.

The switch performs exceptionally well in scenarios where air lines might be exposed to outdoor elements. It doesn’t rely on fragile external buttons that could snap or become clogged with grit over time. For those operating in climates where seasons shift dramatically, the Parker PSE100 provides the necessary peace of mind that the pneumatic controls won’t seize up mid-winter.

Clippard EPD-05-P: Excellent Budget Choice

Not every pneumatic project requires high-end, programmable sensors. The Clippard EPD-05-P is the go-to solution for simple tasks like basic compressor cycling or triggering a simple air-assisted tool. It provides a straightforward, binary signal that is easy to wire into existing farm machinery without needing complex documentation or software.

What the EPD-05-P lacks in advanced digital features, it makes up for with simplicity and value. It is easy to replace, highly affordable, and robust enough for standard utility tasks. For the hobby farmer working on a tight budget, this switch proves that high-end automation does not always require high-end spending.

Airtac DPS-N01A-P: Easiest Switch to Set Up

Complexity is the enemy of progress on a busy farm, and the Airtac DPS-N01A-P recognizes this with its intuitive, user-friendly interface. It features a large, easy-to-read screen and a straightforward menu structure that allows for setting pressure ranges in seconds. It is designed for users who want to be up and running immediately without spending an afternoon deciphering a thick technical manual.

This switch is perfect for retrofitting existing systems where the user needs a quick fix that just works. The installation process is simplified through standard thread sizing and a clear wiring diagram located directly on the unit. For a quick upgrade to an older pneumatic system, the Airtac offers the path of least resistance.

Choosing Your Ideal Pneumatic Pressure Switch

Selecting the right switch requires balancing technical necessity against the realities of the farm environment. Begin by calculating the peak pressure the system will reach; choosing a switch with a range too close to the max limit leads to premature failure. Furthermore, consider the duty cycle, as systems that cycle thousands of times per day require higher-rated components than those used only during harvest.

Budget for the environment rather than just the task. A cheap sensor might save money in the short term, but if it sits in a humid, dusty area, the cost of frequent replacements will quickly exceed the price of a more robust, weather-sealed model. Always cross-reference the thread type and electrical voltage before purchasing to ensure compatibility with existing pneumatic hardware.

Key Features: Hysteresis, Setpoint, and More

Understanding the language of pressure switches is vital for effective system control. The setpoint is the pressure value at which the switch activates, while hysteresis—often called the “deadband”—is the difference in pressure between the activation point and the deactivation point. A narrow hysteresis leads to rapid cycling, which can burn out a compressor motor, while a wider hysteresis provides a stable, efficient buffer.

Don’t ignore the importance of response time and mounting options. Response time determines how quickly the switch triggers an action once the threshold is crossed, which is critical for precision tasks like sorting or timing. Mounting style, whether panel-mount or direct-port, dictates how cleanly the sensor integrates into the existing assembly and how easily it can be accessed for future recalibration.

Safe Installation and Wiring Best Practices

Pneumatic systems store energy, and improperly installed switches can become points of failure or leaks. Always use proper thread sealant, such as PTFE tape or liquid sealant, to prevent air leaks that force the compressor to cycle unnecessarily. Ensure that all electrical connections are housed in moisture-resistant boxes to prevent short circuits caused by barn humidity or seasonal condensation.

Before finalizing the installation, verify that the switch is not subjected to extreme mechanical vibrations. If the switch is mounted directly to a vibrating compressor, consider using a short length of flexible hose to decouple the switch from the vibration source. This simple step extends the life of the internal components significantly and prevents false readings caused by sensor shake.

Troubleshooting Common Pressure Switch Issues

When a system fails to trigger as expected, the issue is often not the switch itself, but the pneumatic plumbing. Check for leaks around the sensor fitting, as even a small drop in pressure can cause the switch to cycle rapidly or fail to reach its setpoint. If the sensor display is active but the equipment isn’t responding, inspect the relay or controller interface to ensure the switch signal is being successfully communicated.

Erratic readings are another common frustration, usually caused by pressure spikes or water accumulation in the air lines. Installing an inline filter or water separator upstream of the switch will resolve most of these issues by keeping the sensing element clean and dry. Should the switch lose calibration, reset it to factory defaults and check the supply voltage, as unstable power from a generator or long extension cords can cause sensors to behave unpredictably.

Choosing the right pressure switch is about matching the device to the environmental reality of the farm. Whether prioritizing the rugged durability needed for an outdoor shed or the precise control required for automated workshops, these options provide a solid foundation for any pneumatic system. Properly installed, these components will serve as reliable sentinels for years of productive farm work.
