8 Hardware Items for Securing Heavy-Duty Outdoor Kennel Runs

Building a secure outdoor kennel run on a hobby farm requires more than just standard fencing wire and a prayer. Livestock guardians, working dogs, and valuable family pets need a fortress that keeps them safely inside while keeping determined predators firmly on the outside. Relying on flimsy hardware is a recipe for disaster, but choosing the right heavy-duty components ensures peace of mind through every season.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Planning Your Outdoor Kennel for Maximum Security

Before driving the first post or buying a single panel, mapping out the kennel’s location is critical. A secure run must sit on level ground with excellent drainage to prevent soil erosion from undermining the perimeter. Placing the structure within sight of the farmhouse offers natural surveillance, while utilizing natural windbreaks protects animals from harsh weather.

The layout must account for both the strength of the animal inside and the cunning of predators outside. Large working breeds can easily exploit weak corners, loose panels, or soft ground. Plan for a concrete pad or a deeply buried perimeter apron to eliminate digging vulnerabilities from day one.

Gate placement is another vital planning detail. Position the gate away from prevailing winter winds and ensure there is enough clearance for snow accumulation. A well-planned layout reduces the physical stress placed on the hardware, making the entire installation much more resilient over time.

Earth Anchor – Gripple Badger Anchor Kit

When a kennel run sits on open ground rather than a concrete pad, high winds or a heavy dog leaning against the panels can cause the entire structure to shift. Earth anchors provide the invisible foundation needed to tether the frame securely to the earth. Without them, a determined guardian dog can lift the bottom of a panel and slip underneath.

The Gripple Badger Anchor Kit is the premier choice for securing outdoor frames without the hassle of pouring concrete footings. It features a unique, subterranean anchor that is driven deep into the ground and then rotated into a locking position using a tensioning tool. The heavy-duty galvanized wire rope resists rust and provides immense holding power even in loose, sandy soils.

• Holding capacity: Up to 800 lbs of pull-out force
• Cable material: High-tensile galvanized steel
• Installation depth: 2 to 3 feet below the surface

Before purchasing, ensure the soil is relatively free of large, solid boulders, as driving the anchor plate requires a clear path downward. A drive rod and a heavy sledgehammer are necessary for installation, which may require some physical effort in hard-packed clay.

This kit is ideal for hobby farmers setting up kennels on pasture or lawn where concrete is impractical. It is not recommended for rocky ledges where mechanical anchors cannot penetrate.

Gate Latch – Snug Cottage Hardware Lockable Latch

The gate latch is the single most active point of failure on any kennel run. Smart dogs quickly learn to manipulate simple flip-latches, while heavy winds can rattle loose closures open. A secure latch must lock positively and resist the constant vibration of animals jumping against the gate.

The Snug Cottage Hardware Lockable Latch offers commercial-grade security with a simple, fail-safe design. Constructed from heavy-gauge steel and finished with a thick layer of hot-dip galvanization, this latch will not rust or bind in freezing winter conditions. Its dual-sided operation allows easy access from inside or outside the run, and it features a dedicated padlock hole for absolute security.

• Material: Heavy-duty hot-dip galvanized steel
• Latch style: Gravity-assisted drop bar
• Lock compatibility: Accepts padlocks with up to a 3/8-inch shackle

Installation requires drilling through the gate post, so a high-quality drill bit is a must. The latch requires a consistent gate gap of one to two inches to function smoothly, meaning sagging gates must be corrected before mounting.

This latch is perfect for farmers who need absolute certainty that their gates cannot be bumped or jiggled open. It is not suited for ultra-lightweight, thin-walled aluminum gates that cannot support its heavy weight.

Panel Clamp – Midland Hardware Chain Link Panel Clamp

Modular kennel panels offer great flexibility, but they are only as strong as the joints connecting them. If the panels can twist or pull apart, a large dog will quickly exploit the gap to escape. Panel clamps, often called saddle clamps, lock adjacent frames together to create a rigid, continuous wall.

The Midland Hardware Chain Link Panel Clamp is built from thick, pressed galvanized steel designed to withstand immense lateral pressure. These clamps wrap completely around the frame tubing, creating a friction lock that prevents any slipping or rattling. The included heavy-duty carriage bolt ensures that the nut faces outward, preventing the animal inside from rubbing against sharp threads.

• Available sizes: 1-3/8 inch and 1-5/8 inch configurations
• Construction: Heavy-gauge rust-resistant pressed steel
• Fastener: Grade 2 galvanized carriage bolt

Always measure the outside diameter of the kennel frame tubing before ordering, as even a sixteenth of an inch variance can prevent a tight fit. Over-tightening can crush thin-walled tubing, so use a hand wrench rather than an impact driver to secure them.

This hardware is a necessity for anyone setting up a multi-panel modular kennel run. It is not suitable for square-tube frames, as these clamps are specifically contoured for round pipe.

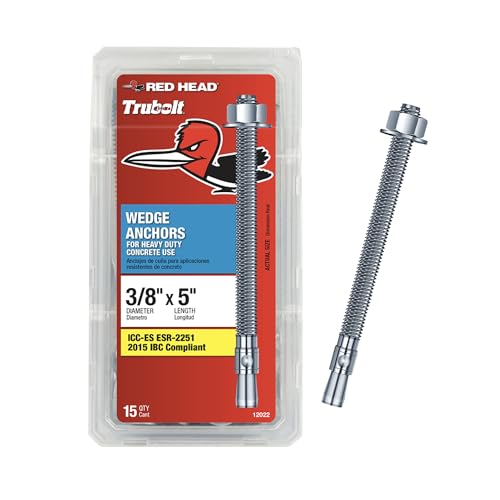

Concrete Anchor – Red Head Wedge Anchor Bolts

A concrete pad is the gold standard for kennel sanitation and security, but the metal frame must be permanently affixed to it. Without solid anchoring, a large dog can slide the entire kennel across the concrete or lift the edges. Wedge anchors expand inside pre-drilled holes to lock the base plates down permanently.

The Red Head Wedge Anchor Bolts are the industry standard for securing heavy metal structures to cured concrete. Once driven into a pre-drilled hole and torqued down, the expansion clip at the base flares out, wedging itself immovably into the concrete. Their high shear and pull-out strength ensure that even the most frantic dog cannot budge the frame.

• Anchor diameter: 3/8-inch and 1/2-inch options
• Material: Heavy-duty zinc-plated steel
• Thread type: Fully threaded for maximum adjustability

Installing these anchors requires a hammer drill and a carbide-tipped masonry bit that matches the anchor diameter exactly. Because these anchors are permanent once expanded, precise measurement and layout are critical before drilling.

These anchors are the perfect choice for permanent kennel setups on concrete slabs. They are not suitable for use in soft brick, mortar joints, or asphalt.

How to Prevent Predators from Digging Under the Run

Predators like coyotes, foxes, and stray dogs will almost always attempt to gain entry by digging under the kennel walls. Similarly, many dog breeds have a natural instinct to dig their way out. Relying solely on the weight of the kennel frame to block these attempts is a critical mistake that often leads to escapes.

The most effective defense is a physical barrier known as a dig apron. This involves laying heavy-gauge wire mesh flat on the ground extending outward from the kennel perimeter by at least two feet. Secure this mesh to the bottom of the kennel frame and pin it tightly to the earth with heavy-duty staples. Over time, grass will grow through the mesh, locking it invisibly into the sod.

Alternatively, trenching around the perimeter and burying the chain link fence twelve to eighteen inches deep provides a vertical barrier. Filling this trench with packed gravel or concrete mix adds an extra layer of deterrence. Whichever method is chosen, ensuring there are no gaps between the bottom rail of the fence and the digging barrier is paramount.

Ground Staple – Sandbaggy Heavy Duty Rebar J Hooks

When installing an anti-dig wire apron or securing the bottom rail of a fence on soft ground, standard landscape staples are useless. Large dogs and wild predators can easily pull light wire staples out of the dirt. You need heavy, ribbed steel stakes that bite into the soil and refuse to budge.

The Sandbaggy Heavy Duty Rebar J Hooks are built like industrial tent pegs, designed to anchor heavy materials to the earth. Made from 3/8-inch steel rebar, these 12-inch hooks feature a ribbed texture that creates immense friction against the surrounding soil. The J-hook design slips perfectly over the bottom rail of a kennel panel or the wire of an anti-dig apron.

• Length: 12 inches for deep soil penetration
• Thickness: 3/8-inch heavy-duty steel rebar
• Finish: Raw steel (rusts slightly to increase soil grip)

Driving these hooks into hard-packed clay or rocky soil requires a mini-sledgehammer and some physical effort. Because they are raw steel, they will develop a surface rust over time, which actually helps them bond with the surrounding earth but may stain bare hands during installation.

These J-hooks are excellent for securing wire aprons on grassy or muddy perimeters. They are not suitable for rocky ground where driving a 12-inch stake is physically impossible.

Steel Wire Tie – Panduit Stainless Steel Cable Ties

Standard aluminum fence ties or plastic zip ties are major security risks on a kennel run. Dogs can chew through plastic in minutes, and determined animals can bend aluminum ties with their teeth or paws, creating a gap in the mesh. Stainless steel ties provide a permanent, chew-proof connection between the wire fabric and the support frame.

The Panduit Stainless Steel Cable Ties offer industrial-grade strength and durability for outdoor agricultural environments. Constructed from high-grade 304 stainless steel, these ties feature a self-locking ball bearing mechanism that locks the tie tightly in place. They resist UV rays, extreme heat, and freezing temperatures without degrading or losing tension.

• Material: 304 stainless steel for superior corrosion resistance
• Tensile strength: Rated up to 250 lbs of loop tensile strength
• Design: Smooth rounded edges to prevent injury to animals

Installing these ties tightly requires a specialized tensioning tool or a pair of heavy pliers and wire cutters. When cutting the tail end off, ensure it is cut flush to prevent sharp edges that could scratch or injure an energetic dog.

These ties are a must-have for securing chain link mesh, privacy screening, or hardware cloth to kennel frames. They are not recommended for temporary enclosures where frequent disassembly is required.

Weatherproof Padlock – Master Lock ProSeries 6121

An unlatched gate is an open invitation for trouble, whether from an escaping animal or a trespasser. A standard padlock will quickly rust, freeze, or seize up when exposed to rain, snow, and mud. A dedicated weatherproof padlock keeps the gate secure while ensuring you can always unlock it, even in the dead of winter.

The Master Lock ProSeries 6121 is built specifically to withstand the harshest outdoor elements. It features a heavy steel body protected by a durable Xenoy thermoplastic cover, complete with a dual-locking mechanism to resist prying and pulling. A protective cap covers the keyway, preventing dirt, ice, and moisture from clogging the internal brass cylinder.

• Shackle material: Tough boron alloy steel
• Weatherproofing: Full thermoplastic jacket with keyway seal
• Lock mechanism: 5-pin cylinder for pick resistance

While highly resistant to the elements, the lock still benefits from a quick spray of graphite lubricant before the winter freeze. The thick protective cover makes the lock slightly bulky, so ensure your gate latch hole has enough clearance for the 5/16-inch shackle.

This padlock is ideal for outdoor farm gates and kennel runs exposed to heavy rain, snow, and dust. It is not necessary for indoor kennels or sheltered outbuildings where standard padlocks suffice.

Tension Bar – YARDGARD Galvanized Tension Bar

Without proper tension, chain link fabric will sag, bow, and pull away from the posts when a dog leans or jumps against it. A tension bar slides vertically through the end weaves of the fabric, distributing the pulling force evenly across the entire height of the fence. This prevents localized stretching and keeps the mesh taut and secure.

The YARDGARD Galvanized Tension Bar is a rugged, reliable component that ensures your chain link fabric remains drum-tight. Made from high-quality hot-dip galvanized steel, it resists rust and corrosion even when exposed to constant moisture at ground level. It slides smoothly into standard chain link mesh and mates perfectly with standard tension bands.

• Material: Rust-resistant galvanized steel
• Dimensions: 3/16 inch thick by 3/4 inch wide
• Compatibility: Works with standard tension bands and carriage bolts

Make sure to purchase a bar that matches the exact height of your fence fabric; a bar that is too long will stick out and create a hazard, while one too short will leave the top or bottom loose. Installing a tension bar requires a tension bar puller or a come-along tool to stretch the fence fabric tight before fastening.

This bar is essential for anyone building or reinforcing a traditional chain link kennel run. It is not used on pre-assembled welded wire panels that feature rigid, built-in frames.

Essential Tools Needed for a Secure Installation

Having the right hardware is only half the battle; installing it correctly requires a specific set of tools. Attempting to make do with basic household hand tools will lead to loose fittings, stripped bolts, and an insecure kennel. Gathering the proper equipment before you begin saves time and prevents installation headaches.

For fastening panel clamps and gate latches, a high-quality socket set and a set of open-ended wrenches are indispensable. If you are mounting the kennel to a concrete pad, a heavy-duty hammer drill equipped with carbide-tipped masonry bits is required to set the wedge anchors. A standard drill will simply burn out its motor when faced with cured concrete.

To handle the tensioning of chain link fabric and the installation of earth anchors, a few specialized tools are highly recommended. A fence stretcher or come-along winch is necessary to pull the wire mesh taut before securing the tension bars. Additionally, a heavy mini-sledgehammer is essential for driving rebar J-hooks and earth anchors deep into the ground.

Maintaining Your Kennel Hardware Against the Elements

Outdoor hardware is constantly subjected to rain, snow, mud, and the corrosive effects of animal waste. Over time, even the highest-quality galvanized steel can begin to degrade if left completely unmaintained. A quick, seasonal inspection routine can catch minor wear before it turns into a structural failure.

Twice a year, walk the perimeter of the kennel to check for loose nuts, bent clamps, or shifting anchors. The vibration from dogs jumping against the panels can slowly back nuts off their bolts. Applying a thread-locking compound during installation can prevent this, but manual checks are still highly recommended.

Lubrication is key to keeping moving parts, such as gate latches and padlocks, operating smoothly. Use a dry graphite lubricant or a high-quality marine-grade grease on hinges and lock cylinders before winter arrives. Avoid sticky wet lubricants that attract dust and grit, which can bind the internal mechanisms over time.

Investing in heavy-duty hardware and taking the time to install it properly ensures your outdoor kennel remains a safe haven for years to come. By choosing components designed to withstand both animal behavior and the elements, you protect your animals and your peace of mind. Keep your tools handy, inspect your setup seasonally, and enjoy the security of a farm-proof kennel run.
