8 Tools for Managing Muddy Pasture Gates in Wet Weather

Cold rain falls as boots sink ankle-deep into the heavy, sucking clay right at the pasture gate. This daily winter struggle drains energy, stresses livestock, and ruins expensive footwear in a matter of weeks. Transforming these high-traffic gateway swamps into stable, dry passages requires a strategic combination of the right mud-busting tools and smart water management.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Why Pasture Gates Turn into Muddy Quagmires

Gateways are the ultimate bottleneck on any hobby farm. Every single day, livestock and farmers funnel through these narrow gaps, concentrating hundreds of pounds of pressure onto a tiny footprint. This relentless hoof and boot traffic quickly destroys the soil structure, shearing grass roots and compacting the earth beneath.

Once the soil is compacted, it loses its natural ability to drain. Rainwater pools on the surface instead of sinking in, mixing with the loosened topsoil to create a thick, soup-like slurry. Compounding the issue, gates are often installed at low points or natural transition zones where runoff naturally accumulates, turning a minor drainage issue into a seasonal nightmare.

Mud Control Grid – Hahn Plastics Mudcontrol Grid

Mud grids act as a structural snowshoe for your pasture, distributing heavy loads across a wide surface area to prevent hooves and tires from sinking. By interlocking together, these grids create a stable, free-draining surface that keeps animals elevated above the mud. They eliminate the endless cycle of dumping gravel that simply sinks into the soil abyss.

The Hahn Plastics Mudcontrol Grid stands out because of its high-strength, recycled engineered plastic construction that can support up to 60 tons per square meter. Unlike flimsy garden-grade grids, these massive tiles are designed specifically for livestock hoof action and small tractor traffic. They feature a unique interlocking design that prevents shifting under lateral pressure, ensuring the gateway remains flat and secure.

• Dimensions: 19.7" x 19.7" x 2.1" per tile
• Weight: Approximately 15 lbs per tile
• Material: 100% recycled polyethylene
• Best for: High-traffic gates, paddock sacrifice lots, and feeding areas

While installation is straightforward, laying these grids on extremely uneven, soup-like mud without any leveling will result in a bumpy surface. For the best long-term performance, scrape away the worst of the muck and apply a thin bedding layer of coarse sand or fine gravel before clipping the grids together. This product is ideal for farmers dealing with deep, persistent mud who want a permanent, reusable solution, but it may be overkill for dry, sandy soils with minor drainage issues.

Geotextile Fabric – Mutual WF200 Underlayment

Dumping gravel directly onto mud is a temporary fix; within a single season, the stone inevitably sinks and the mud rises to swallow it. Geotextile fabric solves this by acting as a permanent barrier that separates the soil beneath from the aggregate on top. It allows water to pass through freely while preventing the migration of fine soil particles upward into your clean gravel layer.

The Mutual WF200 Underlayment is a woven geotextile fabric engineered with high-tensile polypropylene fibers that resist tearing under heavy loads. This specific fabric boasts a 200-pound grab tensile strength, making it tough enough to handle sharp gravel and heavy livestock hooves without puncturing. Its superior water flow rate ensures that your gateway drains quickly without clogging over time.

• Material: Woven polypropylene
• Tensile Strength: 200 lbs
• Roll Sizes: Available in 12.5′ x 36′ or larger utility rolls
• Best for: Gravel driveway bases, under-mud grid stabilization, and French drains

Remember that geotextile fabric must always be covered with a protective layer of gravel, wood chips, or mud grids; leaving it exposed to direct hoof traffic or UV rays will destroy it. Secure the fabric with heavy-duty steel landscape staples every few feet to keep it from shifting during backfilling. This is a non-negotiable purchase for any farmer planning a gravel-based gateway renovation, but it is unnecessary if you are using self-supporting mud grids directly on firm soil.

Gate Wheel – Tech Team Spring-Loaded Caster

Heavy metal gates naturally sag over time, dragging through the mud and putting immense strain on the gate posts. A dedicated gate wheel supports the free end of the gate, allowing it to roll smoothly across the ground rather than plow through the muck. This simple addition saves physical effort and extends the lifespan of your fencing infrastructure.

The Tech Team Spring-Loaded Caster is built to handle the rough, uneven terrain of a working pasture. It features a heavy-duty, shock-absorbing spring that provides up to two inches of vertical travel, allowing the wheel to glide over bumps and dips without binding. The solid rubber tire won’t go flat, and the universal mounting plate easily attaches to both round tube gates and wooden farm gates.

• Wheel Diameter: 8 inches
• Weight Capacity: 125 lbs
• Spring Travel: 2 inches of vertical compression
• Best for: Sagging metal tube gates, heavy wooden gates, and uneven pasture entrances

Keep in mind that a gate wheel requires a semi-firm path to roll on; if your gateway is already a deep, liquid swamp, the wheel will simply sink and act as an anchor. Pair this tool with a mud grid or a gravel pad to give the wheel a solid running surface. It is perfect for heavy-duty gates operated daily by hand, but less suitable for lightweight electric tape gates or automated gate systems.

Mud Scraper – Bully Tools Heavy Duty Scraper

Before you can install any drainage solutions or grids, you must clear away the thick, accumulated layer of surface muck. A standard shovel is poorly suited for this task, as wet clay sticks to the blade and creates a heavy, back-breaking mess. A dedicated mud scraper slices through compacted mud and pushes it away with minimal effort.

The Bully Tools Heavy Duty Scraper features an extra-thick, 11-gauge steel blade that resists bending even when scraping frozen ground or heavy clay. The blade is welded directly to a reinforced collar, eliminating the weak points found on cheaper, riveted alternatives. Its high-strength fiberglass handle is virtually indestructible and provides excellent leverage for peeling up stubborn layers of wet soil.

• Blade Material: 11-gauge hot-rolled steel
• Handle Material: Triple-wall fiberglass
• Blade Width: 7 inches
• Best for: Scraping concrete pads, clearing gateway mud, and cleaning barn floors

This tool is designed for heavy physical labor, meaning its solid steel construction makes it heavier than a standard garden hoe. Users should pace themselves and let the weight of the tool do the cutting work. It is an essential hand tool for any hobby farmer who needs to manually prep gate areas or clean off rubber mats, but it won’t replace a tractor blade for large-scale earthmoving.

Gate Handle – Gallagher Insulated Spring Handle

Operating electric gates in wet weather can be a shocking experience if your equipment is sub-par. Muddy boots and wet hands lower your body’s electrical resistance, making high-quality insulation on your gate handles absolutely critical. A reliable handle allows you to open and close electrified boundaries safely without turning off the fence charger.

The Gallagher Insulated Spring Handle is the gold standard for electric fencing due to its superior UV-resistant plastic shield and deep protective ribs that prevent electrical tracking. Inside, a heavy-duty, galvanized spring extends to bridge gate gaps up to ten feet wide while maintaining constant tension. The bright yellow color ensures high visibility during dark winter mornings and evening chore runs.

• Material: UV-stabilized polymer and galvanized steel
• Maximum Span: 10 feet
• Insulation Rating: Up to 15,000 volts
• Best for: Electric polywire, polyrope, and high-tensile wire gate openings

Ensure the hook mechanism is securely attached to a well-anchored gate post, as the spring tension can pull weak posts out of alignment over time. Avoid letting the spring drag through the wet mud when the gate is open, as this can short out the fence system. This handle is a must-have for rotational grazing setups and temporary electric cross-fences, but is not needed for non-electrified wooden or steel panel gates.

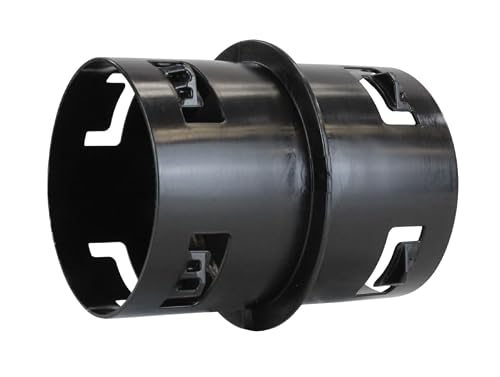

Drainage Pipe – ADS Singlewall Perforated Pipe

Standing water is the root cause of mud; if you do not give water a path to escape, your gateway will remain soft indefinitely. Installing a subsurface French drain using perforated pipe channels water away from high-traffic gate zones and dumps it into a nearby ditch or swale. This lowers the water table directly beneath the gate, allowing the soil to dry out faster.

The ADS Singlewall Perforated Pipe is highly flexible and corrugated, allowing it to navigate around roots, rocks, and fence posts without the need for expensive elbow fittings. The pipe features precision-cut slits that allow water to enter along its entire length while keeping large debris out. Its lightweight polyethylene construction makes it easy for a single person to carry and install in a hand-dug trench.

• Diameter: 4 inches
• Material: High-density polyethylene (HDPE)
• Configuration: Perforated with 8-slot pattern
• Best for: French drains, curtain drains, and diverting surface runoff

To prevent fine clay and silt from clogging the perforations over time, always wrap the pipe in a fabric sleeve (or "silt sock") and backfill the trench with clean, washed gravel. Ensure the trench has a downward slope of at least one inch per ten feet to keep the water moving. This pipe is ideal for gates positioned at the bottom of slopes, but is unnecessary for well-drained, sandy upland gateways.

Rubber Mat – Tractor Supply Rubber Stall Mat

Sometimes you need an immediate, heavy-duty solution to stop the mud before you have time for a full excavation project. Laying down thick rubber mats directly over muddy spots provides an instant, slip-resistant platform for both humans and animals. This prevents hooves from churning the soil deeper and keeps boots clean during daily feeding routines.

The Tractor Supply Rubber Stall Mat is a legendary farm staple made from 3/4-inch thick vulcanized rubber that weighs nearly 100 pounds per mat. This immense weight is a key feature, as it prevents the mat from shifting, curling, or sliding around in the slickest mud. The textured top surface provides excellent traction for wet hooves, while the grooved underside allows minor moisture to drain away.

• Dimensions: 4 feet x 6 feet
• Thickness: 3/4 inch
• Weight: Approximately 94 lbs
• Best for: Gateways, wash racks, run-in sheds, and high-traffic feeding stations

Because these mats are incredibly heavy, moving them into place is a two-person job, and they require a relatively flat surface to prevent them from acting like a seesaw over deep ruts. Over time, mud can ooze up around the edges, so it is best to lay them over a thin bed of gravel or wood chips if possible. They are perfect for small-scale hobby farms needing a quick fix in high-use walkways, but are less practical for long, expansive lanes.

Gate Latch – Speeco Two-Way Lockable Latch

Fumbling with rusty chains or stiff slide bolts while standing in slippery mud is frustrating and dangerous, especially when managing excited livestock. A high-quality gate latch allows you to open and close gates with a single hand, keeping your other hand free for buckets, lead ropes, or balancing yourself. A reliable latch secures the gate instantly upon swinging shut, preventing accidental escapes.

The Speeco Two-Way Lockable Latch is designed to allow gates to swing in both directions, offering maximum flexibility when maneuvering livestock or equipment. It features a heavy-duty, zinc-plated steel construction that resists rust and withstands the physical impact of shifting gates. The latching mechanism can be operated easily with a single hand—even while wearing thick winter gloves—and includes a hole for a padlock or carabiner for added security.

• Material: Zinc-plated heavy-duty steel
• Gate Compatibility: Fits 1-5/8" to 2" round tube gates
• Latch Type: Two-way mechanical catch
• Best for: Pasture gates, corral panels, and high-use perimeter fences

Proper installation requires precise alignment between the gate and the latch post, so any post sagging must be corrected first. If your fence posts shift significantly during winter freeze-thaw cycles, you may need to adjust the latch height occasionally. This latch is ideal for farmers who frequently pass through gates with full hands, but is not compatible with traditional square-cut wooden gates without custom brackets.

How to Install Mud Grids for Best Results

Installing mud grids is not a matter of simply throwing them into the muck and hoping for the best. To ensure a lifetime of stability, start by scraping away the top two to three inches of liquid mud and organic material until you reach a semi-firm subgrade. If you skip this step, the grids will eventually settle unevenly, creating high and low spots that defeat the purpose of the grid system.

Once the area is cleared and leveled, lay down a layer of woven geotextile fabric to act as a separation barrier. On top of the fabric, spread a thin, one-inch leveling layer of angular gravel or coarse sand. Lay the mud grids on this bed, interlocking them tightly as you go, and use a rubber mallet to ensure the joints are fully seated.

Finally, backfill the open cells of the grids with pea gravel, angular stone dust, or coarse sand. This filling locks the grids in place, protects the plastic from UV degradation, and provides a highly slip-resistant surface for livestock. Run a compactor or drive a small utility vehicle over the filled grids to settle the material completely before opening the gate to heavy traffic.

Creative Ways to Divert Water From Gate Areas

Managing mud is ultimately about managing water; if you can keep water from reaching the gateway, you have won half the battle. One of the simplest methods is digging a shallow, grass-lined swale just uphill from the gate to intercept surface runoff and channel it away. This gentle depression acts as a natural gutter, redirecting the flow around the high-traffic zone rather than letting it pool where animals walk.

For gates located near barns or run-in sheds, roof runoff is often the hidden culprit. Installing heavy-duty gutters on these structures and routing the downspouts far away from the gate area can eliminate hundreds of gallons of water from the immediate soil. If a swale isn’t practical, building a low, compacted soil berm uphill from the gate can act as a mini-levee, forcing sheet flow to bypass the entrance entirely.

In areas with flat terrain where water simply sits, creating a French drain system alongside the gateway fence line is highly effective. Dig a trench parallel to the gate, line it with geotextile fabric, lay a perforated pipe, and fill it with clean stone. This subsurface drain lowers the water table under the gate, keeping the top layer of soil firm even during prolonged periods of winter rain.

Maintaining Your Gateways Throughout the Winter

Even the best-engineered gateway systems require ongoing maintenance to survive the harsh winter months. Organic matter like manure, wasted hay, and fallen leaves will quickly break down into fine compost, which holds water and turns into a slick layer of mud on top of your grids or gravel. Sweep or scrape your gateway pads regularly to keep them free of organic debris.

Freezing temperatures can cause the ground to heave, which shifts fence posts and throws gate latches out of alignment. Check your gate hinges and latch mechanisms once a month, lubricating moving parts with a dry graphite spray that won’t attract dirt or freeze. Adjust the hinge bolts as needed to ensure the gate swings freely and does not drag across your newly installed ground-reinforcement systems.

If you experience heavy snow or ice, avoid using harsh chemical de-icers near pasture gates, as these can run off into the soil and harm livestock hooves or pasture grass. Instead, use a light top-dressing of coarse sand or agricultural lime to provide instant traction on slippery surfaces. A little proactive care during the coldest months ensures your gateways remain safe, functional, and mud-free until spring arrives.

Taking control of muddy pasture gates is a smart investment that pays off in reduced chore time and healthier livestock. By combining physical barriers like mud grids and geotextiles with smart water diversion, you can keep your boots dry all winter long. With these eight essential tools in place, wet weather will no longer turn your daily farm routines into an uphill battle.
