8 Lighting and Electrical Kits for Rewiring a Stock Trailer

Hauling livestock at dawn or late in the evening requires absolute electrical reliability on back roads. Corroded wiring, broken grounds, and flickering lights are dangerous hazards when trailering animals to market or the vet. Completely rewiring a stock trailer with dedicated components eliminates troubleshooting guesswork and restores peace of mind on every trip.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Assessing Your Stock Trailer Electrical Needs

Stock trailers endure an extremely harsh operating environment compared to standard utility trailers. Constant exposure to moisture, road salt, and corrosive livestock manure causes factory wiring to degrade rapidly over time. Before pulling a single wire, map out your trailer’s layout and determine exactly what circuits you need to run.

A standard livestock trailer setup requires dedicated circuits for rear stop, tail, and turn lights, alongside side marker clearance lights. Heavy-duty applications also require power feeds for electric brakes, internal dome lights, and emergency breakaway systems. Counting every fixture point upfront ensures you purchase kits with adequate wire gauge and connection terminals.

• 4-Way Flat Connectors: Best for light, unbraked single-axle stock trailers needing basic exterior lighting.
• 7-Way RV Blade Plugs: Essential for tandem-axle livestock trailers requiring electric brake control and auxiliary interior lighting power.
• Conduit Protection: Essential for shielding main wiring runs from sharp frame edges and animal hoof damage.

Upgrading to modern weather-sealed components prevents frustrating voltage drops and intermittent ground failures. Investing time in planning your circuit layout saves hours of tedious field repairs down the road.

LED Trailer Light Kit – Optronics TLL160RK Waterproof Kit

Rear tail lights are your primary defense against rear-end collisions when hauling stock on dark country roads. The Optronics TLL160RK kit replaces vulnerable incandescent fixtures with fully sealed, high-efficiency LED units. These lights handle intense road vibration far better than traditional filament bulbs, ensuring reliable operation over rough pasture lanes.

This comprehensive kit features sonically welded waterproof housings that prevent rain and washdown water from creeping inside the circuitry. The red acrylic lenses house bright LED arrays for stop, turn, and tail functions, alongside an integrated license plate illuminator bracket. Included in the box is a full 20-foot wiring harness with pre-molded connectors designed for trailers under 80 inches wide.

• Durable Construction: Impact-resistant plastic housings built for rough livestock farm use.
• Low Current Draw: LEDs draw a fraction of the amperage required by standard incandescent bulbs.
• Complete Hardware Set: Includes mounting studs, wire frame clips, and frame grounding rings.

When installing, make sure to mount the lights securely using the rear threaded studs to prevent loosening from road movement. While the wiring harness is complete for small stock trailers, longer tandem-axle livestock trailers may require extra wire lengths to reach the front tongue. This kit is ideal for owners restoring light-to-medium stock trailers who want long-lasting LED visibility without buying piecemeal parts.

7-Way Wiring Harness – Bargman 50-87-007 Junction Box

Connecting a tow vehicle to a multi-circuit livestock trailer requires a robust central junction point. The Bargman 50-87-007 harness simplifies this task by pairing a molded 7-way blade plug with a clean weather-resistant terminal box. It organizes main power, brake wires, lighting channels, and auxiliary feeds into one tidy, serviceable location.

The heart of this system is the heavy-duty 7-gang terminal junction box, built from high-impact ABS plastic. Each terminal stud is clearly color-coded, making circuit isolation and future electrical troubleshooting fast and simple. The 8-foot commercial-grade cable features molded copper terminals protected by a tough, weather-resistant outer jacket that remains flexible in freezing temperatures.

• Weather-Sealed Grommets: Multiple rubber port plugs prevent dust, road spray, and insects from entering the box.
• Color-Coded Circuitry: Simplifies wiring standard trailer functions like electric brakes and auxiliary dome lights.
• Strain Relief Bracket: Secures the main lead cable to prevent wire strain when turning sharp corners.

Position the junction box high inside the trailer tongue structure where it remains shielded from direct tire spray and hitch movement. Ensure each terminal nut is torqued down snugly over ring terminals to prevent loose connections under vibration. This harness is a must-have upgrade for tandem-axle stock trailers with electric brakes, though it is unnecessarily complex for small, single-axle farm utility boxes.

Stock Trailer Light Kit – MaxxHaul 70420 Towing Set

For basic stock trailers that stay strictly on the farm or handle short daytime trips to local pastures, traditional incandescent kits remain a practical choice. The MaxxHaul 70420 set offers a direct, low-cost replacement for damaged surface-mount tail lights. It provides standard stop, turn, and tail light functions without requiring complex harness alterations.

Each light unit utilizes corrosion-proof acrylic lenses mounted on durable molded plastic backing plates designed to resist rust. The kit contains two surface-mount combination tail lights, a full Y-harness wire loom, frame clips, and mounting hardware. Acrylic snap-on lenses allow for easy bulb changes in the field using standard automotive replacement bulbs.

• Broad Compatibility: Standard 12V operation works seamlessly with older farm truck electrical systems.
• Integrated Side Markers: Lenses feature built-in side reflex reflectors for improved lateral visibility.
• Low Initial Cost: Provides complete legal road lighting at a fraction of the cost of premium systems.

Because these units use open-backed housings with snap-on lenses, water can enter during high-pressure pressure washing or deep water crossings. Ensure wire splices behind the mounting plate are protected with heat-shrink tubing to avoid rapid corrosion. This set is best suited for budget-conscious farmers maintaining older farm-dedicated stock trailers, but is not recommended for trailers frequently washed down inside.

Interior Livestock Light – Blazer C542G Dome Light Kit

Loading skittish cattle or goats before sunrise is dangerous work without proper interior illumination. The Blazer C542G kit installs directly onto internal trailer ribs to flood the stock area with clear light. Bright interior lighting reduces animal stress during loading and lets you check floor conditions quickly during transport.

The light features a heavy-duty polycarbonate lens designed to withstand accidental strikes from stock horns, equipment, or high-pressure spray. It incorporates a built-in toggle switch directly on the housing base, allowing independent control right at the trailer side door. The low-profile surface-mount design prevents the fixture from snagging on low-hanging gear or animal heads.

• Impact-Resistant Body: Heavy housing engineered to handle tough farm conditions.
• Direct 12V Hookup: Draws power directly from the 7-way junction box auxiliary feed.
• Clear Illumination: White interior flood beam illuminates floor corners without blinding livestock.

Mount this fixture high along the roof radius out of direct animal reach, running the power feed inside protective split conduit. Ensure the light base has a continuous ground connection to the steel frame, or run a dedicated ground wire back to the front junction box. It is an essential addition for producers hauling stock early in the morning, but adds unnecessary wiring for simple daytime-only transport needs.

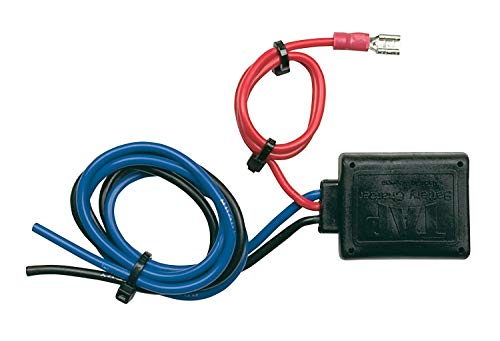

Breakaway Switch Kit – Hopkins 20001 Breakaway System

A functioning emergency breakaway switch is both a crucial safety feature and a legal requirement for stock trailers equipped with electric brakes. If the trailer unhitches accidentally at road speeds, this system automatically applies the trailer’s electric brakes to bring it to a safe stop. The Hopkins 20001 provides a complete, self-contained solution in one heavy-duty assembly.

This kit features a weatherproof battery box with built-in LED charger indicators that display battery condition at the press of a button. Inside sits a rechargeable 12V 5Ah battery connected to a high-impact nylon breakaway switch and pull cable. The integrated battery charger tops off the internal battery directly from your tow vehicle’s 12V auxiliary line while driving.

• Visual Battery Tester: Green, yellow, and red LEDs instantly show charge status before pulling onto the highway.
• Rust-Proof Housing: Tough poly case protects the internal battery from manure fumes and road splatter.
• Heavy Cable Cable: High-tensile steel lanyard clips securely to the tow vehicle hitch frame.

Mount the breakaway box firmly to the trailer tongue frame, ensuring the pull cable has an unobstructed path straight to the truck hitch. Test the pull pin regularly to clear out dirt and verify that the internal battery holds a full charge. This kit is required gear for any livestock trailer running electric brakes, but serves no function on unbraked single-axle light trailers.

Submersible Light Kit – CZC Auto Waterproof Tail Light

Stock trailers require frequent, thorough washdowns to remove corrosive manure, bedding, and dirt from the trailer floor. Standard trailer lights often fail when high-pressure water forces its way past cheap lens gaskets. The CZC Auto Submersible kit uses fully encapsulated circuitry to withstand repeated spraying and wet driving conditions without shorting out.

These lights are built with an IP68 fully sealed potted encapsulation process, meaning the internal LED electronics are encased in solid resin. Water cannot penetrate the inner chamber even when submerged or blasted with a farm hose. The kit includes two multi-function tail lights, a license plate mounting bracket, frame mounting hardware, and standard wiring leads.

• Solid Resin Encapsulation: Shields internal circuit boards completely from moisture and corrosion.
• Brass Wiring Terminals: Ensures superior conductivity and resistance to green copper corrosion.
• Universal Bolt Pattern: Fits standard 2-inch center trailer mounting studs for fast replacement.

While the light housings are completely impervious to water, your wire connection points behind the lights remain vulnerable. Always join the light leads to your trailer harness using adhesive-lined heat-shrink butt splices to maintain waterproof integrity. This kit is perfect for dedicated livestock haulers who pressure wash their equipment after every run.

Junction Box Wiring Kit – Fastway Zip 80-00-2170 Cable

Standard steel breakaway cables frequently drag on the pavement, rust, fray, or wrap around the hitch jack handle. A damaged breakaway cable can fail during a uncoupling emergency, or accidentally trip your trailer brakes while turning. The Fastway Zip cable replaces traditional steel lanyards with an organized, coiled spring design that stays elevated off the tongue.

The key feature of this kit is its coiled UV-resistant spring cable, which stretches smoothly during tight turns and retracts automatically when straight. The inner core consists of woven high-tensile steel wrapped in protective vinyl, terminating in a quick-connect stainless steel carabiner clip. It includes a fresh breakaway switch assembly for a total wiring refresh at the tongue.

• No Dragging or Tangling: Coiled design keeps the cable safely off the ground and away from road debris.
• High-Strength Carabiner: Provides fast, secure attachment to the tow vehicle hitch receiving eyelet.
• Standard Switch Fit: Mounts easily to standard trailer tongue brackets using basic hand tools.

Install the switch box using stainless steel hardware to prevent rust stains on your trailer frame tongue. Ensure the coiled length matches your tow vehicle hitch setup—it should have slight slack when making full 90-degree turns without pulling the pin. This cable is ideal for any farmer tired of replacing frayed breakaway cords, but is only a cord replacement rather than a full wiring loom.

Marker Light Harness – Peterson V168R Clearance Kit

Trailers wider than 80 inches require dedicated front, side, and rear clearance marker lights to mark their width for oncoming night traffic. Stock trailers feature broad steel corner posts and fenders that need clear, visible side identification. The Peterson V168R kit offers simple, rugged clearance lighting that mounts easily to tubular or sheet steel frames.

This kit features a single-wire self-grounding base structure topped with a tough, snap-on acrylic reflex lens. The low-profile design sits flush against trailer side rails, reducing the chance of catching tree branches along farm lanes. Each light assembly includes a bright single-filament bulb and a heavy-duty mounting base engineered for long service life.

• Reflective Lens Mold: Doubles as a side reflector even when the tow vehicle lights are turned off.
• Single-Wire Installation: Simplifies wire routing along side frame channels.
• Easy Lens Removal: Snap-off cover makes field bulb replacement fast without tools.

Because these lights use the mounting screw to complete the electrical ground circuit, scrape away paint and rust around the hole to clean bare metal before installing. Apply a dab of dielectric grease to the screw threads to prevent green corrosion from breaking the ground connection later. This kit is essential for wider stock trailers needing extra marker coverage, but is unnecessary for narrow, single-animal transport boxes.

Proper Wire Routing Tips for Livestock Trailers

Careless wire routing is the leading cause of electrical short circuits on livestock trailers. Exposed wires running along frame rails are subject to constant gravel blast, hoof strikes through floor gaps, and severe chemical degradation from animal urine. Taking extra time to shield your wire harness during installation prevents mid-haul electrical failures.

• Run main wiring leads inside protective split-loom conduit or enclosed frame tubing wherever possible.
• Use rubber-insulated P-clamps screwed into the frame, avoiding cheap plastic zip ties that snap in cold weather.
• Keep harness paths high along side walls or inside frame channels, well clear of moving suspension components and manure drain paths.

Always pass wires through rubber grommets whenever routing through drilled holes in steel frame crossmembers. Unprotected wires vibrating against sharp metal edges will cut through vinyl insulation within a single season of pasture hauling. Secure the harness every 12 to 18 inches to prevent sagging wires from snagging on pasture brush or road obstacles.

Ensuring Proper Grounding to Prevent Wiring Faults

Intermittent lights, dim LEDs, and unexpected signal failures are almost always caused by a poor electrical ground. Relying on the trailer hitch ball to provide a ground path is a common mistake that leads to flickering lights on rough roads. Every lighting circuit requires a clean, continuous ground wire return path to function reliably.

[Tow Vehicle Plug] ---> [7-Way Junction Box] ---> [Dedicated White Ground Wire] | +-----------------+-----------------+ | | [Left Light Ground] [Right Light Ground]

Instead of grounding each fixture to rusty trailer frame steel, run a dedicated main ground wire from the front 7-way junction box down the entire length of the trailer. Tap individual light grounds into this main return line using sealed splice connectors. This creates an isolated circuit that remains unaffected by surface frame rust, paint layer insulation, or frame corrosion.

When frame grounding is unavoidable, scrub the mounting surface down to shiny bare steel using a wire wheel on a grinder. Fasten ring terminals securely with star lock washers that bite through the metal, then coat the entire finished junction with dielectric grease or rubberized undercoating to seal out moisture.

Maintaining Your Trailer Lights for Year-Round Use

Livestock trailer electrical systems demand regular preventive maintenance to survive winter storage and frequent wet pasture runs. Taking ten minutes to inspect your wiring after severe farm work prevents unexpected highway breakdowns when you need to haul stock in a hurry.

• Wash down trailer light fixtures thoroughly after hauling stock to rinse away corrosive manure and mud buildup.
• Apply a liberal layer of dielectric grease into plug terminals, light sockets, and junction box posts to repel moisture.
• Inspect breakaway switch pull cables for fraying, and check internal switch battery voltage levels before every trip.

Before backing down the drive, run through a quick pre-trip light check with a partner or check reflective beam patterns against a barn wall. Ensure turn signals, stop lights, and side markers flash brightly without flickering when the tongue is moved. Keeping extra heat-shrink connectors, spare bulbs, and electrical tape in your truck toolbox keeps your rig safe and road-legal all season long.

Outfitting your stock trailer with sealed lights, robust wire routing, and proper grounding protects your livestock investment on every haul. High-quality electrical kits eliminate the frustration of flickering lights and prevent dangerous roadside breakdowns. With the right components installed correctly, your trailer stays safe, dependable, and ready for work year-round.
