8 Hardware Items for Installing Barn Door Sliding Tracks

A poorly hung sliding barn door will quickly turn a simple morning chore into an exhausting wrestling match against stuck rollers and warped timber. Getting the installation right requires matched, heavy-duty hardware built to withstand freezing winter drafts, heavy wind gusts, and daily livestock barn traffic. Investing in the right sliding track components ensures your doors glide smoothly with one finger, keeping your outbuildings secure and accessible through every season.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Preparing Your Barn Framework for Sliding Tracks

A sliding door system is only as reliable as the timber supporting it. Siding boards and trim cannot handle the dynamic sheer weight of a rolling 200-pound door. Anchor a structural 2×6 or 2×8 ledger board directly into the wall studs or heavy corner posts using structural fasteners.

Check the entire run for plumb and level, extending past the door opening into the travel zone. Any crown or bow in the ledger will transfer straight into the metal track, causing the door to bind or drift open on its own.

Flash the top edge of the ledger board before mounting the rail. Exterior water infiltration behind the track leads to hidden wood rot, which loosens mounting screws over time. A clean, protected mounting surface guarantees years of hassle-free operation.

Calculating Track Length and Door Weight Limits

Track length calculations must account for the full travel path of the door slab. The standard rule requires track length equal to at least twice the door width. This ensures the door clears the opening completely, preventing farm equipment and livestock from snagging the door edges.

• Lightweight framed doors (1×4 framing with metal siding): 100–150 lbs
• Standard solid lumber doors (2×4 framing with pine boards): 200–350 lbs
• Heavy hardwood or insulated utility doors: 400+ lbs

Always calculate weight based on wet lumber weights rather than dry specs. Exterior doors absorb atmospheric moisture and gain significant weight during wet seasons. Over-specifying your hardware weight rating prevents roller failure and extends the life of the entire system.

Galvanized Box Rail – National Hardware Track

The track serves as the structural foundation of the sliding system, shielding the internal rolling gear from outdoor elements. Open flat tracks collect snow, ice, and debris, leading to frequent derailments. Enclosed box rails protect the rolling surface, making them the standard choice for functional outbuildings.

+-------------------------------------------------------------+ | NATIONAL HARDWARE BOX RAIL | | * Heavy-duty 16-gauge galvanized steel construction | | * Enclosed profile blocks rain, snow, bird nests, and dirt | | * Continuous bottom slot prevents moisture pooling | +-------------------------------------------------------------+

The National Hardware Galvanized Box Rail stands out for its rigidity and weather-resistant finish. The continuous downward-facing slot allows smooth roller travel while preventing water from sitting inside the channel. Its heavy-gauge steel profile resists bowing under substantial hanging loads.

Mount this rail with brackets spaced no more than 24 inches apart. It comes in standard 6-, 8-, and 10-foot lengths that can be joined cleanly with matching splice brackets. This track is built specifically for exterior barns, equipment sheds, and livestock shelters where weather protection is critical.

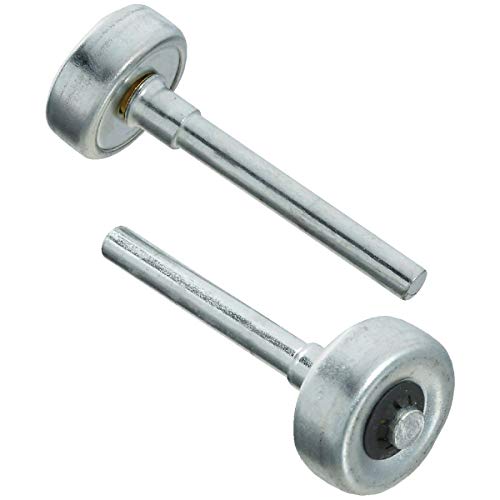

Trolley Hanger – Stanley National Roller Assembly

Trolley hangers carry the entire weight of the door slab and translate that dead weight into smooth lateral motion. Cheap rollers with nylon wheels crack under cold temperatures and heavy farm use. High-grade roller assemblies use durable steel bearings designed for continuous outdoor cycles.

+-------------------------------------------------------------+ | STANLEY NATIONAL ROLLER ASSEMBLY | | * Heavy-duty steel wheels with low-friction bearings | | * Built-in vertical and lateral adjustment threaded bolts | | * High load capacity up to 450 lbs per pair | +-------------------------------------------------------------+

The Stanley National Roller Assembly features robust steel wheels and durable bearings that roll cleanly inside enclosed box tracks. The integrated threaded pendant bolt allows quick vertical and lateral adjustments after the door is hung. This adjustment feature lets you level the door as timbers settle over time.

Always install two trolley assemblies per door slab. Ensure the mounting apron or bolt is secured through the door’s internal structural frame, not just the outer cladding. This roller is ideal for heavy wood and steel-framed barn doors, though it is not compatible with open flat-bar rail systems.

Splice Bracket – Richards-Wilcox Track Bracket

When covering wide door openings, two lengths of box track must be joined seamlessly. A standard mounting bracket cannot hold two track ends flush together under load. A dedicated splice bracket locks the rail ends in rigid alignment, preventing roller snags at the joint.

The Richards-Wilcox Track Bracket in the splice configuration provides exceptional clamping force across rail joints. Made from heavy-gauge stamped steel, it grips both track segments securely while fastening directly into the structural ledger board. It eliminates track sag and joint separation under heavy door movement.

• Key Mounting Consideration: Tighten mounting lag screws evenly across the bracket.
• Alignment Check: Ensure the internal track lips sit perfectly flush before running trolleys across the joint.

This bracket is essential for any multi-rail setup spanning openings wider than eight feet. It is not necessary for small openings utilizing a single continuous piece of track.

Track End Cap – National Hardware Heavy Duty Stop

Sliding barn doors carry significant momentum when pushed open or caught by high winds. Without a rigid mechanical stop, trolley hangers can shoot out the end of the rail, dropping the heavy door to the ground. A heavy-duty stop secures the rail ends while keeping pests and nesting birds out of the track.

The National Hardware Heavy Duty End Stop combines track closure with an internal impact bumper. The bumper absorbs the kinetic force of the trolley hanger body rather than letting the axle bolt strike bare metal. Its galvanized steel construction prevents rust and resists impact deformation over years of hard use.

Fasten this stop firmly at both ends of the track run after the door is mounted and aligned. Check the stop clearance to ensure the trolley body makes solid contact before the door slab hits any exterior wall obstructions. It is a critical safety component for every exterior track installation.

Stay Roller – Stanley Heavy-Duty Wall Guide

A sliding door supported only from the top will swing outward like a sail in gusty winds. Bottom stay rollers keep the door pinned tight against the building wall, maintaining alignment without dragging on the ground. A rugged, wall-mounted guide avoids the dirt and ice buildup associated with in-ground floor channels.

+-------------------------------------------------------------+ | STANLEY HEAVY-DUTY WALL GUIDE | | * Heavy cast frame with smooth-spinning guide wheel | | * Broad horizontal adjustment slot for varying door sizes | | * Wall- or post-mount design elevated above ground debris | +-------------------------------------------------------------+

The Stanley Heavy-Duty Wall Guide Stay Roller offers the strength needed to hold heavy doors against driving winds. The cast wheel turns freely, guiding the bottom edge of the door without gouging the wood. Its slotted mounting bracket allows precise adjustment to accommodate door thicknesses up to 3 inches.

Anchor the stay roller into a structural post or concrete foundation pad just beyond the door opening. Set the roller position to leave a 1/8-inch clearance gap against the door face to prevent friction binding. This guide is built for exterior agricultural buildings and is not intended for light interior pocket doors.

Structural Lag Screws – GRK RSS Rugged Screws

Standard wood screws and drywall fasteners snap under the sheer weight and vibration of sliding barn doors. Heavy structural lag screws are required to anchor ledger boards, track brackets, and stay rollers securely to the building frame. Modern structural screws provide superior holding power without the need for pre-drilling.

The GRK RSS Rugged Structural Screws are engineered from case-hardened steel, delivering high tensile and shear strength. The built-in washer head clamps hardware brackets tightly against timber without sinking into the wood grain. Their specialized exterior coating prevents corrosion when driven into pressure-treated framing lumber.

• Drive Type: Torx (star) drive head prevents bit slippage and stripping.
• Sizing Tip: Use 5/16" x 4" screws to ensure at least 2.5 inches of penetration into structural framing.

Drive these fasteners using a high-torque 18V impact driver. These screws are the best choice for fast, reliable hardware mounting, making standard hex-head lag bolts largely obsolete for this task.

Jam Latch – National Hardware Heavy Duty Latch

Wind vibration and animal pressure will slowly work standard sliding door hooks loose. A dedicated jam latch uses mechanical leverage to pull the door firmly against the jamb, sealing out drafts and eliminating door rattle. It also stops clever livestock from nosing the door open.

+-------------------------------------------------------------+ | NATIONAL HARDWARE HEAVY DUTY JAM LATCH | | * Over-center cam action locks door tight against jamb | | * Heavy-duty steel body with weather-resistant zinc finish | | * Integrated padlock hole for extra farm security | +-------------------------------------------------------------+

The National Hardware Heavy Duty Jam Latch provides dependable holding power using an over-center cam mechanism. As the handle drops, it pulls the door tight into the wooden frame, reducing draft gaps and eliminating wind rattle. The large handle is easy to operate while wearing heavy winter chore gloves.

Mount the base plate to the door jamb and the strike plate to the door frame, ensuring proper alignment across the closing gap. Allow for slight wood expansion by testing the latch tension across both dry and humid seasons. This latch is ideal for exterior barn doors, feed rooms, and equipment bays.

Flush Door Pull – National Hardware Utility Pull

Standard surface-mounted handles stick out and collide with the barn wall when sliding the door fully open. A flush-mounted pull sits recessed into the door framing, allowing the door to slide past posts and walls without interference. It provides a solid grip for opening the door from either side.

The National Hardware Utility Flush Pull offers a clean, low-profile design stamped from durable steel. The deep finger recess provides ample grip leverage to move heavy doors, even with cold hands. Its weather-resistant finish stands up to exterior rain, UV exposure, and heavy use.

• Installation: Requires routing or chiseling a shallow rectangular recess in the door frame.
• Placement: Position at standard handle height (36 to 42 inches from the ground) on the inside face.

This pull is necessary for any installation where the door slides tight against the exterior barn wall. Use surface handles only on the exterior side where wall clearance is not a concern.

Ensuring Proper Track Alignment and Smooth Glide

Take time to verify alignment across the entire assembly before tightening fasteners completely. A minor dip in the ledger board causes the door to roll open or closed on its own. Use a 6-foot carpenter’s level across the top of the box rail to confirm an even, true plane along the entire travel path.

Adjust the trolley pendant bolts to distribute weight evenly between the two hangers. If one trolley carries more weight than the other, the wheels will wear unevenly and drag inside the track channel. Back off or tighten the vertical nuts until the door hangs perfectly plumb and clears the ground by at least one inch.

Run the door through its full travel stroke to test the bottom stay roller clearance. Look for points where the door slab rubs against the wall or binds against the roller guide. Small adjustments made during initial hanging prevent long-term track wear and keep operation effortless.

Seasonal Maintenance Tips for Exterior Farm Doors

Exterior sliding hardware requires routine attention to keep working smoothly against dust, dirt, and winter weather. Farm environments generate chaff and grit that settle inside the track over time.

• Spring Cleaning: Blow out the enclosed box rail with compressed air to remove spiderwebs, bird debris, and dust.
• Lubrication: Spray the internal trolley bearings with a dry silicone or graphite lubricant; never use sticky grease that attracts grit.
• Fastener Check: Inspect ledger lag screws and bracket bolts annually to retorque any fasteners loosened by wind vibration.
• Ground Clearance: Shovel snow and clear mud away from the bottom stay roller before freezing weather locks the door in place.

Keeping the rolling path clean and properly lubricated extends the lifespan of your rollers and protects your framing timbers from unnecessary stress.

Equipping your outbuildings with durable, matched sliding hardware transforms a high-maintenance chore into reliable, effortless operation. Focus on solid ledger anchoring, precise track leveling, and weather-resistant components to keep your sliding barn doors gliding smoothly through decades of farm use.
